PREVOST ALTO Filter/Regulator (FR) Assembly, 0.01 μm, 1/2 in G, Automatic, 12.00 bar
- RS Stock No.:
- 629-761
- Mfr. Part No.:
- KTB CSM3IS
- Brand:
- PREVOST
Subtotal (1 unit)*
£251.72
(exc. VAT)
£302.06
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £251.72 |
*price indicative
- RS Stock No.:
- 629-761
- Mfr. Part No.:
- KTB CSM3IS
- Brand:
- PREVOST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PREVOST | |
| Port Size | 1/2 in G | |
| Product Type | Filter/Regulator (FR) Assembly | |
| Maximum Operating Pressure | 12.00 bar | |
| Maximum Flow Rate | 1500.00L/min | |
| Series | ALTO | |
| Drain Type | Automatic | |
| Filtration Size | 0.01μm | |
| Minimum Operating Temperature | 5.00°C | |
| Maximum Operating Temperature | 50.00°C | |
| Overall Height | 280.00mm | |
| Overall Width | 156.00mm | |
| Standards/Approvals | No | |
| Bowl Material | Aluminium | |
| Select all | ||
|---|---|---|
Brand PREVOST | ||
Port Size 1/2 in G | ||
Product Type Filter/Regulator (FR) Assembly | ||
Maximum Operating Pressure 12.00 bar | ||
Maximum Flow Rate 1500.00L/min | ||
Series ALTO | ||
Drain Type Automatic | ||
Filtration Size 0.01μm | ||
Minimum Operating Temperature 5.00°C | ||
Maximum Operating Temperature 50.00°C | ||
Overall Height 280.00mm | ||
Overall Width 156.00mm | ||
Standards/Approvals No | ||
Bowl Material Aluminium | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

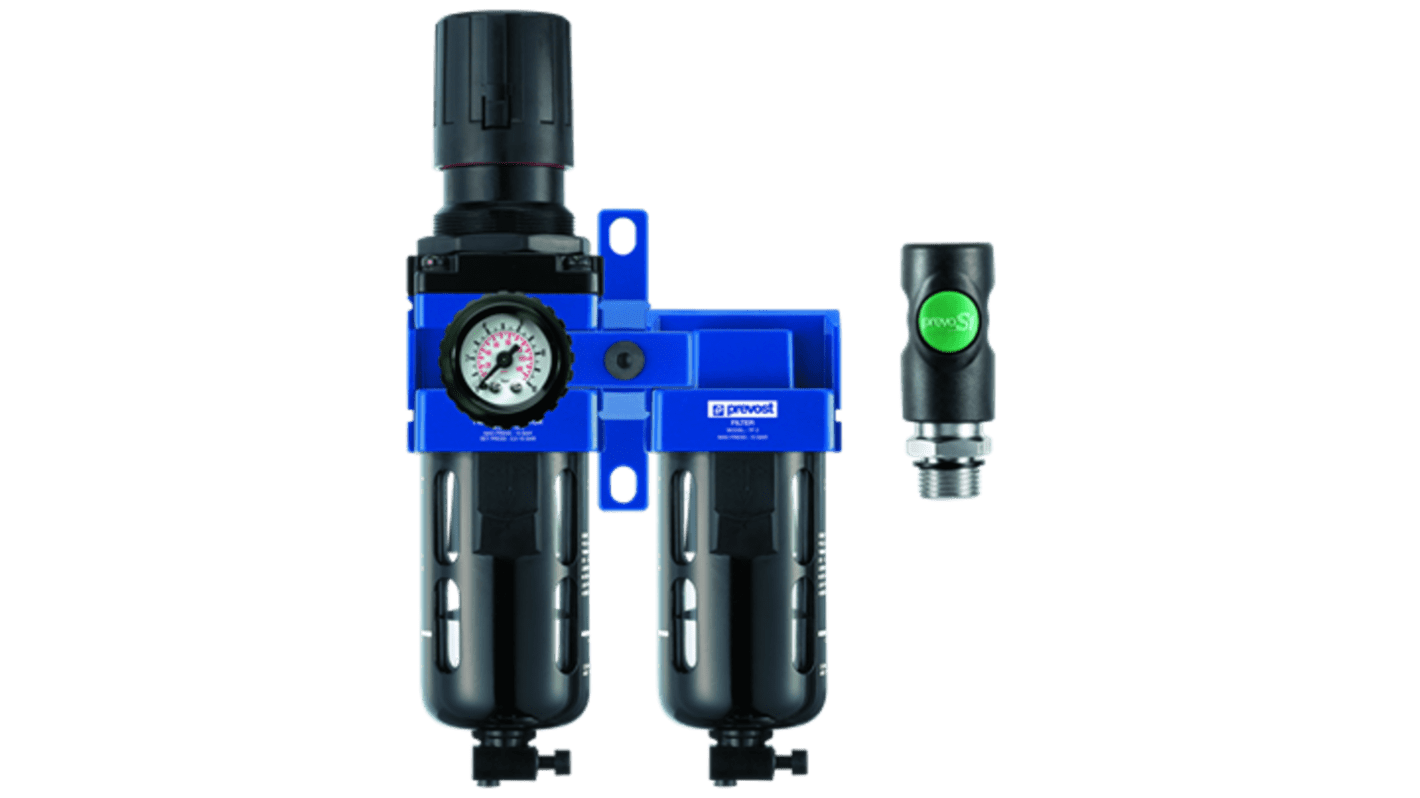

The PREVOST Submicronic Filter Set with Regulator and Gauge is designed for efficient air filtration and pressure control. It ensures clean and dry compressed air for optimal tool performance. The PREVOS1 Quick Release Quick Coupler allows for fast and secure connections, enhancing workflow and reducing downtime.
12 bar operating pressure
G1/2 female thread
