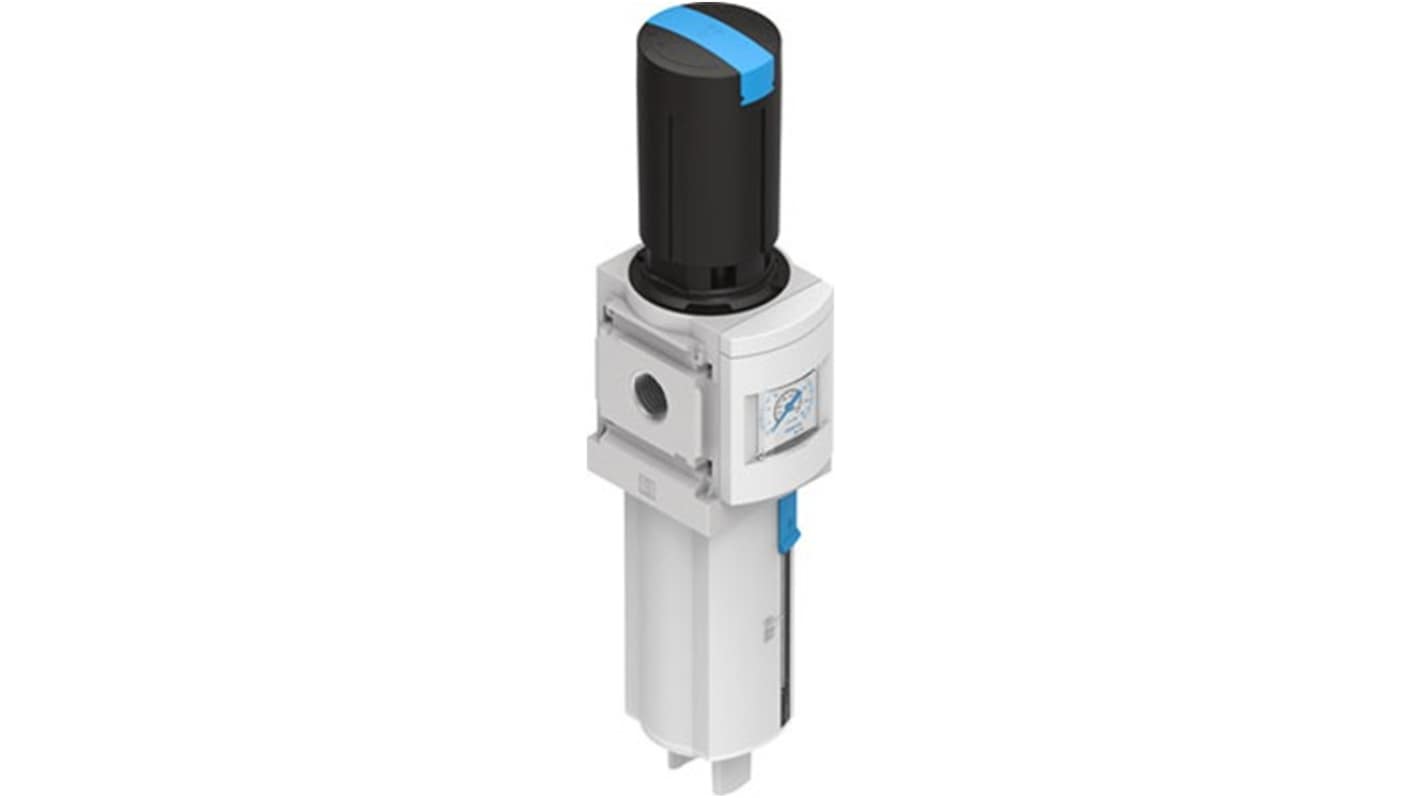

Festo MS6 Filter Regulator, 40 μm, 1/2 in G, Manual, 20 bar, MS6-LFR-1/2-D6-E-R-M-RG-AS
- RS Stock No.:
- 351-574
- Mfr. Part No.:
- MS6-LFR-1/2-D6-E-R-M-RG-AS
- Brand:
- Festo
Subtotal (1 unit)*
£91.24
(exc. VAT)
£109.49
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 6 unit(s) shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £91.24 |
*price indicative
- RS Stock No.:
- 351-574
- Mfr. Part No.:
- MS6-LFR-1/2-D6-E-R-M-RG-AS
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Port Size | 1/2 in G | |
| Product Type | Filter Regulator | |
| Maximum Operating Pressure | 20 bar | |
| Maximum Flow Rate | 6200L/min | |
| Series | MS6 | |
| Drain Type | Manual | |
| Filtration Size | 40μm | |
| Overall Length | 309.7mm | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 50°C | |
| Overall Width | 62mm | |
| Standards/Approvals | RoHS, VDMA24364-B1/B2-L | |
| Overall Height | 77mm | |
| Model Number | MS6-LFR-1/2-D6-E-R-M-RG-AS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Port Size 1/2 in G | ||
Product Type Filter Regulator | ||
Maximum Operating Pressure 20 bar | ||
Maximum Flow Rate 6200L/min | ||
Series MS6 | ||
Drain Type Manual | ||
Filtration Size 40μm | ||
Overall Length 309.7mm | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 50°C | ||
Overall Width 62mm | ||
Standards/Approvals RoHS, VDMA24364-B1/B2-L | ||
Overall Height 77mm | ||
Model Number MS6-LFR-1/2-D6-E-R-M-RG-AS | ||
- COO (Country of Origin):
- HU
The Festo Filter Regulator is designed to optimise your pneumatic systems, ensuring a clean and consistent air supply. Combining functionality with precision, this product excels in managing output pressure while effectively filtering particles down to 40 μm. The robust yet lightweight design offers flexibility in mounting, making it suitable for various installations. With a maximum operating pressure of 2 MPa and a consistent output pressure, it meets diverse operational requirements. This filter regulator includes a pressure gauge, providing real-time monitoring of your system's performance. Ideal for demanding applications, it features a manual condensate drain for ease of maintenance, ensuring uninterrupted operation across a wide range of environments.
Rotary knob with detent actuator for easy adjustments
Vertical mounting with a tolerance of +/-5° for versatile installation
High-grade filtration capabilities ensuring air purity
Durable plastic bowl guard for safety and longevity
Robust construction including die-cast aluminium housing
Compatibility with inert gases for diverse application needs
Temperature resilience handles ambient conditions from -10 °C to 60 °C
RoHS-compliant materials ensure environmental safety
