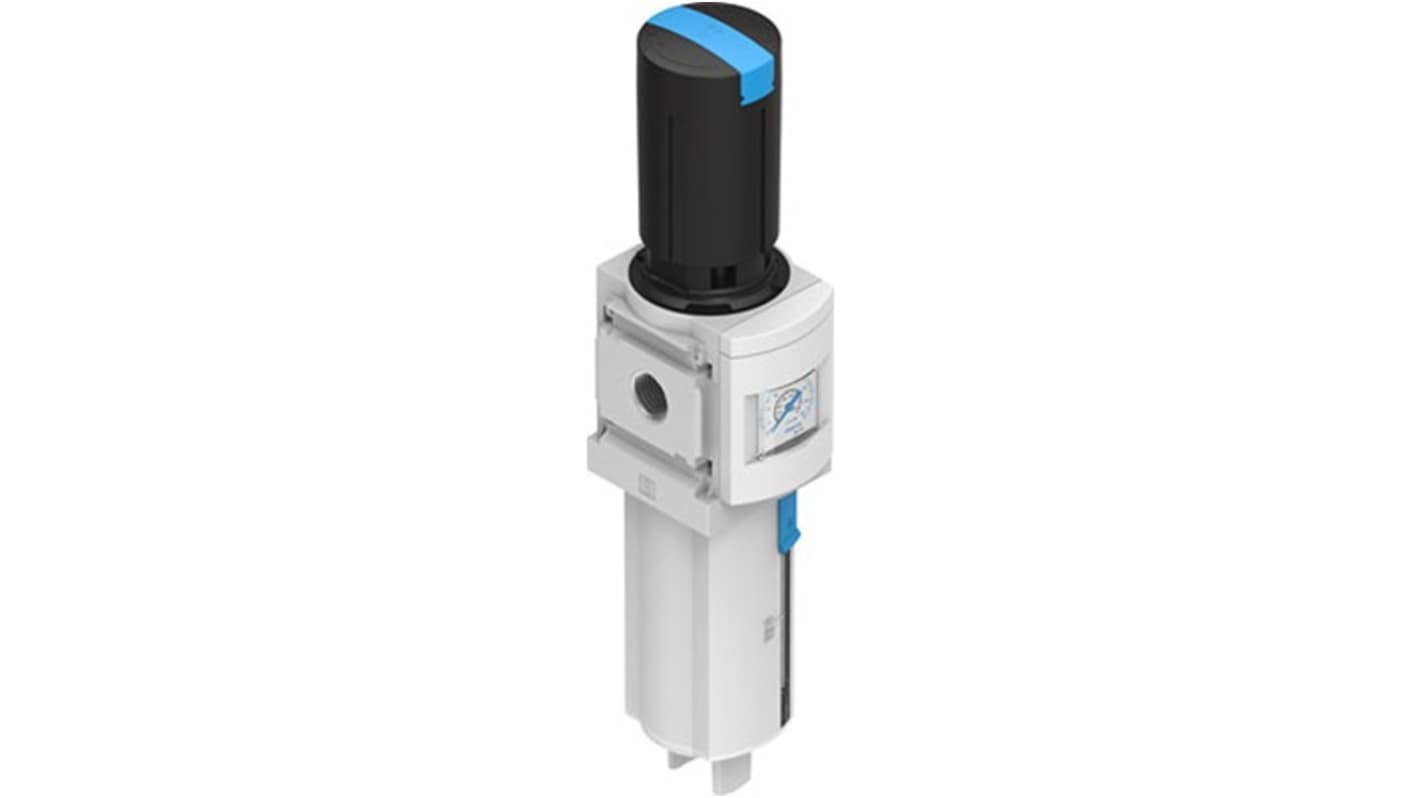

Festo MS6 Filter Regulator, 5 μm, 1/2 in G, Automatic, 10 bar, MS6-LFR-1/2-D6-C-R-V-RG-AS-Z
- RS Stock No.:
- 351-571
- Mfr. Part No.:
- MS6-LFR-1/2-D6-C-R-V-RG-AS-Z
- Brand:
- Festo
Subtotal (1 unit)*
£123.61
(exc. VAT)
£148.33
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £123.61 |
*price indicative
- RS Stock No.:
- 351-571
- Mfr. Part No.:
- MS6-LFR-1/2-D6-C-R-V-RG-AS-Z
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Filter Regulator | |
| Port Size | 1/2 in G | |
| Maximum Flow Rate | 5600L/min | |
| Maximum Operating Pressure | 10 bar | |
| Series | MS6 | |
| Drain Type | Automatic | |
| Filtration Size | 5μm | |
| Overall Length | 309.7mm | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 50°C | |
| Overall Height | 77mm | |
| Standards/Approvals | RoHS, VDMA24364-B1/B2-L | |
| Overall Width | 62mm | |
| Model Number | MS6-LFR-1/2-D6-C-R-V-RG-AS-Z | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Filter Regulator | ||
Port Size 1/2 in G | ||
Maximum Flow Rate 5600L/min | ||
Maximum Operating Pressure 10 bar | ||
Series MS6 | ||
Drain Type Automatic | ||
Filtration Size 5μm | ||
Overall Length 309.7mm | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 50°C | ||
Overall Height 77mm | ||
Standards/Approvals RoHS, VDMA24364-B1/B2-L | ||
Overall Width 62mm | ||
Model Number MS6-LFR-1/2-D6-C-R-V-RG-AS-Z | ||
- COO (Country of Origin):
- HU
The Festo Filter Regulator revolutionises air quality control, combining precision with reliability for optimal performance in pneumatic systems. Designed for versatility, it caters to a wide range of applications from industrial machinery to food industry requirements. The compact and robust design ensures ease of installation, whether mounted front panel or inline. With features like a manual condensate drain and an effective filtration grade, it promises to maintain operational efficiency while safeguarding against contamination. The user-friendly pressure gauge allows operators to monitor performance seamlessly, ensuring that the system remains within the desired pressure range. This filter regulator is not just a component; it is a guarantee of consistent quality and peace of mind in demanding environments.
Rotary knob actuator provides easy control and adjustment
Vertical mounting compatibility ensures flexible installation options
Durable plastic bowl guard enhances safety and reliability
Fully automatic condensate drain minimizes maintenance efforts
Versatile pneumatic connection ports accommodate various setups
RoHS compliant materials ensure environmental safety
Temperature adaptability allows for use in a wide range of conditions
