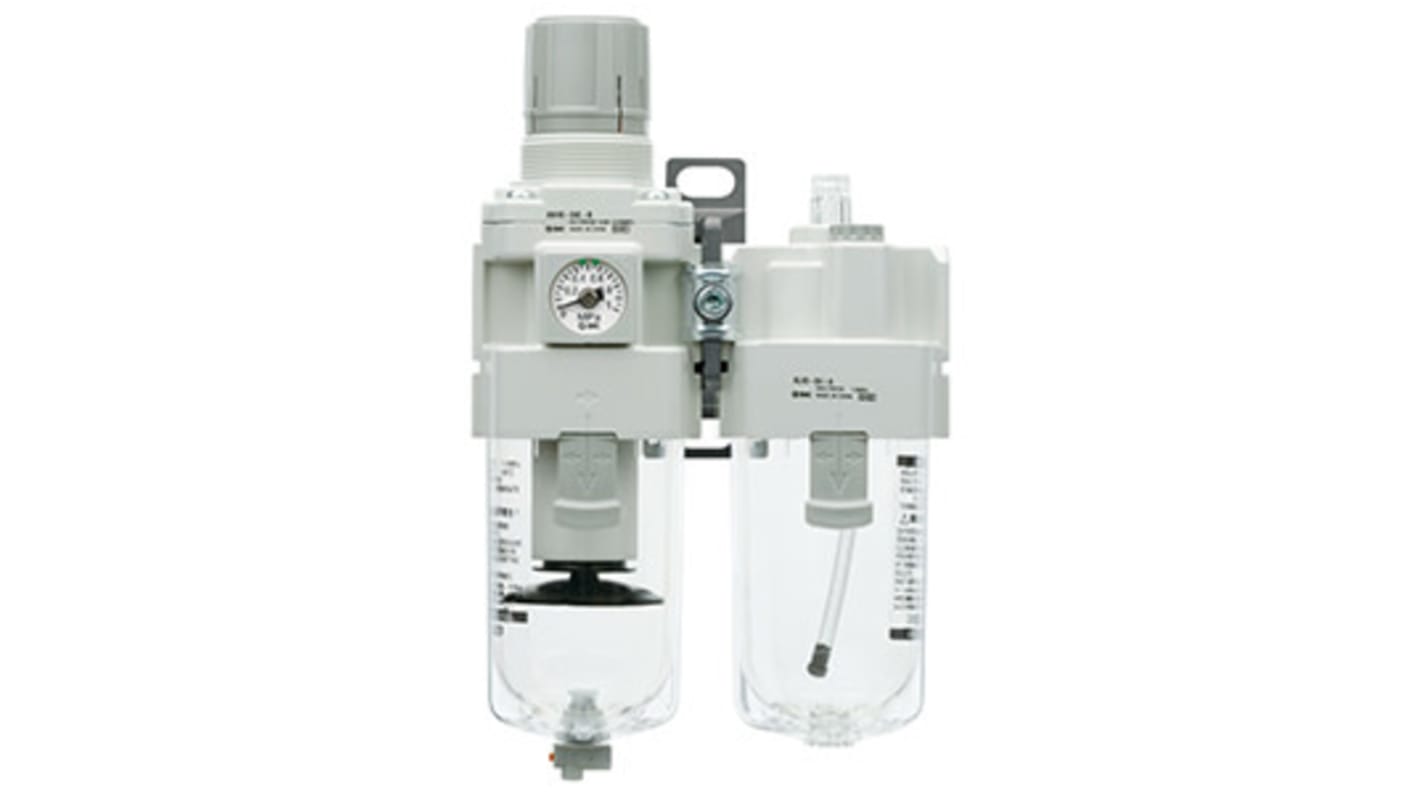

SMC G 1/8 FRL, 5μm Filtration Size - Without Pressure Gauge
- RS Stock No.:
- 885-5851
- Mfr. Part No.:
- AC20A-F01-B
- Brand:
- SMC
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£53.29
(exc. VAT)
£63.95
(inc. VAT)
- RS Stock No.:
- 885-5851
- Mfr. Part No.:
- AC20A-F01-B
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Port Connection | G 1/8 | |
| Integrated Pressure Gauge | Without Pressure Gauge | |
| Manufacturer Series | AC20 | |
| Filtration Size | 5µm | |
| Minimum Ambient Operating Temperature | -5°C | |
| Port Connection Thread Size | 1/8in | |
| Port Connection Thread Standard | G | |
| Maximum Operating Pressure | 1 MPa | |
| Proof Pressure | 1.5MPa | |
| Minimum Process Operating Temperature | -5°C | |
| Process Operating Temperature Range | -5 → +60°C | |
| Maximum Ambient Operating Temperature | 60°C | |
| Maximum Pressure Setting | 0.7MPa | |
| Minimum Pressure Setting | 0.05MPa | |
| Bowl Material | Polycarbonate | |
| Ambient Operating Temperature Range | -5 → +60°C | |
| Pressure Setting Range | 0.05 → 0.7MPa | |
| Maximum Process Operating Temperature | 60°C | |
Select all | ||
|---|---|---|
Brand SMC | ||
Port Connection G 1/8 | ||
Integrated Pressure Gauge Without Pressure Gauge | ||
Manufacturer Series AC20 | ||
Filtration Size 5µm | ||
Minimum Ambient Operating Temperature -5°C | ||
Port Connection Thread Size 1/8in | ||
Port Connection Thread Standard G | ||
Maximum Operating Pressure 1 MPa | ||
Proof Pressure 1.5MPa | ||
Minimum Process Operating Temperature -5°C | ||
Process Operating Temperature Range -5 → +60°C | ||
Maximum Ambient Operating Temperature 60°C | ||
Maximum Pressure Setting 0.7MPa | ||
Minimum Pressure Setting 0.05MPa | ||
Bowl Material Polycarbonate | ||
Ambient Operating Temperature Range -5 → +60°C | ||
Pressure Setting Range 0.05 → 0.7MPa | ||
Maximum Process Operating Temperature 60°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
AC20A-AC40A-B Series FRL Assemblies
SMC’s AC-B series of filter regulator lubricators have been redeveloped and feature a double layer, transparent bowl for better level visibility and extended working life. Part of SMC’s modular air prep range the AC-B can be combined with other components such as a soft start valve and mist separators of similar body size to meet the requirements of most air preparation systems. These filter regulator lubricators are available in a selection of body sizes from 10 to 40 with piping from G1/8” to G1/2” (also available as M5x0.8). Various options are available including normally open or normally closed auto-drain function, round or square pressure gauges and panel mounting kits. Ideal for automotive, facility and machine manufacturing, these highly flexible F.R.L. units also feature interchangeable, modular mounting.
