Festo G 3/8 FRL, Automatic Drain, 40μm Filtration Size - With Pressure Gauge

View this category

Subtotal (1 unit)*

£312.11

(exc. VAT)

£374.53

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 9 unit(s) shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£312.11

*price indicative

RS Stock No.:
202-2992
Mfr. Part No.:
LFR-3/8-D-MIDI-KC-A
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Port Connection

G 3/8

Integrated Pressure Gauge

With Pressure Gauge

Drain Type

Automatic

Manufacturer Series

LFR

Filtration Size

40µm

Pressure Gauge Port Size

G 3/8

Minimum Operating Pressure

2bar

Minimum Ambient Operating Temperature

-10°C

Port Connection Thread Size

3/8 in

Port Connection Thread Standard

G

Maximum Operating Pressure

12 bar

Maximum Ambient Operating Temperature

+60°C

Process Operating Temperature Range

-10 → +60°C

Pressure Gauge Port Thread Standard

G

Maximum Process Operating Temperature

+60°C

Maximum Pressure Setting

12bar

Pressure Setting Range

0.5 → 12bar

Pressure Gauge Port Thread Size

3/8 in

Minimum Pressure Setting

0.5bar

Ambient Operating Temperature Range

-10 → +60°C

Bowl Material

Polycarbonate

COO (Country of Origin):
HU

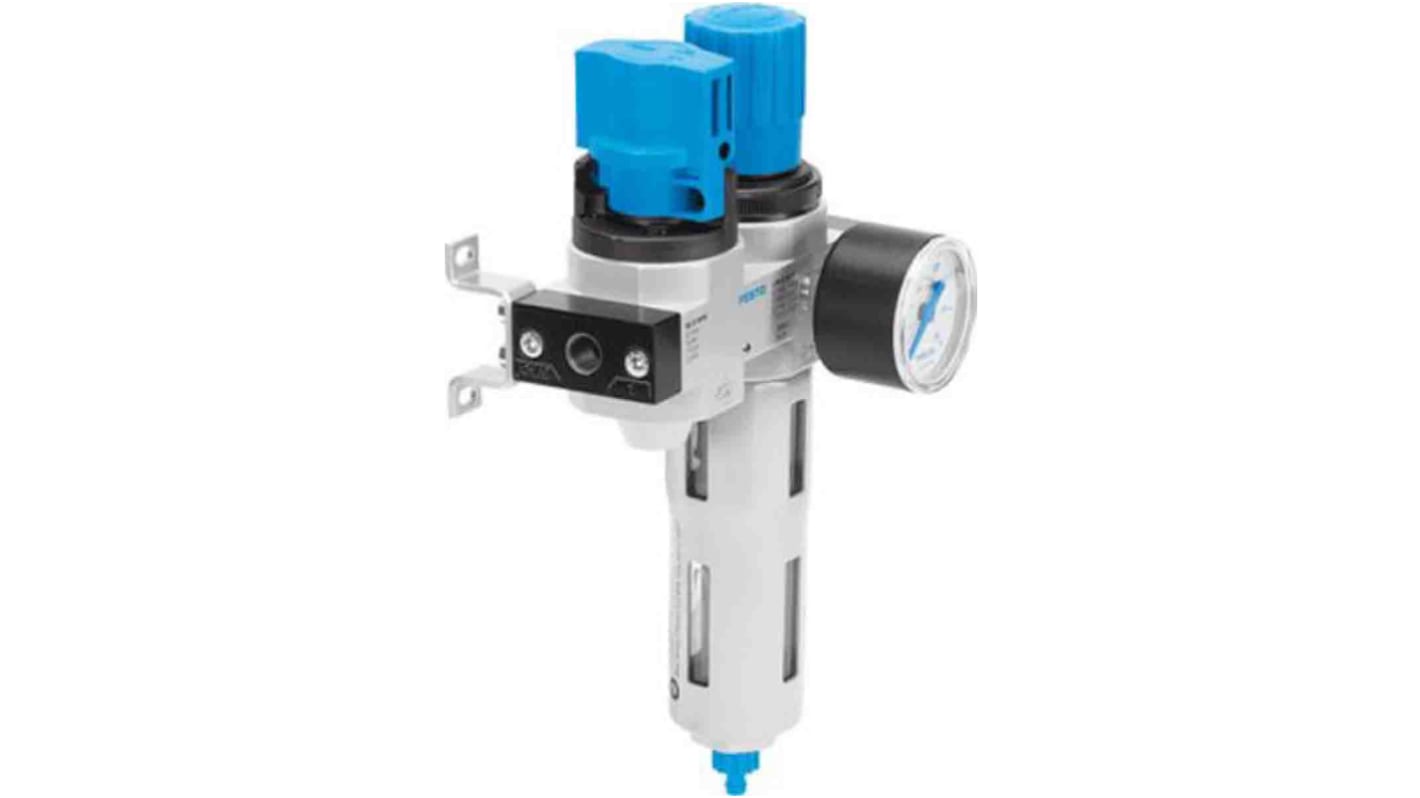

Festo Filter Regulator Lubricator With Automatic Drain, 2 to 12 Bar, 2700L/min Flow Rate - LFR-3/8-D-MIDI-KC-A


Looking for an all-in-one component to keep the air supply in your pneumatic system clean and regulated? Choose this combined filter, regulator and lubricator (FRL) from Festo. It maintains healthy air quality by trapping contaminants like dirt and water vapour in a metal bowl guard. Thanks to its automatic condensate drain, there's no need for manual draining, making it a good choice for use in areas that are difficult to reach. For enhanced control, this unit also controls the pressure level of compressed air. As you can also use it as an on/off valve to control your pneumatic equipment, this is a versatile choice.

• Standard nominal flow rate of 2700L/min (litres per minute) for high-speed filtration
• Filtration grade of 40μm (micrometres) to remove small particles
• Housing made of die-cast zinc for resistance to heat and corrosion
• Pressure gauge for ease of monitoring air pressure levels
• Maximum condensate volume of 43ml (millilitres) for high water retention capacity

Applications


• Medical technology
• HVAC (heating, ventilation and air conditioning) systems

Why should I lubricate a filter regulator?


Lubricating a filter regulator reduces maintenance downtime by preventing friction between the internal components, reducing the risk of premature mechanical wear.
