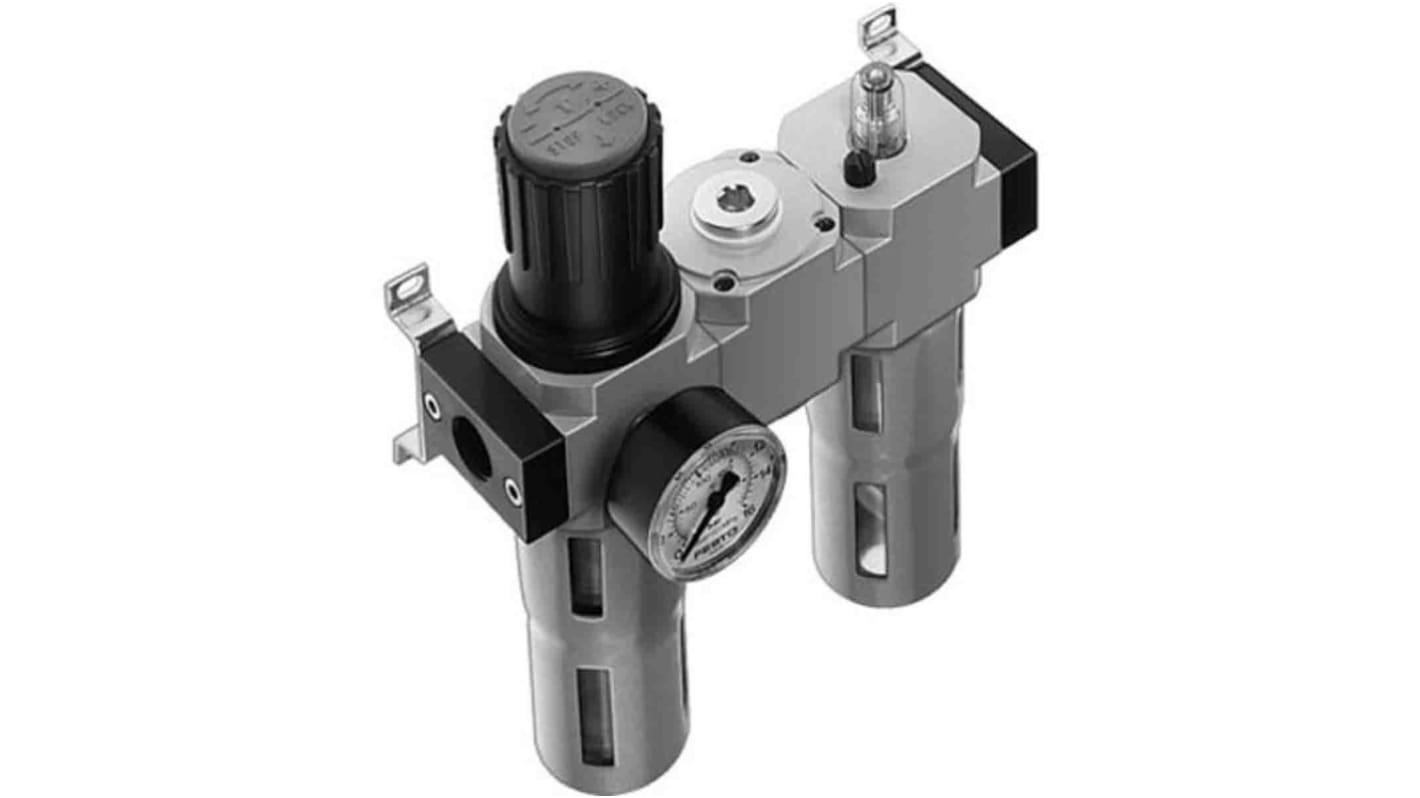

Festo 1/4 in G FRL, Manual Drain, 40 μm Filtration Size Integrated Pressure Gauge
- RS Stock No.:
- 202-2942
- Mfr. Part No.:
- FRC-1/4-D-MINI-KA
- Brand:
- Festo
Subtotal (1 unit)*
£238.36
(exc. VAT)
£286.03
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £238.36 |
*price indicative
- RS Stock No.:
- 202-2942
- Mfr. Part No.:
- FRC-1/4-D-MINI-KA
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | FRL | |
| Port Size | 1/4 in G | |
| Maximum Flow Rate | 980L/min | |
| Integrated Pressure Gauge | Yes | |
| Drain Type | Manual | |
| Series | FRC | |
| Filtration Size | 40μm | |
| Pressure Gauge Port Size | G 1/4 in | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Maximum Operating Pressure | 16 bar | |
| Standards/Approvals | ISO8573-1:2010 | |
| Pressure Setting Range | 0.5 to 12 bar | |
| Bowl Material | Metal | |
| Pressure Gauge Port Thread Standard | G | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type FRL | ||
Port Size 1/4 in G | ||
Maximum Flow Rate 980L/min | ||
Integrated Pressure Gauge Yes | ||
Drain Type Manual | ||
Series FRC | ||
Filtration Size 40μm | ||
Pressure Gauge Port Size G 1/4 in | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Maximum Operating Pressure 16 bar | ||
Standards/Approvals ISO8573-1:2010 | ||
Pressure Setting Range 0.5 to 12 bar | ||
Bowl Material Metal | ||
Pressure Gauge Port Thread Standard G | ||
- COO (Country of Origin):
- HU
The Festo service unit combination of D series has filter-regulator-lubricator combination with metal bowl guard. It has manual condensate drain used rotary knob for actuator lock. Its standard nominal flow rate is 700 l/min.
Ambient temperature -10 to 60 °C
Maximum condensate volume is 22cm3
