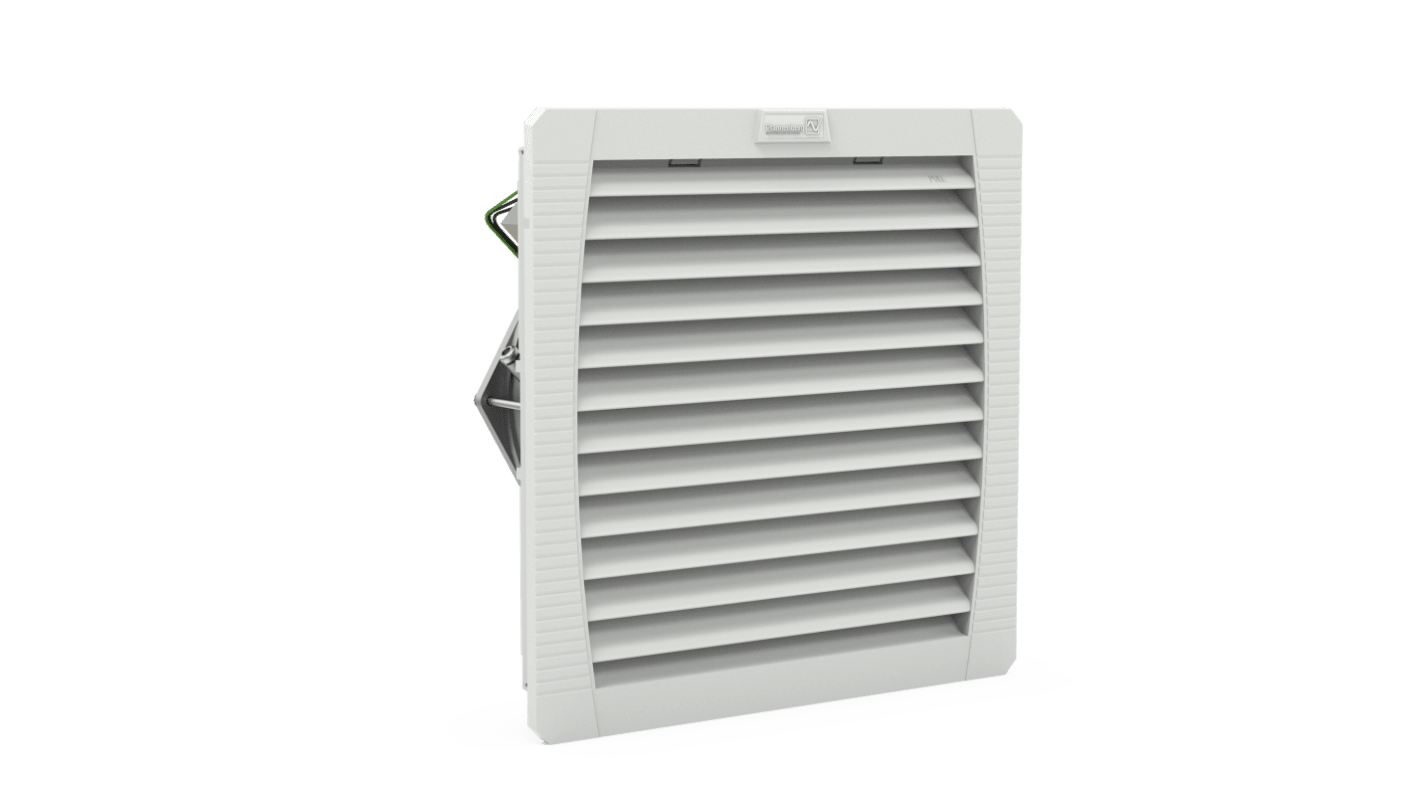

Pfannenberg 11643101055 Series Filter Fan, 230 V ac, ac Operation, 223m³/h Filtered, 223 → 247m³/h Unimpeded,
- RS Stock No.:
- 497-651
- Mfr. Part No.:
- 11643101055
- Brand:
- Pfannenberg
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 497-651
- Mfr. Part No.:
- 11643101055
- Brand:
- Pfannenberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Pfannenberg | |
Unimpeded Air Flow | 223 → 247m³/h | |
Noise Level | 53dB(A) | |
Filtered Air Flow | 223m³/h | |
Input Current | 310mA | |
Input Power Rating | 45W | |
AC or DC Operation | ac | |
Face Dimensions | 252 x 252 x 119mm | |
Supply Voltage | 230 V ac | |
IP Rating | IP54 | |
Series | 11643101055 | |
Select all | ||
---|---|---|
Brand Pfannenberg | ||
Unimpeded Air Flow 223 → 247m³/h | ||
Noise Level 53dB(A) | ||
Filtered Air Flow 223m³/h | ||
Input Current 310mA | ||
Input Power Rating 45W | ||
AC or DC Operation ac | ||
Face Dimensions 252 x 252 x 119mm | ||
Supply Voltage 230 V ac | ||
IP Rating IP54 | ||
Series 11643101055 | ||
- COO (Country of Origin):
- DE
The Pfannenberg Filter fan is engineered for efficient thermal management in industrial settings. It offers protection against dust and water splashes, ensuring reliability in challenging environments. This filter fan provides effective ventilation to maintain optimal operating temperatures for sensitive equipment. With its robust design and energy-efficient performance, it is ideal for a wide range of industrial applications. It is the culmination of 60 years experience in thermal management. Using filter fans is the most efficient and cost-effective way to remove heat from the electrical cabinet at ambient temperatures below target internal.
Rated voltage 230 AC
Unimpeded airflow 223 m cube per h
Dimension 223 x 223 mm
IP54 protection
Poured foam seal facilitates the installation
Light gray colour
Tool free 4 corner fastening system enables installation in seconds and guarantees a secure hold
The filter mat can be replaced easily and in seconds due to the optimized front cover
cURus approved
EAC and CAS approved
Unimpeded airflow 223 m cube per h
Dimension 223 x 223 mm
IP54 protection
Poured foam seal facilitates the installation
Light gray colour
Tool free 4 corner fastening system enables installation in seconds and guarantees a secure hold
The filter mat can be replaced easily and in seconds due to the optimized front cover
cURus approved
EAC and CAS approved
