Pfannenberg 11681102055 Series Filter Fan, 230 V ac, ac Operation, 570m³/h Filtered, 880m³/h Unimpeded, IP54, 470 x 470
- RS Stock No.:
- 497-539
- Mfr. Part No.:
- 11681102055
- Brand:
- Pfannenberg
Subtotal (1 unit)*
£222.23
(exc. VAT)
£266.68
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- 10 left, ready to ship
- Plus 12 left, ready to ship from another location
Units | Per unit |
---|---|
1 + | £222.23 |
*price indicative
- RS Stock No.:
- 497-539
- Mfr. Part No.:
- 11681102055
- Brand:
- Pfannenberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Pfannenberg | |
Unimpeded Air Flow | 880m³/h | |
Noise Level | 77dB(A) | |
Filtered Air Flow | 570m³/h | |
Input Current | 720mA | |
Input Power Rating | 160W | |
AC or DC Operation | ac | |
Face Dimensions | 470 x 470 x 152mm | |
Supply Voltage | 230 V ac | |
IP Rating | IP54 | |
Series | 11681102055 | |
Select all | ||
---|---|---|
Brand Pfannenberg | ||
Unimpeded Air Flow 880m³/h | ||
Noise Level 77dB(A) | ||
Filtered Air Flow 570m³/h | ||
Input Current 720mA | ||
Input Power Rating 160W | ||
AC or DC Operation ac | ||
Face Dimensions 470 x 470 x 152mm | ||
Supply Voltage 230 V ac | ||
IP Rating IP54 | ||
Series 11681102055 | ||
- COO (Country of Origin):
- DE

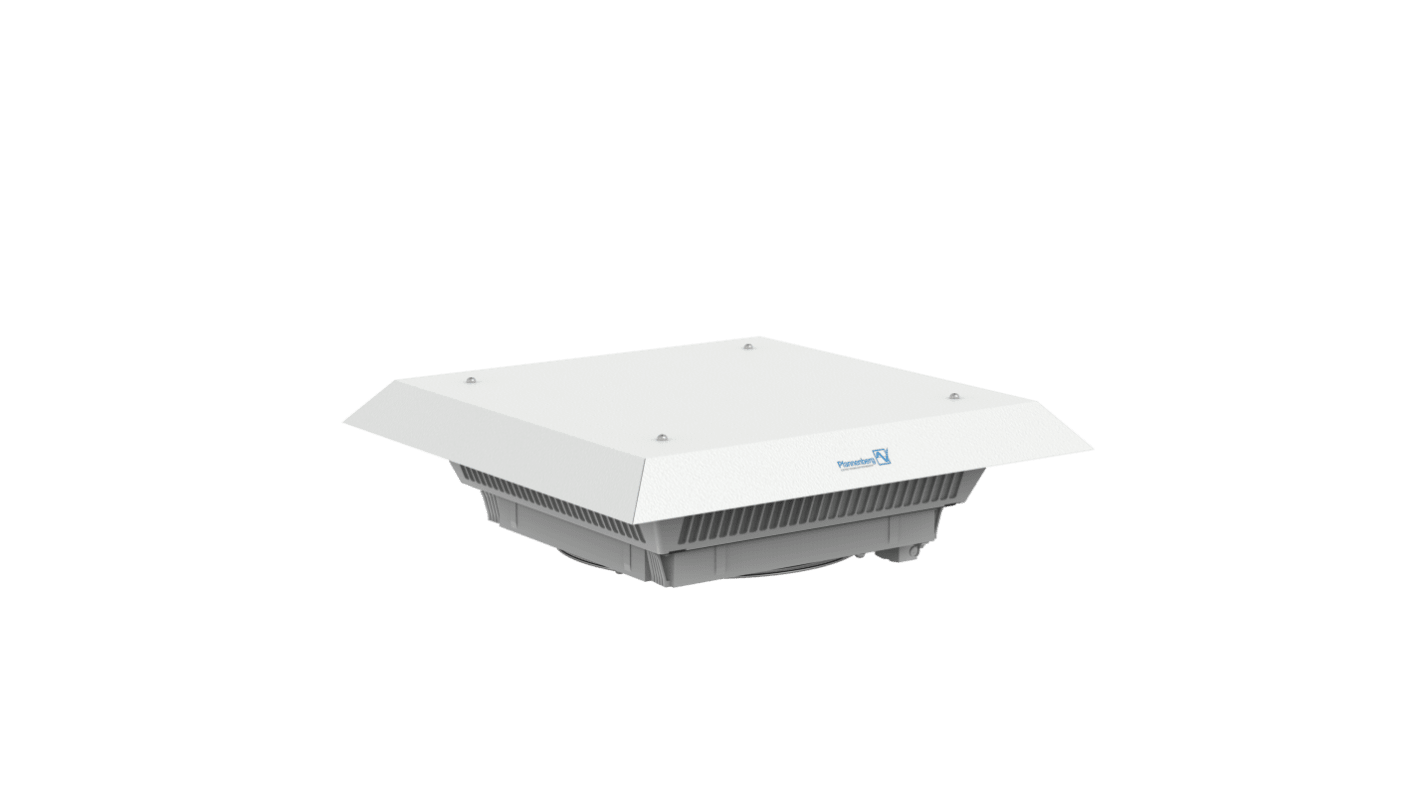

The Pfannenberg Roof-mounted filter fan designed for efficient thermal management in electrical enclosures. It is suitable for indoor use and features a tool-free, quick fastening system for easy installation. It is a cost-effective and energy efficient solution for the cooling of electrical cabinets, if there is no space for the filter fan on the door or the side walls. The air is drawn evenly from every corner of the cabinet. Thus, hotspots can be prevented reliably.
Rated voltage 230 AC
Unimpeded airflow 880 m cube per h
Dimension 291 x 291 mm
IP54 protection
3 performance classes
cURus and EAC approved
Optimal air passage and distribution of temperature due to positioning of the fan
Natural convection is supported
Unimpeded airflow 880 m cube per h
Dimension 291 x 291 mm
IP54 protection
3 performance classes
cURus and EAC approved
Optimal air passage and distribution of temperature due to positioning of the fan
Natural convection is supported
