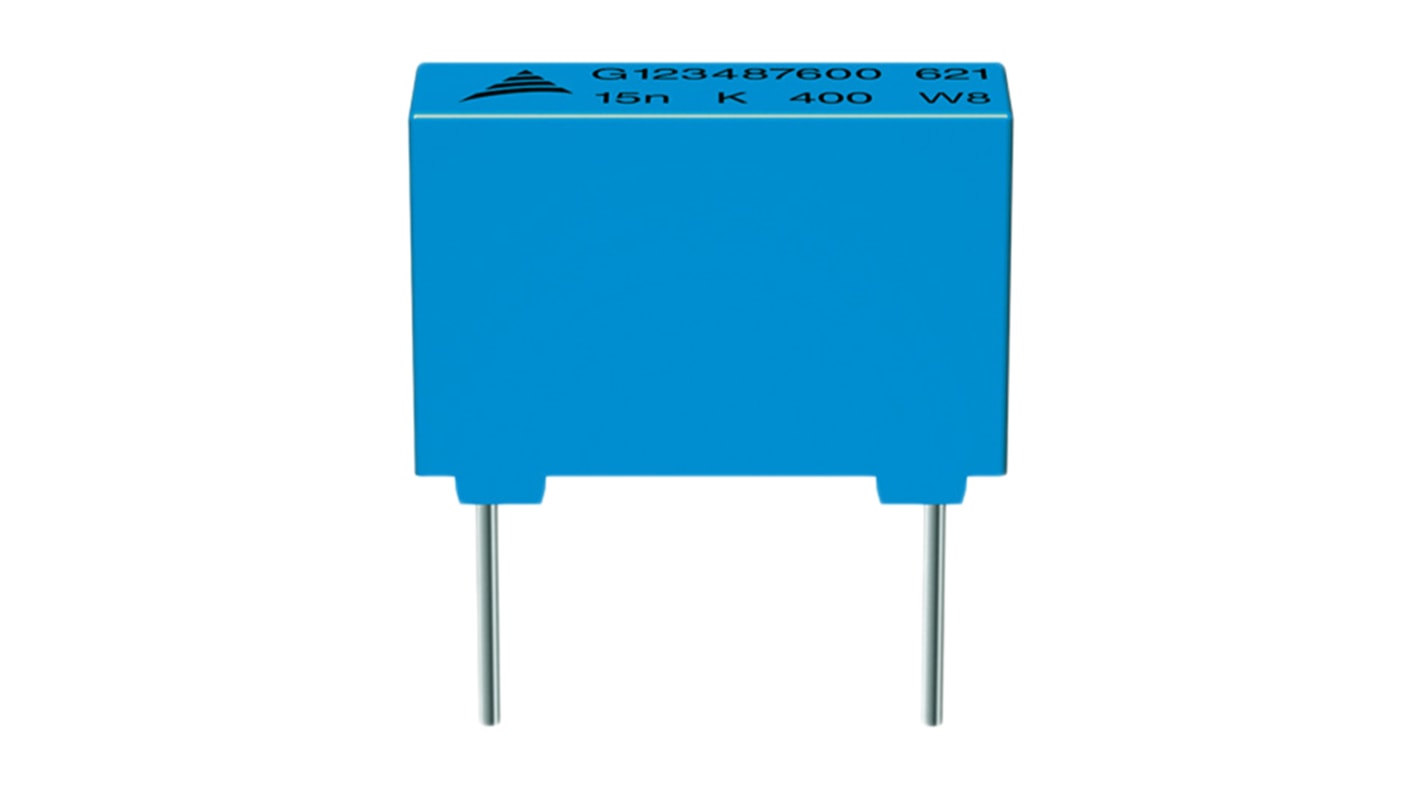

EPCOS B32620 Polypropylene Film Capacitor, 1kV dc, ±5%, 2.2nF, Through Hole
- RS Stock No.:
- 896-1540
- Mfr. Part No.:
- B32620J0222J000
- Brand:
- EPCOS
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 896-1540
- Mfr. Part No.:
- B32620J0222J000
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Capacitance | 2.2nF | |
| Voltage | 1kV dc | |
| Mounting Type | Through Hole | |
| Tolerance | ±5% | |
| Series | B32620 | |
| Lead Pitch | 7.5mm | |
| Length | 10mm | |
| Depth | 5mm | |
| Lead Length | 6.1mm | |
| Height | 10.5mm | |
| Dimensions | 10 x 5 x 10.5mm | |
| Dielectric | Polypropylene | |
| Terminal Type | Radial | |
| Dissipation Factor | 4 % @ 100 kHz | |
| Minimum Operating Temperature | -55°C | |
| Lead Diameter | 0.5mm | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Capacitance 2.2nF | ||
Voltage 1kV dc | ||
Mounting Type Through Hole | ||
Tolerance ±5% | ||
Series B32620 | ||
Lead Pitch 7.5mm | ||
Length 10mm | ||
Depth 5mm | ||
Lead Length 6.1mm | ||
Height 10.5mm | ||
Dimensions 10 x 5 x 10.5mm | ||
Dielectric Polypropylene | ||
Terminal Type Radial | ||
Dissipation Factor 4 % @ 100 kHz | ||
Minimum Operating Temperature -55°C | ||
Lead Diameter 0.5mm | ||
Maximum Operating Temperature +105°C | ||
B32560 / B32562 Series
Stacked-film radial wire-ended metallised polyester film capacitors
These devices are uncoated so care must be taken to observe creepage and clearances to adjacent live parts
Ideal for general consumer and industrial electronics applications including lamp ballast circuits for energy saving lamps
These devices are uncoated so care must be taken to observe creepage and clearances to adjacent live parts
Ideal for general consumer and industrial electronics applications including lamp ballast circuits for energy saving lamps
