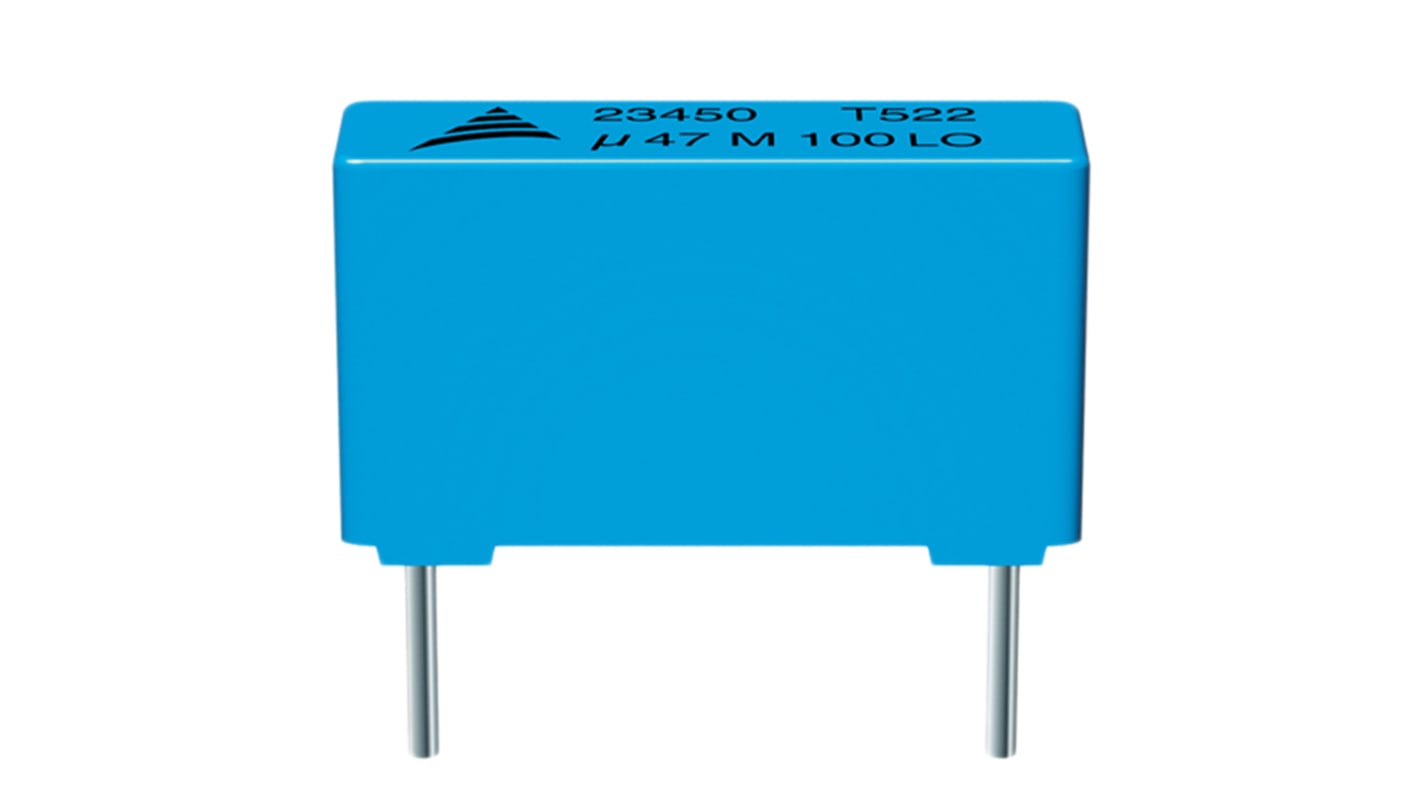

EPCOS B32522 Polyester Film Capacitor, 450V dc, ±5%, 470nF, Through Hole
- RS Stock No.:
- 896-1243P
- Mfr. Part No.:
- B32522N6474J000
- Brand:
- EPCOS
Bulk discount available
Subtotal 50 units (supplied in a bag)*
£28.60
(exc. VAT)
£34.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 50 - 95 | £0.572 |
| 100 - 245 | £0.524 |
| 250 - 495 | £0.486 |
| 500 + | £0.444 |
*price indicative
- RS Stock No.:
- 896-1243P
- Mfr. Part No.:
- B32522N6474J000
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Capacitance | 470nF | |
| Voltage | 450V dc | |
| Mounting Type | Through Hole | |
| Tolerance | ±5% | |
| Series | B32522 | |
| Lead Pitch | 15mm | |
| Length | 18mm | |
| Depth | 8.5mm | |
| Height | 14.5mm | |
| Dimensions | 18 x 8.5 x 14.5mm | |
| Dielectric | Polyester | |
| Terminal Type | Radial | |
| Lead Diameter | 0.8mm | |
| Dissipation Factor | 15 % @ 10 kHz | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Capacitance 470nF | ||
Voltage 450V dc | ||
Mounting Type Through Hole | ||
Tolerance ±5% | ||
Series B32522 | ||
Lead Pitch 15mm | ||
Length 18mm | ||
Depth 8.5mm | ||
Height 14.5mm | ||
Dimensions 18 x 8.5 x 14.5mm | ||
Dielectric Polyester | ||
Terminal Type Radial | ||
Lead Diameter 0.8mm | ||
Dissipation Factor 15 % @ 10 kHz | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +125°C | ||
B32521...B32524 Series
Typical applications are general purchase blocking, coupling, decoupling, bypassing, and RFI for automotive
High pulse strength
High contact reliability
Stacked-film and wound technology
Plastic case with epoxy resin sealing (UL 94 V-0)
High pulse strength
High contact reliability
Stacked-film and wound technology
Plastic case with epoxy resin sealing (UL 94 V-0)
