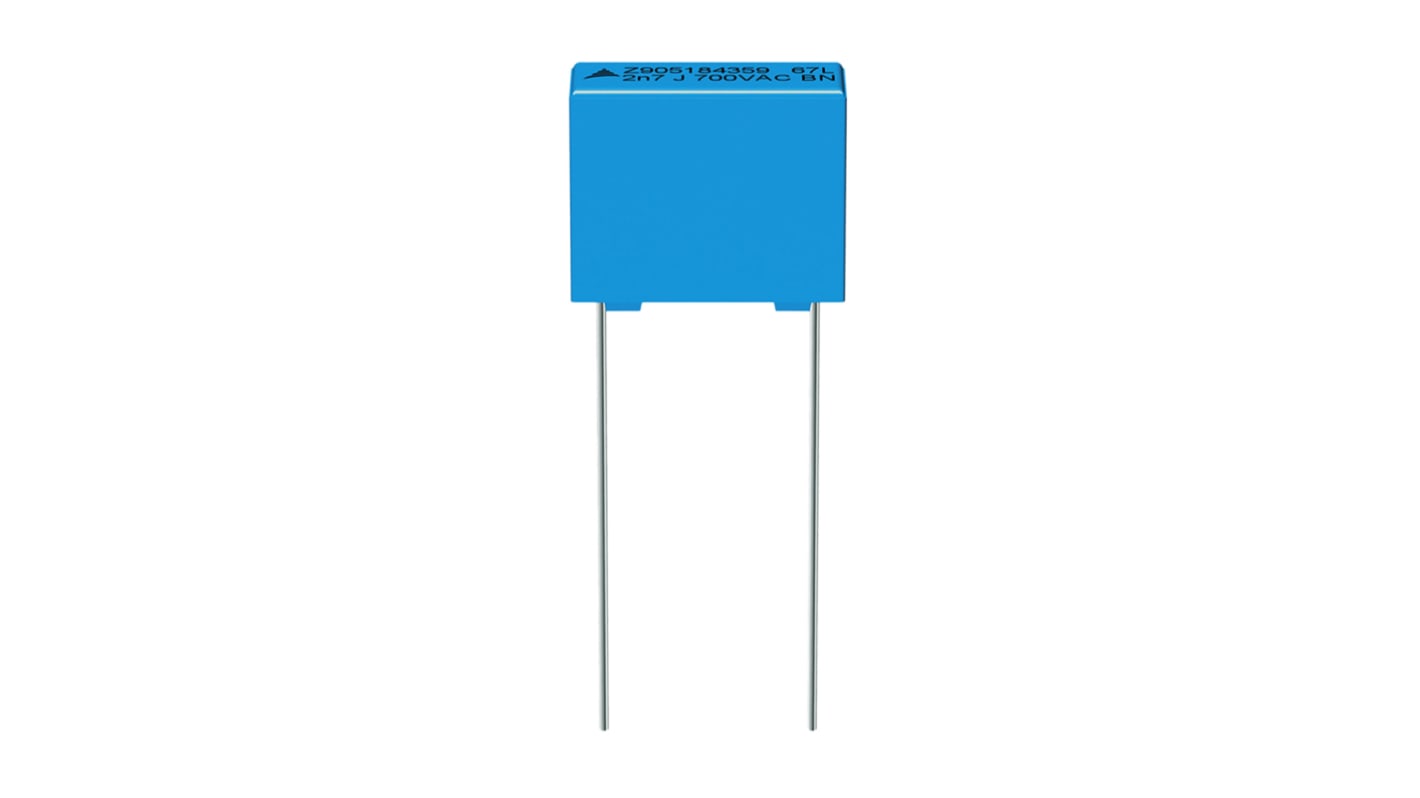

EPCOS B32671P Polypropylene Film Capacitor, 160 V ac, 450 V dc, ±10%, 470nF, Through Hole
- RS Stock No.:
- 882-9161
- Mfr. Part No.:
- B32671P4474K000
- Brand:
- EPCOS
Bulk discount available
Subtotal (1 pack of 10 units)*
£6.42
(exc. VAT)
£7.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 60 unit(s) ready to ship
- Plus 710 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 - 40 | £0.642 | £6.42 |
50 - 90 | £0.596 | £5.96 |
100 - 240 | £0.559 | £5.59 |
250 - 490 | £0.521 | £5.21 |
500 + | £0.475 | £4.75 |
*price indicative
- RS Stock No.:
- 882-9161
- Mfr. Part No.:
- B32671P4474K000
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EPCOS | |
Capacitance | 470nF | |
Voltage | 160 V ac, 450 V dc | |
Mounting Type | Through Hole | |
Tolerance | ±10% | |
Series | B32671P | |
Lead Pitch | 10mm | |
Length | 13mm | |
Lead Length | 6mm | |
Depth | 6mm | |
Height | 14mm | |
Dimensions | 13 x 6 x 14mm | |
Dielectric | Polypropylene | |
Terminal Type | Radial | |
Dissipation Factor | 1 % @ 1 kHz, 2.5 % @ 10 kHz, 25 % @ 100 kHz | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | -55°C | |
Lead Diameter | 0.6mm | |
Select all | ||
---|---|---|
Brand EPCOS | ||
Capacitance 470nF | ||
Voltage 160 V ac, 450 V dc | ||
Mounting Type Through Hole | ||
Tolerance ±10% | ||
Series B32671P | ||
Lead Pitch 10mm | ||
Length 13mm | ||
Lead Length 6mm | ||
Depth 6mm | ||
Height 14mm | ||
Dimensions 13 x 6 x 14mm | ||
Dielectric Polypropylene | ||
Terminal Type Radial | ||
Dissipation Factor 1 % @ 1 kHz, 2.5 % @ 10 kHz, 25 % @ 100 kHz | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
Lead Diameter 0.6mm | ||
B32671P ... B32673P Series Metallised Polypropylene Film Capacitors (MKP)
EPCOS Metallised polypropylene film capacitors which have wound capacitor technology. These capacitors have a plastic case (UL 94 V-0) and epoxy resin sealing. They are smaller in size and offer the same capacitance value when compared to the current product.
Features & Benefits:
Compact design and small dimensions
High ripple and peak current
High frequency AC operation capability
High-voltage capability
Excellent self-healing property
RoHS-compatible
Halogen-free capacitors available on request
Applications in Power Factor Correction
High ripple and peak current
High frequency AC operation capability
High-voltage capability
Excellent self-healing property
RoHS-compatible
Halogen-free capacitors available on request
Applications in Power Factor Correction
Radial 125°C
