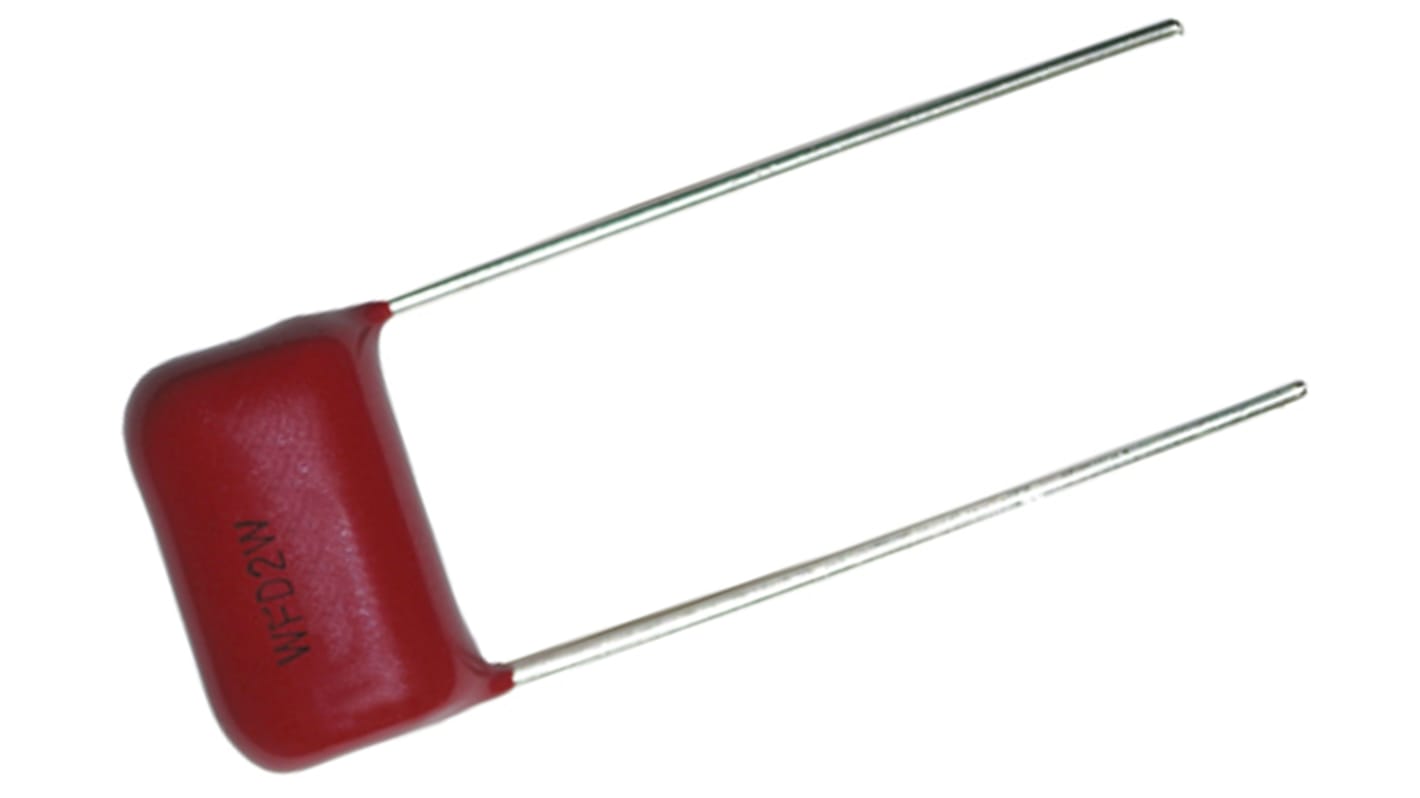

Panasonic ECWF(J) Metallised Polypropylene Film Capacitor, 450V dc, ±5%, 4.7μF, Through Hole
- RS Stock No.:
- 808-3331
- Mfr. Part No.:
- ECWFD2W475J
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 50 units)*
£42.00
(exc. VAT)
£50.50
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 500 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
50 - 50 | £0.84 | £42.00 |
100 - 450 | £0.745 | £37.25 |
500 - 950 | £0.529 | £26.45 |
1000 + | £0.502 | £25.10 |
*price indicative
- RS Stock No.:
- 808-3331
- Mfr. Part No.:
- ECWFD2W475J
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Panasonic | |
Capacitance | 4.7µF | |
Voltage | 450V dc | |
Mounting Type | Through Hole | |
Tolerance | ±5% | |
Series | ECWF(J) | |
Lead Pitch | 22.5mm | |
Length | 25.3mm | |
Depth | 11.7mm | |
Height | 16.4mm | |
Dimensions | 25.3 x 11.7 x 16.4mm | |
Dielectric | Metallised Polypropylene | |
Terminal Type | Through Hole | |
Maximum Operating Temperature | +110°C | |
Lead Diameter | 0.8mm | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Panasonic | ||
Capacitance 4.7µF | ||
Voltage 450V dc | ||
Mounting Type Through Hole | ||
Tolerance ±5% | ||
Series ECWF(J) | ||
Lead Pitch 22.5mm | ||
Length 25.3mm | ||
Depth 11.7mm | ||
Height 16.4mm | ||
Dimensions 25.3 x 11.7 x 16.4mm | ||
Dielectric Metallised Polypropylene | ||
Terminal Type Through Hole | ||
Maximum Operating Temperature +110°C | ||
Lead Diameter 0.8mm | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
Panasonic ECWF(A) Metallised Polypropylene Film Capacitors
Panasonic ECWF(A) film capacitors are a compact solution, designed for high current and high frequency environments. Offering excellent frequency characteristics, they feature low hum noise and feature safety construction technology.
Low loss
Low noise
Compact size - 50% smaller than the ECQE(H) and ECWF(S) series
Powder resin coated
Lead wire type
Low noise
Compact size - 50% smaller than the ECQE(H) and ECWF(S) series
Powder resin coated
Lead wire type
Applications
These film capacitors are designed for high current and high frequency applications. Suitable uses include 250 V dc and 630 V dc high frequency, high current circuits and 450 V dc active filter circuits.
Radial 105°C
Encapsulated in self-extinguishing material meeting the requirements of UL94V-0
