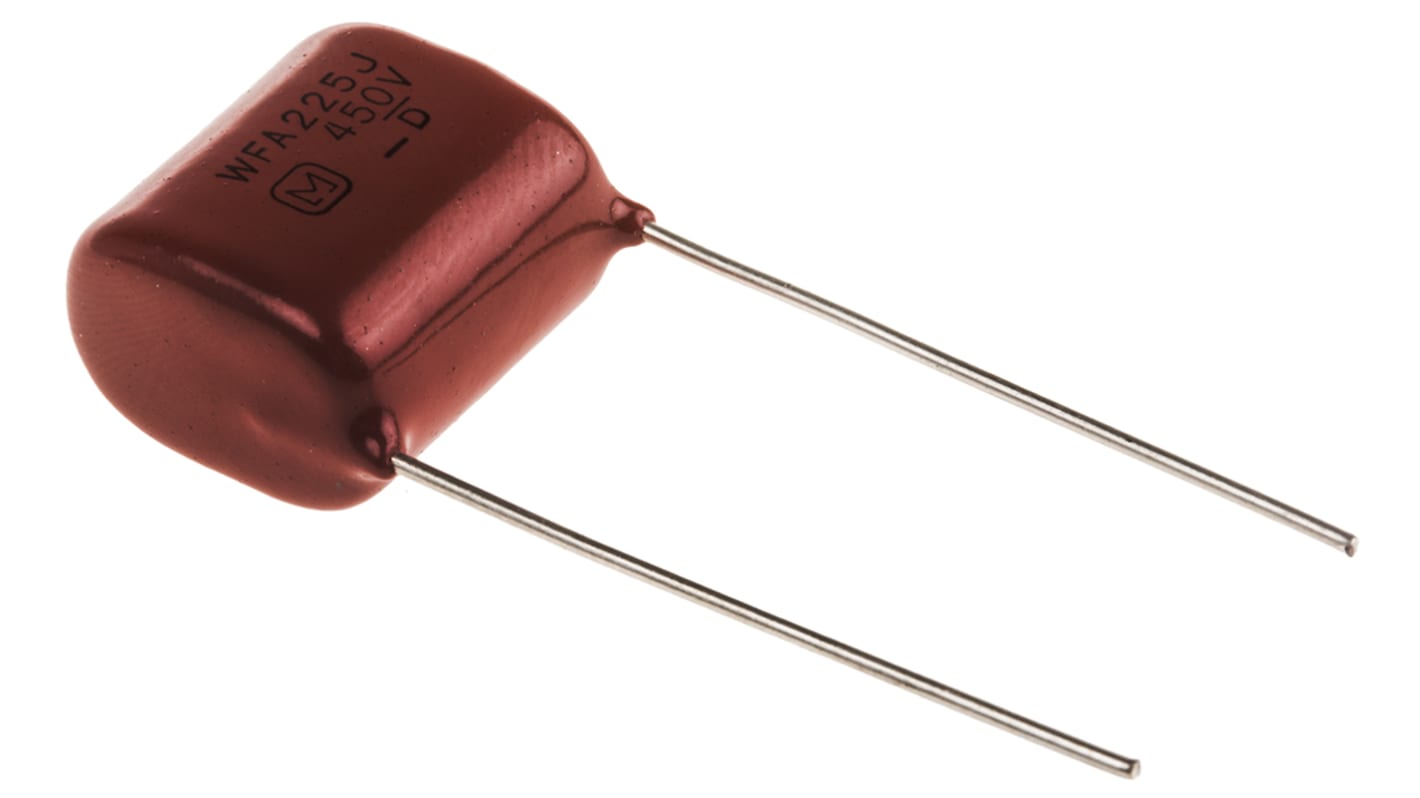

Panasonic ECWF(A) Polypropylene Film Capacitor, 450V dc, ±5%, 2.2μF, Through Hole
- RS Stock No.:
- 727-0164
- Mfr. Part No.:
- ECWF2W225JA
- Brand:
- Panasonic
28 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 2)
£1.93
(exc. VAT)
£2.32
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 18 | £1.93 | £3.86 |
| 20 - 98 | £1.56 | £3.12 |
| 100 - 198 | £1.205 | £2.41 |
| 200 - 498 | £1.14 | £2.28 |
| 500 + | £1.005 | £2.01 |
| *price indicative | ||
- RS Stock No.:
- 727-0164
- Mfr. Part No.:
- ECWF2W225JA
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
Product Details
Panasonic ECWF(A) Metallised Polypropylene Film Capacitors
Panasonic ECWF(A) film capacitors are a compact solution, designed for high current and high frequency environments. Offering excellent frequency characteristics, they feature low hum noise and feature safety construction technology.
Low loss
Low noise
Compact size - 50% smaller than the ECQE(H) and ECWF(S) series
Powder resin coated
Lead wire type
Low noise
Compact size - 50% smaller than the ECQE(H) and ECWF(S) series
Powder resin coated
Lead wire type
Applications
These film capacitors are designed for high current and high frequency applications. Suitable uses include 250 V dc and 630 V dc high frequency, high current circuits and 450 V dc active filter circuits.
Radial 105°C
Encapsulated in self-extinguishing material meeting the requirements of UL94V-0
Specifications
Attribute | Value |
|---|---|
| Capacitance | 2.2µF |
| Voltage | 450V dc |
| Mounting Type | Through Hole |
| Tolerance | ±5% |
| Series | ECWF(A) |
| Lead Pitch | 15mm |
| Length | 18.8mm |
| Depth | 12.8mm |
| Height | 17.9mm |
| Dimensions | 18.8 x 12.8 x 17.9mm |
| Dielectric | Polypropylene |
| Terminal Type | Through Hole |
| Minimum Operating Temperature | -40°C |
| Lead Diameter | 0.8mm |
| Maximum Operating Temperature | +105°C |
