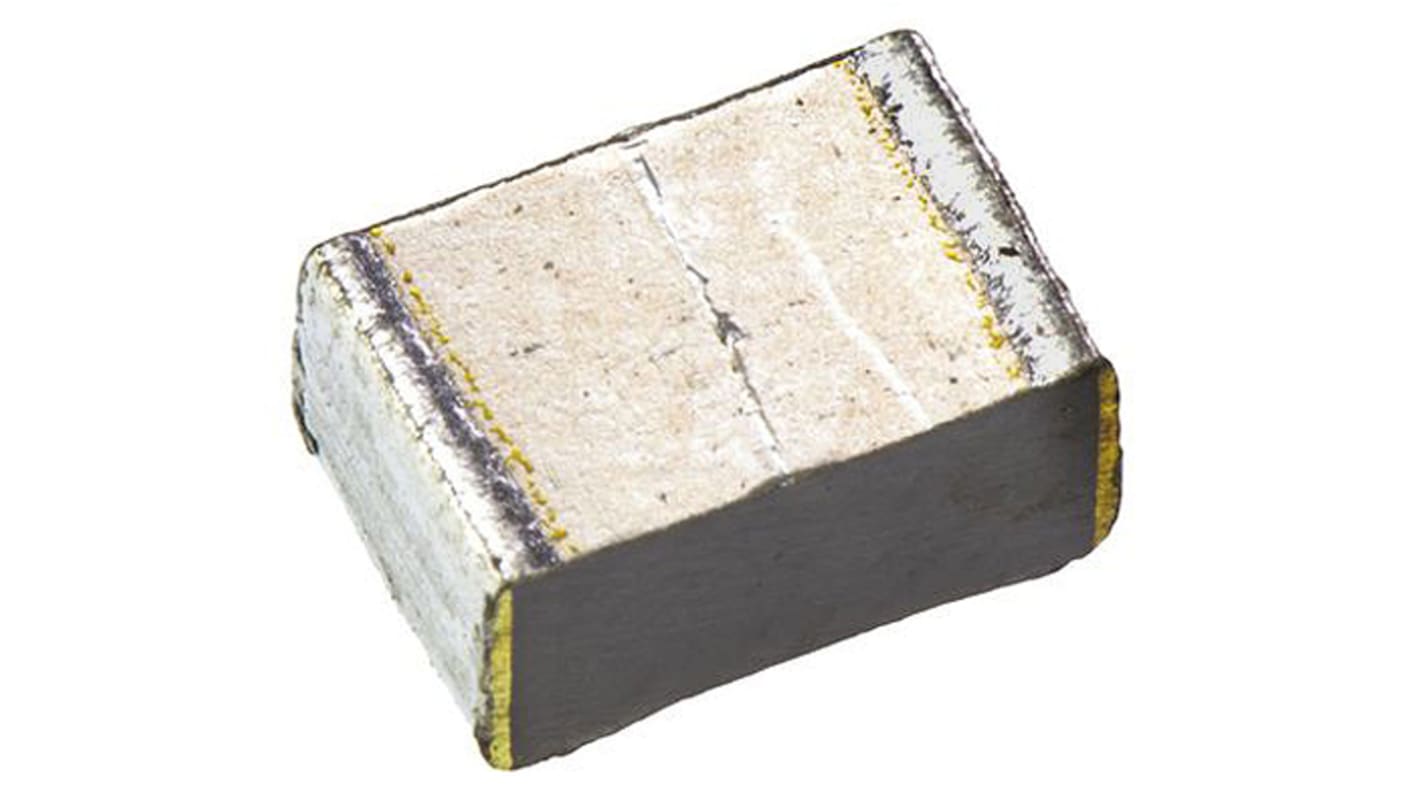

Panasonic ECHU(X) PPS Film Capacitor, 16V dc, ±2%, 2.2nF, Surface Mount
- RS Stock No.:
- 622-5261
- Mfr. Part No.:
- ECHU1C222GX5
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 10 units)*
£2.37
(exc. VAT)
£2.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 110 unit(s) shipping from 27 October 2025
- Plus 3,940 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.237 | £2.37 |
| 50 - 90 | £0.229 | £2.29 |
| 100 - 240 | £0.211 | £2.11 |
| 250 - 490 | £0.193 | £1.93 |
| 500 + | £0.176 | £1.76 |
*price indicative
- RS Stock No.:
- 622-5261
- Mfr. Part No.:
- ECHU1C222GX5
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 2.2nF | |
| Voltage | 16V dc | |
| Mounting Type | Surface Mount | |
| Tolerance | ±2% | |
| Series | ECHU(X) | |
| Length | 1.6mm | |
| Depth | 0.8mm | |
| Height | 0.7mm | |
| Dimensions | 1.6 x 0.8 x 0.7mm | |
| Dielectric | PPS | |
| Terminal Type | Surface Mount | |
| Package/Case | 0603 (1608M) | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 2.2nF | ||
Voltage 16V dc | ||
Mounting Type Surface Mount | ||
Tolerance ±2% | ||
Series ECHU(X) | ||
Length 1.6mm | ||
Depth 0.8mm | ||
Height 0.7mm | ||
Dimensions 1.6 x 0.8 x 0.7mm | ||
Dielectric PPS | ||
Terminal Type Surface Mount | ||
Package/Case 0603 (1608M) | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +125°C | ||
ECHU(X) Series PPS Film Chip Capacitors
Constructed from stacked metallised PPS film, Panasonic ECHU(X) film capacitors feature a mould-less construction. These film capacitors can withstand 85°C, 85% RH, W.V. x 1.0 for 500 hours. They are suitable for reflow soldering.
Product Features:
Reflow soldering only
Compact design
Lightweight design
Low ESR
Applications
ECHU(X) film capacitors are recommended for time-constant applications, oscillation and resonance, filtering and audio circuits.
SMT 125°C
