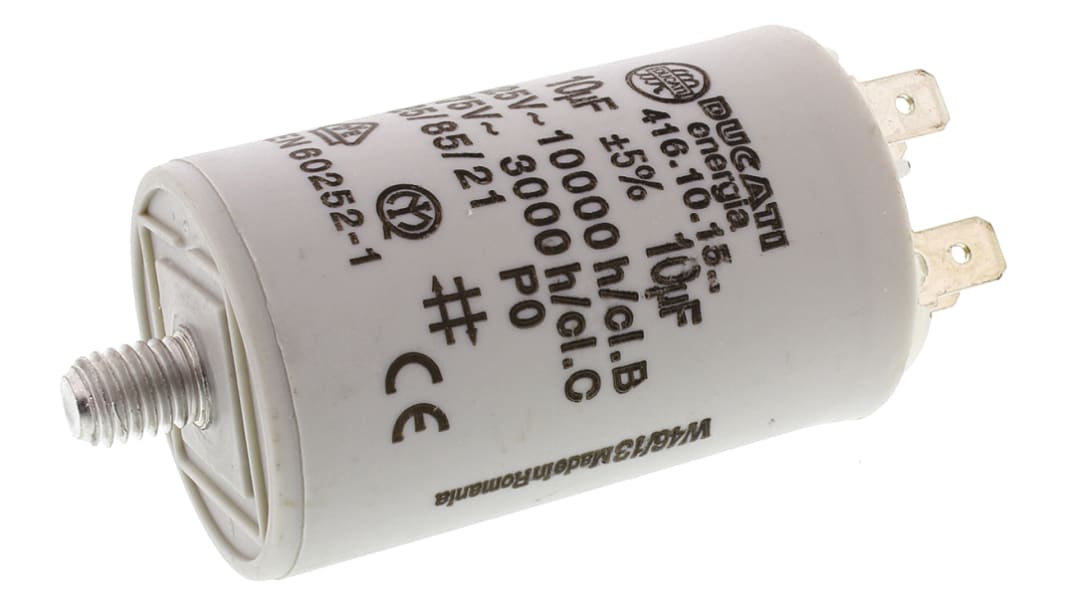

Ducati Energia 4.16.10 Polypropylene Film Capacitor, 450V ac, ±5%, 10μF, Plug In
- RS Stock No.:
- 388-7973
- Distrelec Article No.:
- 304-22-594
- Mfr. Part No.:
- 4.16.10.15.64
- Brand:
- Ducati Energia
Bulk discount available
Subtotal (1 unit)*
£7.71
(exc. VAT)
£9.25
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 104 left, ready to ship
- Plus 23 left, ready to ship from another location
- Plus 145 left, shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £7.71 |
10 - 24 | £7.17 |
25 - 49 | £6.70 |
50 - 99 | £6.24 |
100 + | £5.62 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£11.12
(exc. VAT)
£13.34
(inc. VAT)
- RS Stock No.:
- 388-7973
- Distrelec Article No.:
- 304-22-594
- Mfr. Part No.:
- 4.16.10.15.64
- Brand:
- Ducati Energia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ducati Energia | |
Capacitance | 10µF | |
Voltage | 450V ac | |
Mounting Type | Plug In | |
Tolerance | ±5% | |
Series | 4.16.10 | |
Height | 58mm | |
Dimensions | 36 (Dia.) x 58mm | |
Dielectric | Polypropylene | |
Terminal Type | Solder | |
Select all | ||
---|---|---|
Brand Ducati Energia | ||
Capacitance 10µF | ||
Voltage 450V ac | ||
Mounting Type Plug In | ||
Tolerance ±5% | ||
Series 4.16.10 | ||
Height 58mm | ||
Dimensions 36 (Dia.) x 58mm | ||
Dielectric Polypropylene | ||
Terminal Type Solder | ||
- COO (Country of Origin):
- RO
4.16.10/15 Series
Ducati 4.16.10/15 series are snap-in (quick connect) Polypropylene film capacitors. They are an electric motor capacitor used to start and run. The case and cover feature a self-extinguishing plastic material, the capacitive element is sealed with polyurethane resin. These 4.16.10 series film capacitors are supplied with the main international approvals (IMQ-VDE-UL-GOST). Operating temperature -25°C to +85°C
Features and benefits
Small and Compact
Self-healing property avoiding short-circuits
Low losses non-inductive winding
40mm Diameter
No leakage risk
IP00 Protection rating
Self-healing property avoiding short-circuits
Low losses non-inductive winding
40mm Diameter
No leakage risk
IP00 Protection rating
Applications
Motor control and drive
Note
Fixing nut not supplied.
Standards
VDE 560-8, CEI 33-3, SEV 1029
Standards
VDE 560-8; CEI 33-3; SEV 1029
