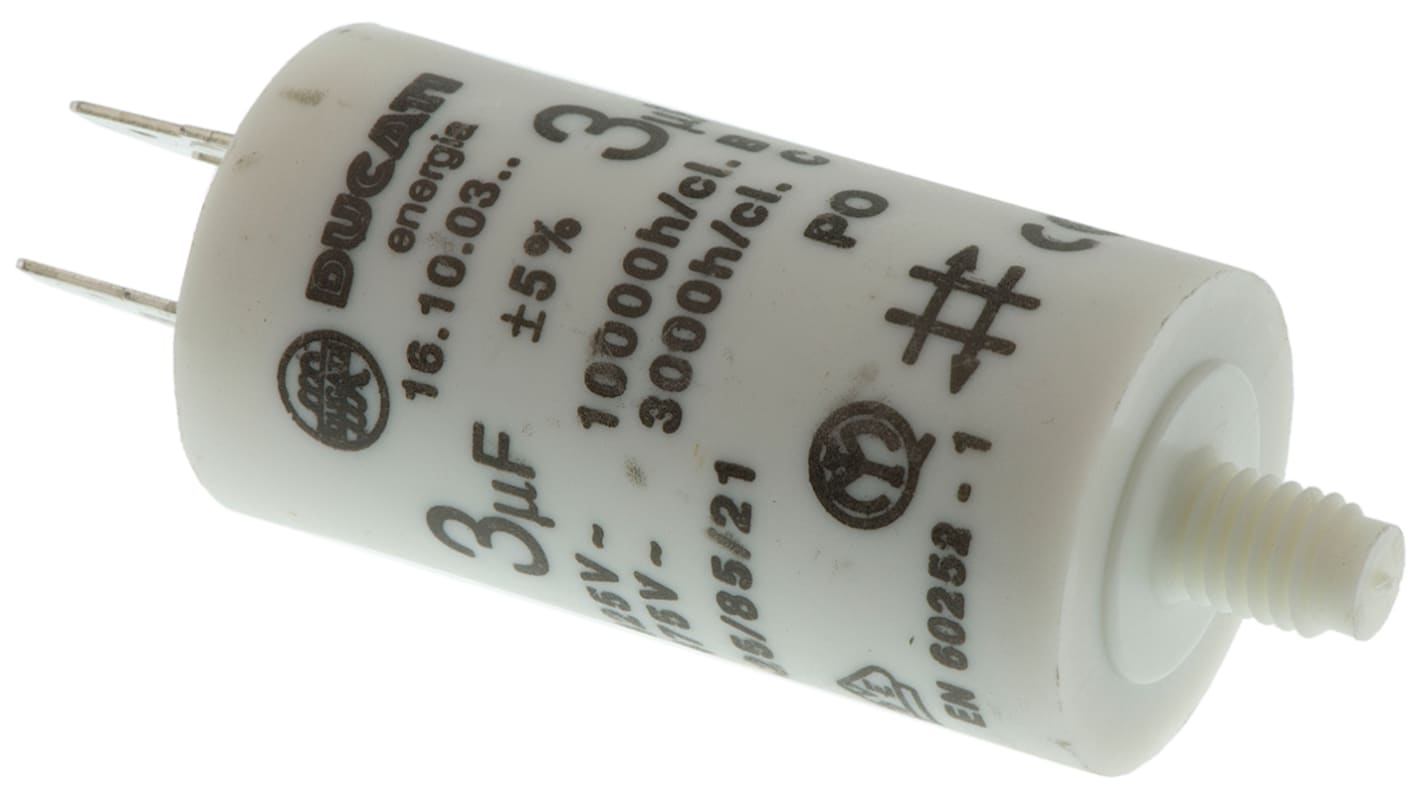

Ducati Energia 4.16.10 Film Capacitor, ±5 %, 3 μF 450V ac, Stud Mount

RS Stock No.:: 388-7939
Distrelec Article No.:: 304-08-667
Mfr. Part No.:: 4.16.10.03.64
Brand:: Ducati Energia

Ducati Energia 4.16.10 Film Capacitor, ±5 %, 3 μF 450V ac, Stud Mount

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

£5.72

(exc. VAT)

£6.86

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

42 unit(s) ready to ship
Plus 101 unit(s) ready to ship from another location
Plus 240 unit(s) shipping from 28 July 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£5.72
10 - 24	£5.49
25 - 49	£5.26
50 - 99	£4.79
100 +	£4.29

*price indicative

RS Stock No.:: 388-7939
Distrelec Article No.:: 304-08-667
Mfr. Part No.:: 4.16.10.03.64
Brand:: Ducati Energia

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Ducati Energia
	Product Type	Film Capacitor
	Capacitance	3μF
	Mount Type	Stud Mount
	Packaging	Bulk
	Rated AC Voltage	450V ac
	Tolerance	±5 %
	Series	4.16.10
	Lead Pitch	11mm
	Automotive Standard	No
	Terminal Type	Double Tag
	Lead Length	9.3mm
	Application	Electric Motor
	Pin Count	2
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	85°C
	Width	28mm
	Standards/Approvals	UL, CE
	Height	55mm
	Dissipation Factor	0.002%
	Package/Case	Plastic
	Lead Diameter	0.7mm

	Select all
	Brand Ducati Energia
	Product Type Film Capacitor
	Capacitance 3μF
	Mount Type Stud Mount
	Packaging Bulk
	Rated AC Voltage 450V ac
	Tolerance ±5 %
	Series 4.16.10
	Lead Pitch 11mm
	Automotive Standard No
	Terminal Type Double Tag
	Lead Length 9.3mm
	Application Electric Motor
	Pin Count 2
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 85°C
	Width 28mm
	Standards/Approvals UL, CE
	Height 55mm
	Dissipation Factor 0.002%
	Package/Case Plastic
	Lead Diameter 0.7mm

COO (Country of Origin):: IT

4.16.10/15 Series

Ducati 4.16.10/15 series are snap-in (quick connect) Polypropylene film capacitors. They are an electric motor capacitor used to start and run. The case and cover feature a self-extinguishing plastic material, the capacitive element is sealed with polyurethane resin. These 4.16.10 series film capacitors are supplied with the main international approvals (IMQ-VDE-UL-GOST). Operating temperature -25°C to +85°C

Features and benefits

Small and Compact

Self-healing property avoiding short-circuits

Low losses non-inductive winding

40mm Diameter

No leakage risk

IP00 Protection rating

Applications

Motor control and drive

Note

Fixing nut not supplied.

Standards

VDE 560-8, CEI 33-3, SEV 1029
