EPCOS B32529 Polyester Capacitor (PET), 100V dc, ±5%, 1nF, Through Hole
- RS Stock No.:
- 241-6565
- Mfr. Part No.:
- B32529C1102J189
- Brand:
- EPCOS
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 241-6565
- Mfr. Part No.:
- B32529C1102J189
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
| Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Capacitance | 1nF | |
| Voltage | 100V dc | |
| Mounting Type | Through Hole | |
| Tolerance | ±5% | |
| Series | B32529 | |
| Lead Pitch | 5mm | |
| Select all | ||
|---|---|---|
| Brand EPCOS | ||
| Capacitance 1nF | ||
| Voltage 100V dc | ||
| Mounting Type Through Hole | ||
| Tolerance ±5% | ||
| Series B32529 | ||
| Lead Pitch 5mm | ||
- COO (Country of Origin):
- BR

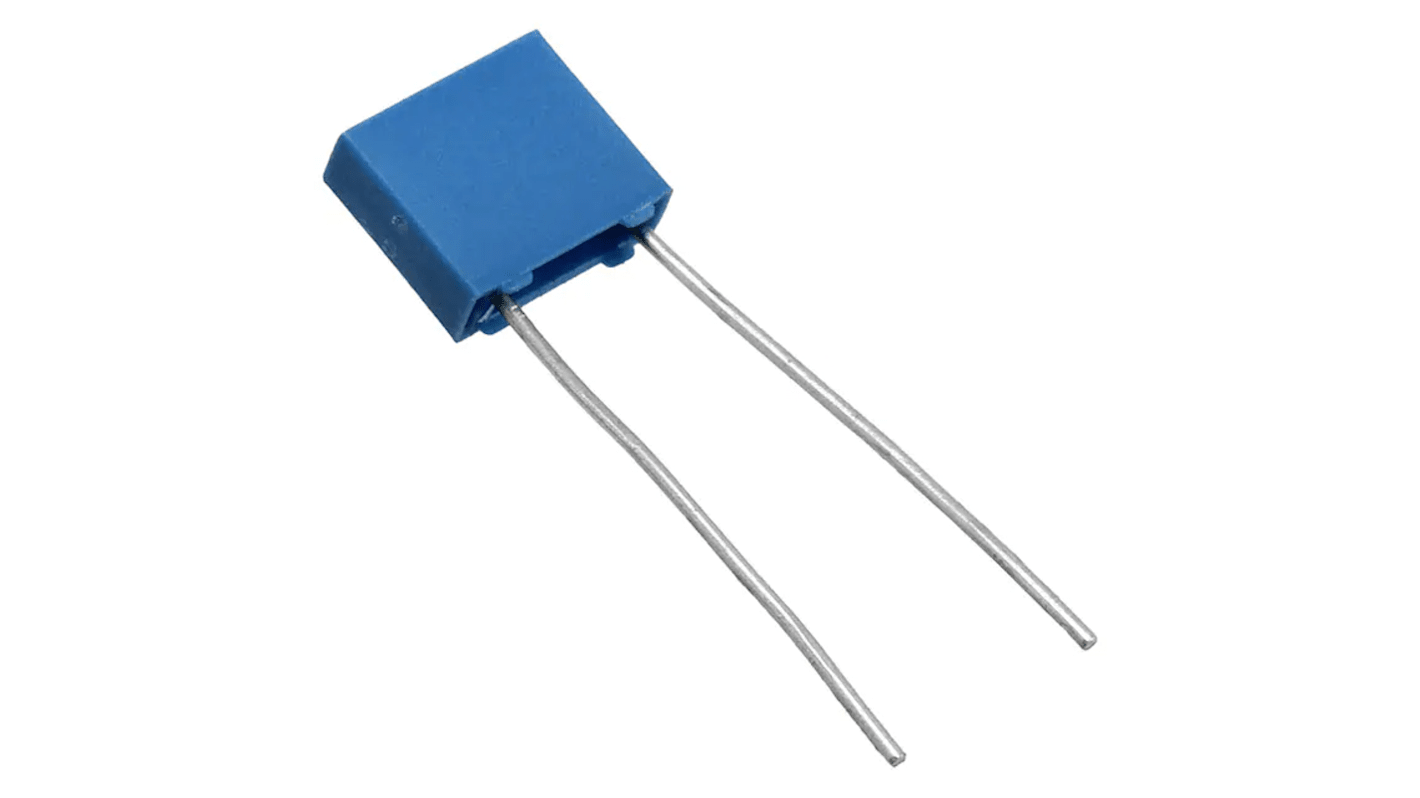

The EPCOS B32529 series metallized polyester film capacitor has polyethylene terephthalate dielectric material. It has stacked-film technology for lead spacing. It has plastic case and epoxy sealing. The parallel wire lead terminals are made from lead-free tinned. It is used for blocking, coupling, decoupling, bypassing and in RFI for automotive applications.
High pulse strength
High contact reliability
RoHS-compatible
Maximum operating temperature 125 °C
AEC-Q200D compliant
High contact reliability
RoHS-compatible
Maximum operating temperature 125 °C
AEC-Q200D compliant
