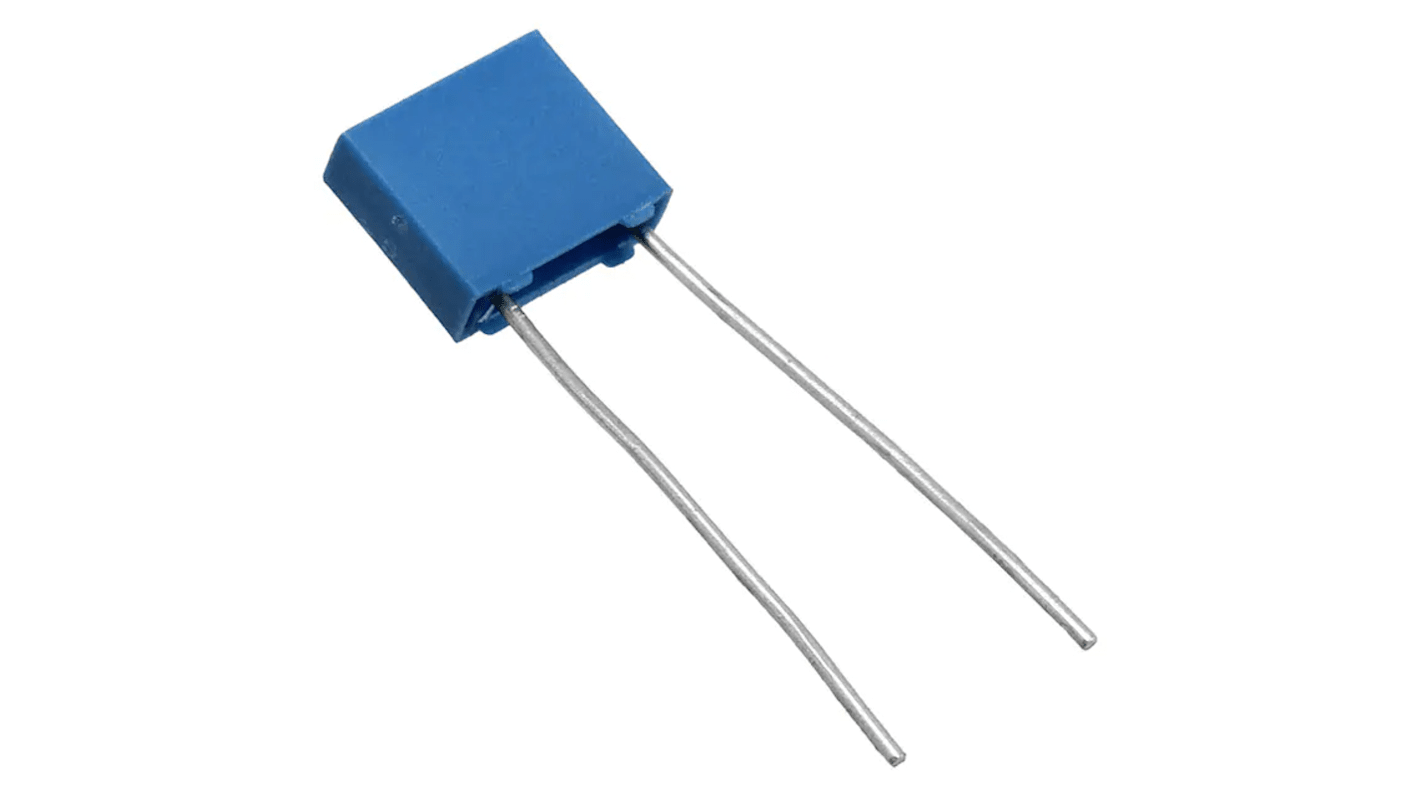

TDK B32529 Polyester Capacitor (PET) 100 nF 63V ac 63 V dc, Through Hole 2
- RS Stock No.:
- 241-6523
- Distrelec Article No.:
- 304-23-969
- Mfr. Part No.:
- B32529C0104J189
- Brand:
- TDK
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 10 units)*
£1.03
(exc. VAT)
£1.24
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,560 unit(s) ready to ship
- Plus 790 unit(s) ready to ship from another location
- Plus 4,880 unit(s) shipping from 23 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 90 | £0.103 | £1.03 |
| 100 - 190 | £0.081 | £0.81 |
| 200 - 490 | £0.071 | £0.71 |
| 500 - 990 | £0.052 | £0.52 |
| 1000 + | £0.041 | £0.41 |
*price indicative
- RS Stock No.:
- 241-6523
- Distrelec Article No.:
- 304-23-969
- Mfr. Part No.:
- B32529C0104J189
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Product Type | Polyester Capacitor (PET) | |
| Mount Type | Through Hole | |
| Rated AC Voltage | 63V ac | |
| Series | B32529 | |
| Rated DC Voltage | 63V dc | |
| Lead Pitch | 5mm | |
| Automotive Standard | AEC-Q200 Rev D | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 110°C | |
| Standards/Approvals | RoHS, UL | |
| Height | 6.5mm | |
| Length | 7.3mm | |
| Width | 2.5mm | |
| Lead Diameter | 0.5mm | |
| Capacitance | 100nF | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Product Type Polyester Capacitor (PET) | ||
Mount Type Through Hole | ||
Rated AC Voltage 63V ac | ||
Series B32529 | ||
Rated DC Voltage 63V dc | ||
Lead Pitch 5mm | ||
Automotive Standard AEC-Q200 Rev D | ||
Pin Count 2 | ||
Maximum Operating Temperature 110°C | ||
Standards/Approvals RoHS, UL | ||
Height 6.5mm | ||
Length 7.3mm | ||
Width 2.5mm | ||
Lead Diameter 0.5mm | ||
Capacitance 100nF | ||
- COO (Country of Origin):
- BR
The EPCOS B32529 series metallized polyester film capacitor has polyethylene terephthalate dielectric material. It has stacked-film technology for lead spacing. It has plastic case and epoxy sealing. The parallel wire lead terminals are made from lead-free tinned. It is used for blocking, coupling, decoupling, bypassing and in RFI for automotive applications.
High pulse strength
High contact reliability
RoHS-compatible
Maximum operating temperature 125 °C
AEC-Q200D compliant
