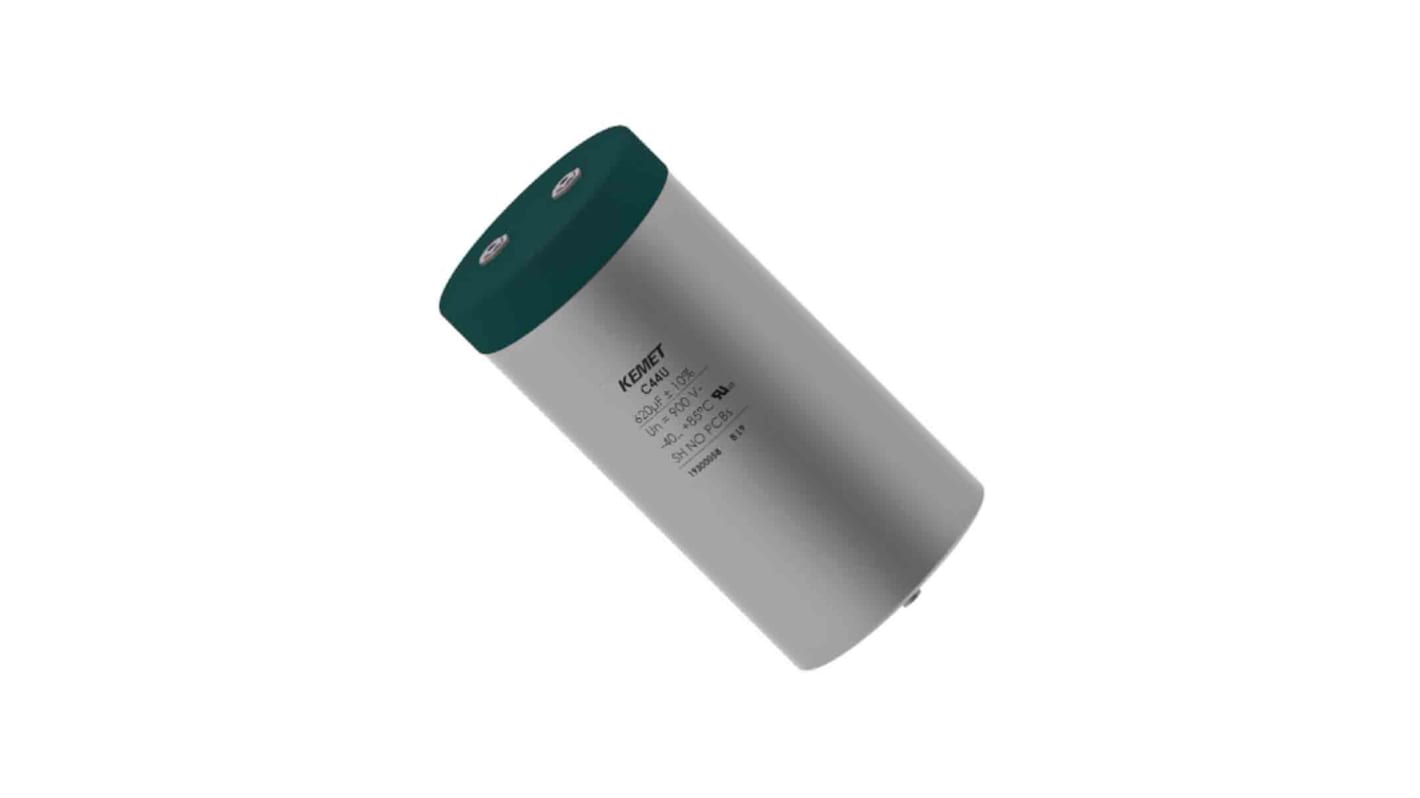

KEMET C44U Polypropylene Film Capacitor, 1300V dc, 10%, 250μF, Screw Mount
- RS Stock No.:
- 196-8808
- Mfr. Part No.:
- C44UUGT6250M84K
- Brand:
- KEMET
Bulk discount available
Subtotal (1 bag of 5 units)*
£268.55
(exc. VAT)
£322.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 20 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 5 - 5 | £53.71 | £268.55 |
| 10 - 20 | £45.654 | £228.27 |
| 25 - 40 | £42.378 | £211.89 |
| 45 - 165 | £41.302 | £206.51 |
| 170 + | £40.282 | £201.41 |
*price indicative
- RS Stock No.:
- 196-8808
- Mfr. Part No.:
- C44UUGT6250M84K
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 250µF | |
| Voltage | 1300V dc | |
| Mounting Type | Screw Mount | |
| Tolerance | 10% | |
| Series | C44U | |
| Lead Pitch | 32mm | |
| Length | 134.5mm | |
| Equivalent Series Resistance | 3mΩ | |
| Dielectric | Polypropylene | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 250µF | ||
Voltage 1300V dc | ||
Mounting Type Screw Mount | ||
Tolerance 10% | ||
Series C44U | ||
Lead Pitch 32mm | ||
Length 134.5mm | ||
Equivalent Series Resistance 3mΩ | ||
Dielectric Polypropylene | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- BG
The Kemet C44U M series is a aluminium can capacitor having dielectric Polypropylene metallized film-non inductive type –
self-healing property material. Used in basically DC filtering & DC-Link.
self-healing property material. Used in basically DC filtering & DC-Link.
Aluminium case with or without, threaded bolt M12
Plastic cap flame retardant execution UL94 V-0
Leads :High current M6 or M8 terminals
Plastic cap flame retardant execution UL94 V-0
Leads :High current M6 or M8 terminals
