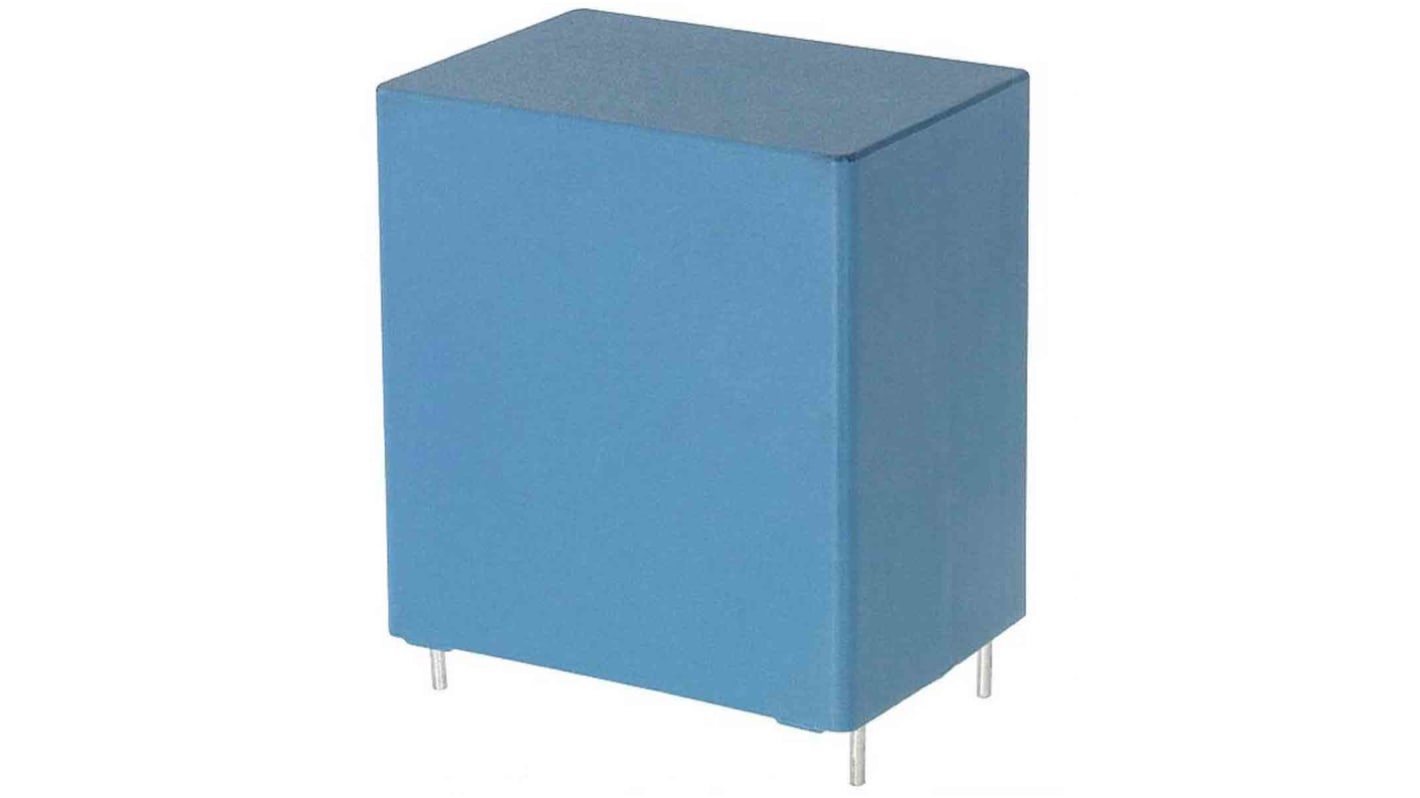

EPCOS B32776 Polypropylene Film Capacitor, 920V dc, 10%, 20μF, Through Hole

View all Film Capacitors
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
194-3775
Mfr. Part No.:
B32776Z0206K000
Brand:
EPCOS
Find similar products by selecting one or more attributes.
Select all

Brand

EPCOS

Capacitance

20µF

Voltage

920V dc

Mounting Type

Through Hole

Tolerance

10%

Series

B32776

Lead Pitch

37.5mm

Length

42mm

Lead Length

6mm

Depth

30mm

Height

45mm

Dimensions

42 x 30 x 45mm

Dielectric

Polypropylene

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Lead Diameter

1.2mm

The EPCOS Polypropylene film capacitor has 20uF capacitance. It has Parallel wire leads, lead-free tinned and 2-pin, 4-pin and 12-pin versions. The maximum operating temperature is 105 °C. It is used for frequency converters, industrial and high-end power

Capacitance values up to 480 μF
High CV product, compact
Good self-healing properties
Over-voltage capability
Low losses with high current capability
High reliability
Long useful life
RoHS-compatible
