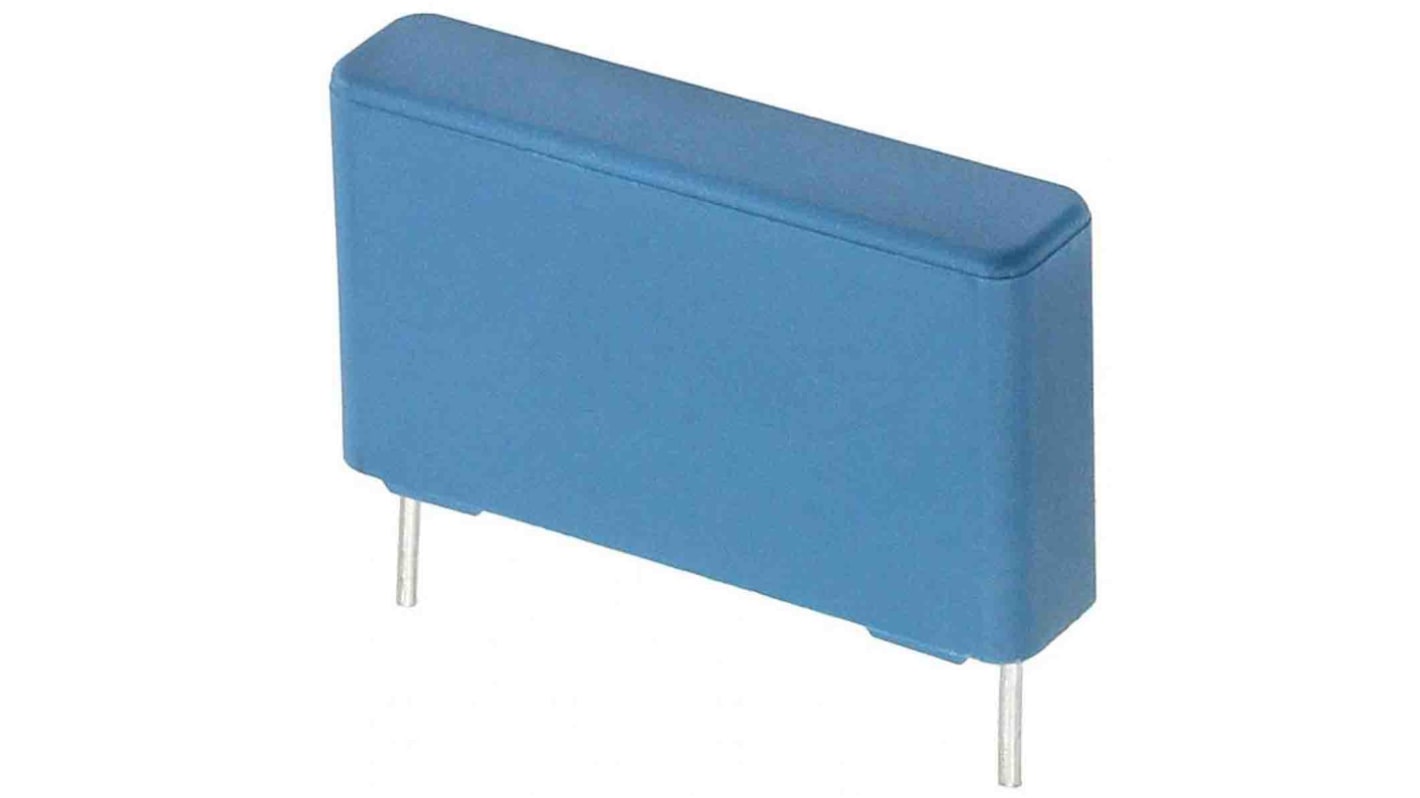

EPCOS B32673P Polypropylene Film Capacitor, 630V dc, 10%, 560nF, Through Hole

View all Film Capacitors

Subtotal (1 pack of 10 units)*

£5.59

(exc. VAT)

£6.71

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,710 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 +£0.559£5.59

*price indicative

RS Stock No.:
194-3752
Mfr. Part No.:
B32673P6564K000
Brand:
EPCOS
Find similar products by selecting one or more attributes.
Select all

Brand

EPCOS

Capacitance

560nF

Voltage

630V dc

Mounting Type

Through Hole

Tolerance

10%

Series

B32673P

Automotive Standard

AEC-Q200D

Lead Pitch

22.5mm

Length

26.5mm

Depth

6mm

Lead Length

6mm

Height

15mm

Dimensions

26.5 x 6 x 15mm

Dielectric

Polypropylene

Dissipation Factor

1 x 10^-3%

Lead Diameter

0.8mm

Maximum Operating Temperature

+125°C

COO (Country of Origin):
CN
The EPCOS Polypropylene film capacitor has 0.56uF capacitance. It has Parallel wire leads, lead-free tinned and special lead lengths available on request. The maximum operating temperature is 125 °C. It is used for PFC (Power Factor Correction).

Very compact design
Very small dimensions
Very high ripple and peak current
High frequency AC operation capability
High voltage capability
Excellent self-healing property
RoHS-compatible
Halogen-free capacitors available on request
AEC-Q200D compliant
