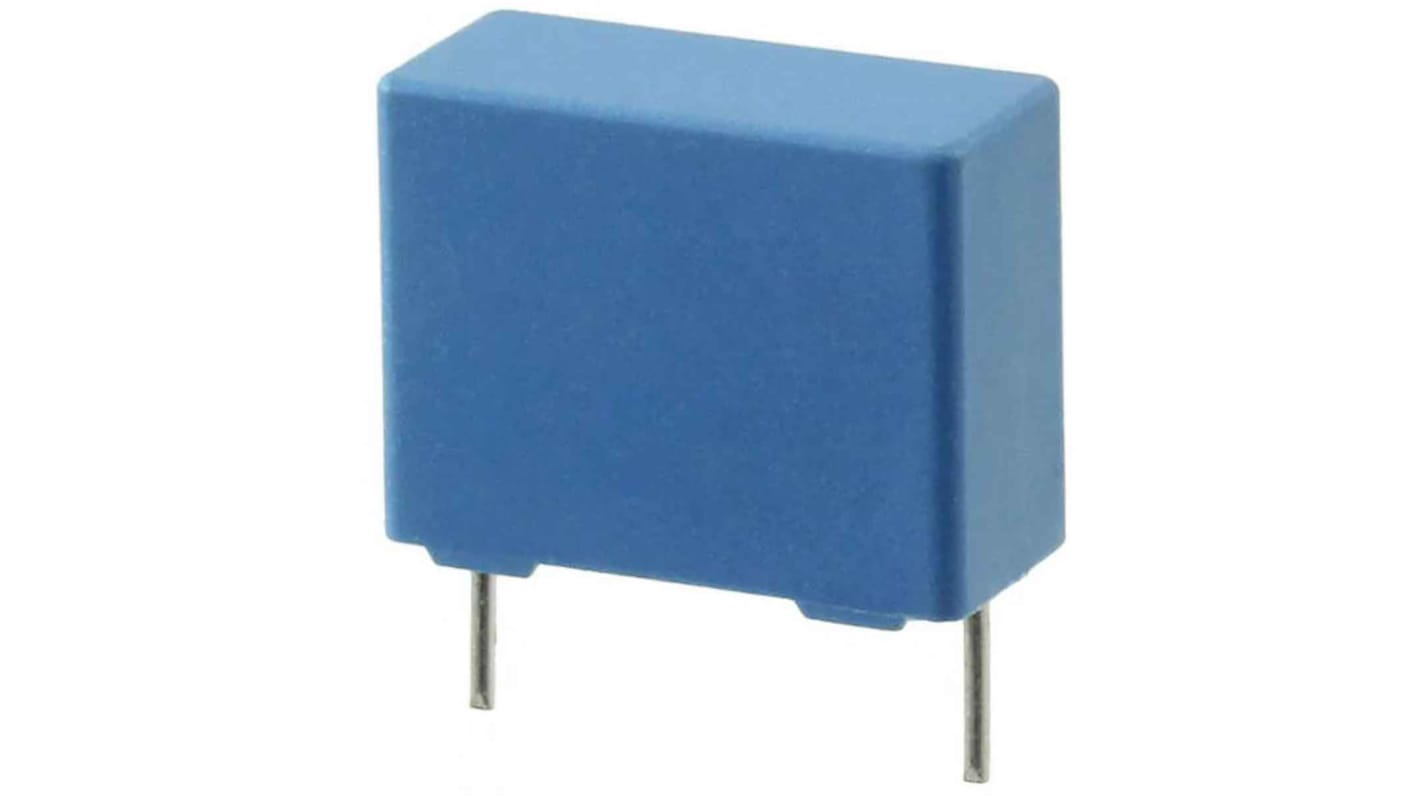

EPCOS B32642B Polypropylene Film Capacitor, 630V dc, 5%, 100nF, Through Hole
- RS Stock No.:
- 194-3710
- Mfr. Part No.:
- B32642B6104J000
- Brand:
- EPCOS
Bulk discount available
Subtotal (1 pack of 10 units)*
£9.04
(exc. VAT)
£10.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1,260 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.904 | £9.04 |
| 100 - 240 | £0.839 | £8.39 |
| 250 + | £0.753 | £7.53 |
*price indicative
- RS Stock No.:
- 194-3710
- Mfr. Part No.:
- B32642B6104J000
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Capacitance | 100nF | |
| Voltage | 630V dc | |
| Mounting Type | Through Hole | |
| Tolerance | 5% | |
| Series | B32642B | |
| Lead Pitch | 15mm | |
| Automotive Standard | AEC-Q200D | |
| Length | 18mm | |
| Depth | 8.5mm | |
| Lead Length | 6mm | |
| Height | 14.5mm | |
| Dimensions | 18 x 8.5 x 14.5mm | |
| Dielectric | Polypropylene | |
| Lead Diameter | 0.8mm | |
| Dissipation Factor | 0.6 x 10^-3% | |
| Maximum Operating Temperature | +110°C | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Capacitance 100nF | ||
Voltage 630V dc | ||
Mounting Type Through Hole | ||
Tolerance 5% | ||
Series B32642B | ||
Lead Pitch 15mm | ||
Automotive Standard AEC-Q200D | ||
Length 18mm | ||
Depth 8.5mm | ||
Lead Length 6mm | ||
Height 14.5mm | ||
Dimensions 18 x 8.5 x 14.5mm | ||
Dielectric Polypropylene | ||
Lead Diameter 0.8mm | ||
Dissipation Factor 0.6 x 10^-3% | ||
Maximum Operating Temperature +110°C | ||
- COO (Country of Origin):
- CN
EPCOS B32641B-B32642B Series Film Capacitors
EPCOS high frequency polypropylene film capacitor features a very compact design with high pulse strength, high current withstand capability.Maximum operating temperature 110°C. Wound capacitor technology.
Applications
High frequency applications with
high current stress
Switched-mode power supply
Electronic ballasts (resonant circuits)
LLC typology in resonant circuits
high current stress
Switched-mode power supply
Electronic ballasts (resonant circuits)
LLC typology in resonant circuits
