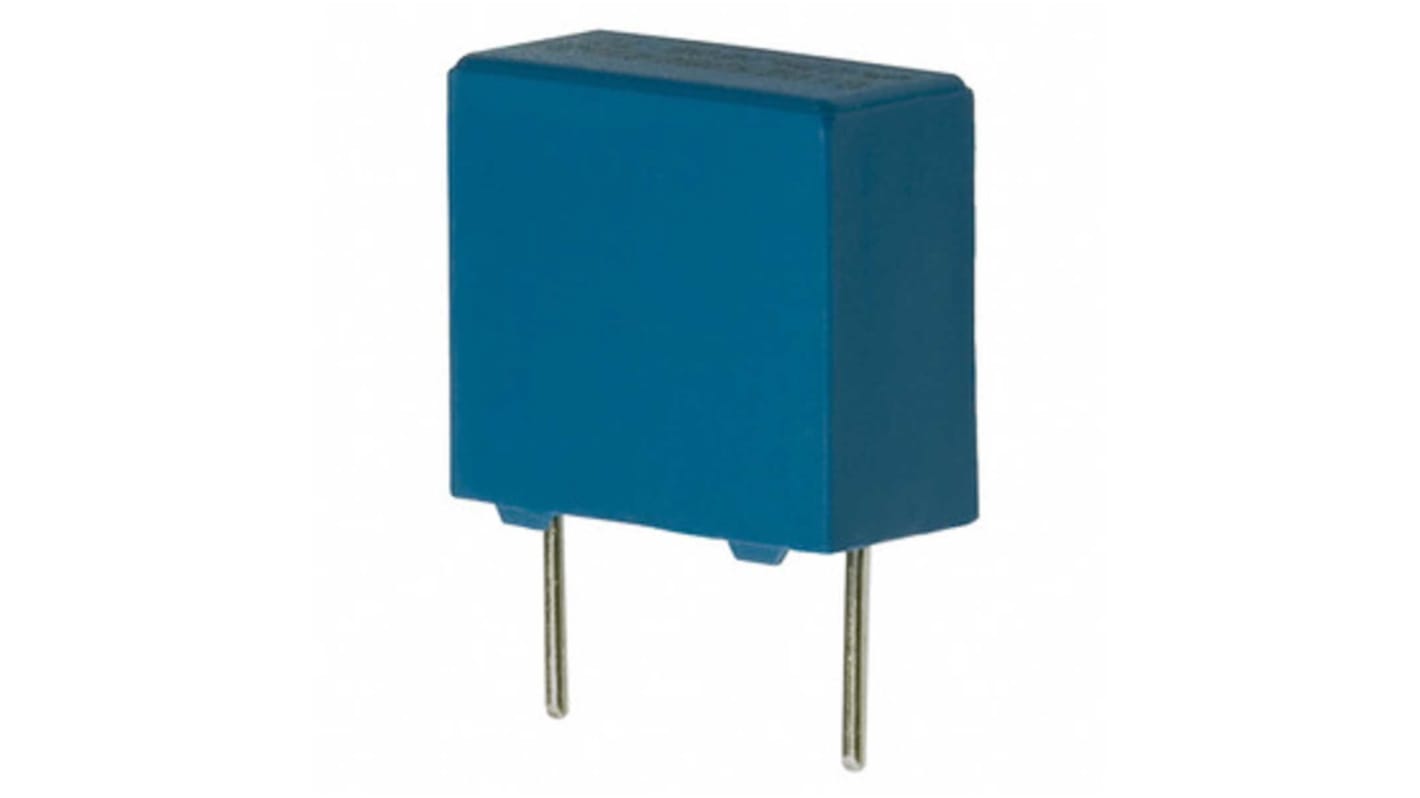

TDK B32621 Film Capacitor 47 nF 400V ac 400 V dc, Through Hole 2
- RS Stock No.:
- 194-3704
- Mfr. Part No.:
- B32621A4473J000
- Brand:
- TDK
Bulk discount available
View bulk pricing optionsSubtotal (1 box of 1000 units)*
£257.00
(exc. VAT)
£308.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 11 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 1000 - 1000 | £0.257 | £257.00 |
| 2000 - 3000 | £0.218 | £218.00 |
| 4000 - 7000 | £0.202 | £202.00 |
| 8000 - 11000 | £0.197 | £197.00 |
| 12000 + | £0.192 | £192.00 |
*price indicative
- RS Stock No.:
- 194-3704
- Mfr. Part No.:
- B32621A4473J000
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Product Type | Film Capacitor | |
| Mount Type | Through Hole | |
| Rated AC Voltage | 400V ac | |
| Series | B32621 | |
| Rated DC Voltage | 400V dc | |
| Automotive Standard | No | |
| Lead Pitch | 10mm | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 105°C | |
| Length | 13mm | |
| Height | 12mm | |
| Standards/Approvals | RoHS, UL | |
| Width | 6mm | |
| Capacitance | 47nF | |
| Lead Diameter | 0.6mm | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Product Type Film Capacitor | ||
Mount Type Through Hole | ||
Rated AC Voltage 400V ac | ||
Series B32621 | ||
Rated DC Voltage 400V dc | ||
Automotive Standard No | ||
Lead Pitch 10mm | ||
Pin Count 2 | ||
Maximum Operating Temperature 105°C | ||
Length 13mm | ||
Height 12mm | ||
Standards/Approvals RoHS, UL | ||
Width 6mm | ||
Capacitance 47nF | ||
Lead Diameter 0.6mm | ||
- COO (Country of Origin):
- CN
The EPCOS Polypropylene film capacitor has 47000pF capacitance. It has Parallel wire leads, lead-free tinned and special lead lengths available on request. The maximum operating temperature is 105 °C. It is used for Compact fluorescent lamps (CFL) and SMP
Very high pulse strength
Very good self-healing properties
Smallest possible dimensions
High contact reliability
RoHS-compatible
