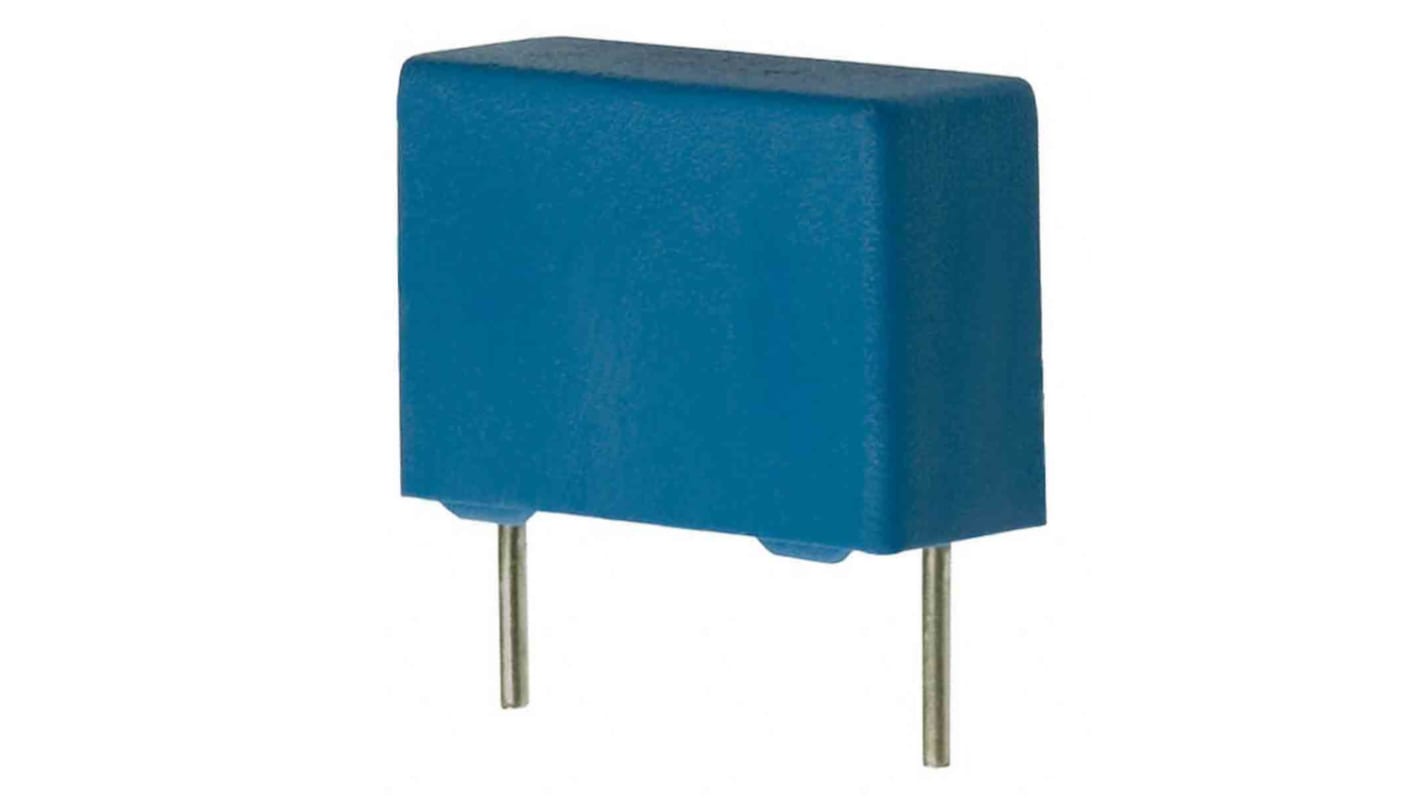

EPCOS B32654 Polypropylene Film Capacitor, 2kV dc, 5%, 22nF, Through Hole
- RS Stock No.:
- 194-3701
- Mfr. Part No.:
- B32654A2223J000
- Brand:
- EPCOS
Price Each (In a Pack of 5)
£1.894
(exc. VAT)
£2.273
(inc. VAT)
11345 In stock - FREE next working day delivery available
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £1.894 | £9.47 |
| 25 - 95 | £1.706 | £8.53 |
| 100 - 195 | £1.538 | £7.69 |
| 200 + | £1.514 | £7.57 |
*price indicative
- RS Stock No.:
- 194-3701
- Mfr. Part No.:
- B32654A2223J000
- Brand:
- EPCOS
Technical Reference
Legislation and Compliance
Product Details
The EPCOS Polypropylene film capacitor has 22000pF capacitance. It has Parallel wire leads, lead-free tinned and special lead lengths available on request. The maximum operating temperature is 110 °C. It is used for electronic ballasts, switch-mode power
High pulse strength
High contact reliability
RoHS-compatible
Very low inductance
Halogen-free capacitors available on request
AEC-Q200D compliant
High contact reliability
RoHS-compatible
Very low inductance
Halogen-free capacitors available on request
AEC-Q200D compliant
Specifications
Attribute | Value |
|---|---|
| Capacitance | 22nF |
| Voltage | 2kV dc |
| Mounting Type | Through Hole |
| Tolerance | 5% |
| Series | B32654 |
| Lead Pitch | 27.5mm |
| Automotive Standard | AEC-Q200D |
| Length | 31.5mm |
| Lead Length | 6mm |
| Depth | 11mm |
| Height | 21mm |
| Dimensions | 31.5 x 11 x 21mm |
| Dielectric | Polypropylene |
| Maximum Operating Temperature | +110°C |
| Lead Diameter | 0.8mm |
| Dissipation Factor | 3 x 10^-3% |
