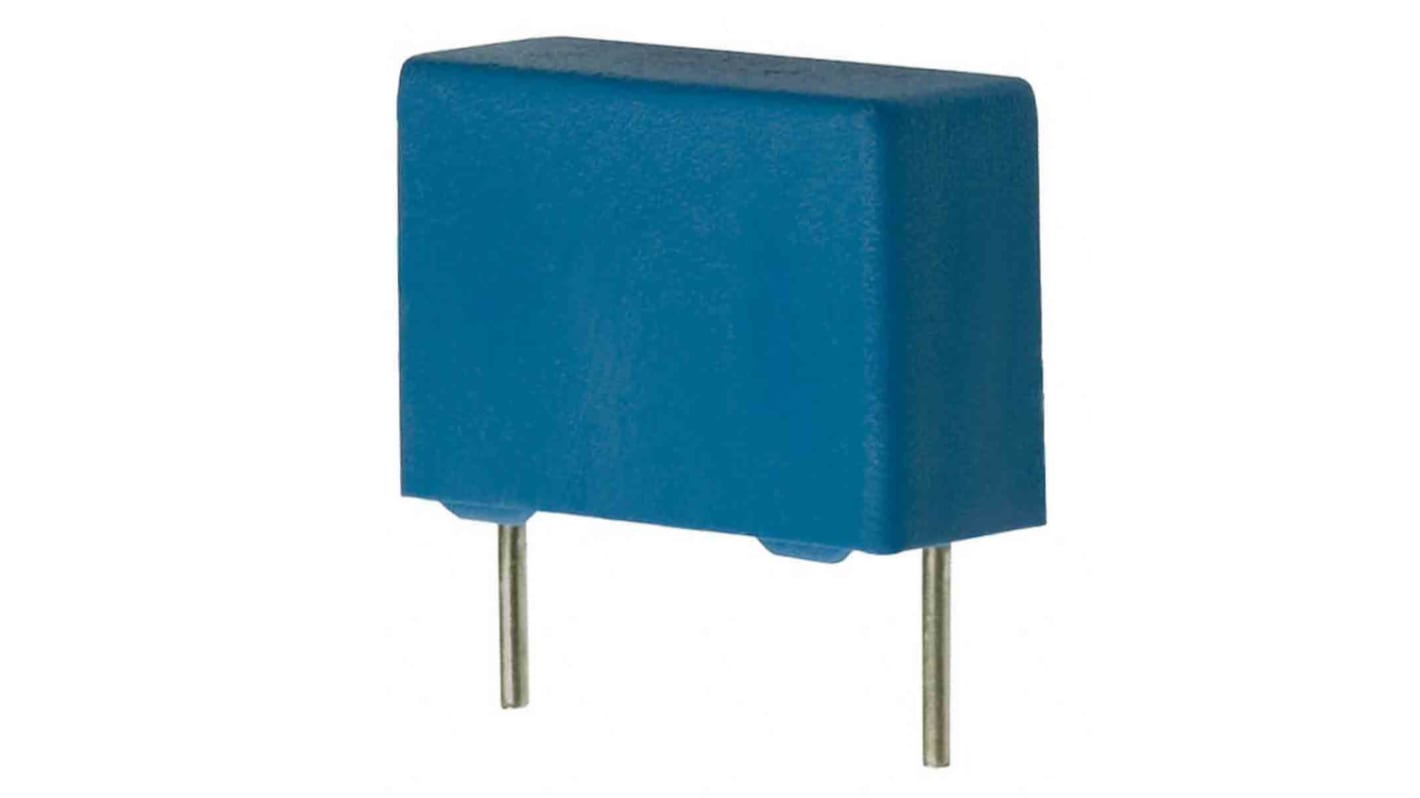

EPCOS B32652 Polypropylene Film Capacitor, 1.25kV dc, 5%, 10nF, Through Hole

View all Film Capacitors

Subtotal (1 pack of 20 units)*

£6.18

(exc. VAT)

£7.42

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 5,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
20 +£0.309£6.18

*price indicative

RS Stock No.:
194-3602
Mfr. Part No.:
B32652A7103J000
Brand:
EPCOS
Find similar products by selecting one or more attributes.
Select all

Brand

EPCOS

Capacitance

10nF

Voltage

1.25kV dc

Mounting Type

Through Hole

Tolerance

5%

Series

B32652

Automotive Standard

AEC-Q200D

Lead Pitch

15mm

Length

18mm

Lead Length

6mm

Depth

6mm

Height

11mm

Dimensions

18 x 6 x 11mm

Dielectric

Polypropylene

Maximum Operating Temperature

+110°C

Lead Diameter

0.8mm

Dissipation Factor

3 x 10^-3%

The EPCOS Polypropylene film capacitor has 10000pF capacitance. It has Parallel wire leads, lead-free tinned and special lead lengths available on request. The maximum operating temperature is 110 °C. It is used for electronic ballasts, switch-mode power

High pulse strength
High contact reliability
RoHS-compatible
Very low inductance
Halogen-free capacitors available on request
AEC-Q200D compliant
