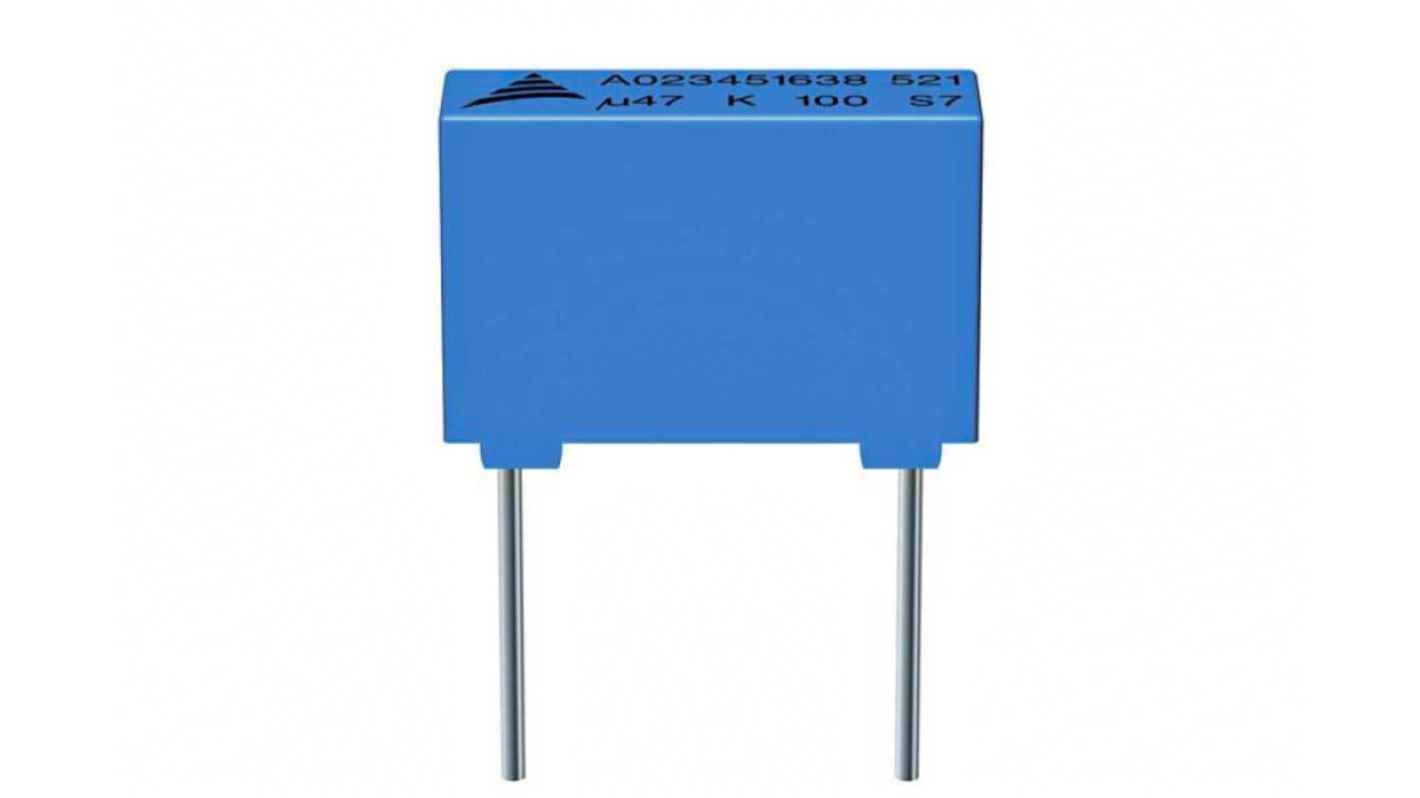

TDK B32521 Film Capacitor 10 nF 200V ac 400 V dc, Through Hole 2

Bulk discount available

View bulk pricing options

Subtotal (1 pack of 50 units)*

£8.25

(exc. VAT)

£9.90

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TDK
	Product Type	Film Capacitor
	Mount Type	Through Hole
	Rated AC Voltage	200V ac
	Series	B32521
	Rated DC Voltage	400V dc
	Lead Pitch	10mm
	Automotive Standard	AEC-Q200 Rev D
	Pin Count	2
	Maximum Operating Temperature	125°C
	Length	13mm
	Width	4mm
	Standards/Approvals	UL, RoHS
	Height	7mm
	Lead Diameter	0.6mm
	Capacitance	10nF

	Select all
	Brand TDK
	Product Type Film Capacitor
	Mount Type Through Hole
	Rated AC Voltage 200V ac
	Series B32521
	Rated DC Voltage 400V dc
	Lead Pitch 10mm
	Automotive Standard AEC-Q200 Rev D
	Pin Count 2
	Maximum Operating Temperature 125°C
	Length 13mm
	Width 4mm
	Standards/Approvals UL, RoHS
	Height 7mm
	Lead Diameter 0.6mm
	Capacitance 10nF

High pulse strength

High contact reliability

Applications

Blocking

Coupling, decoupling

Bypassing

RFI for automotive
