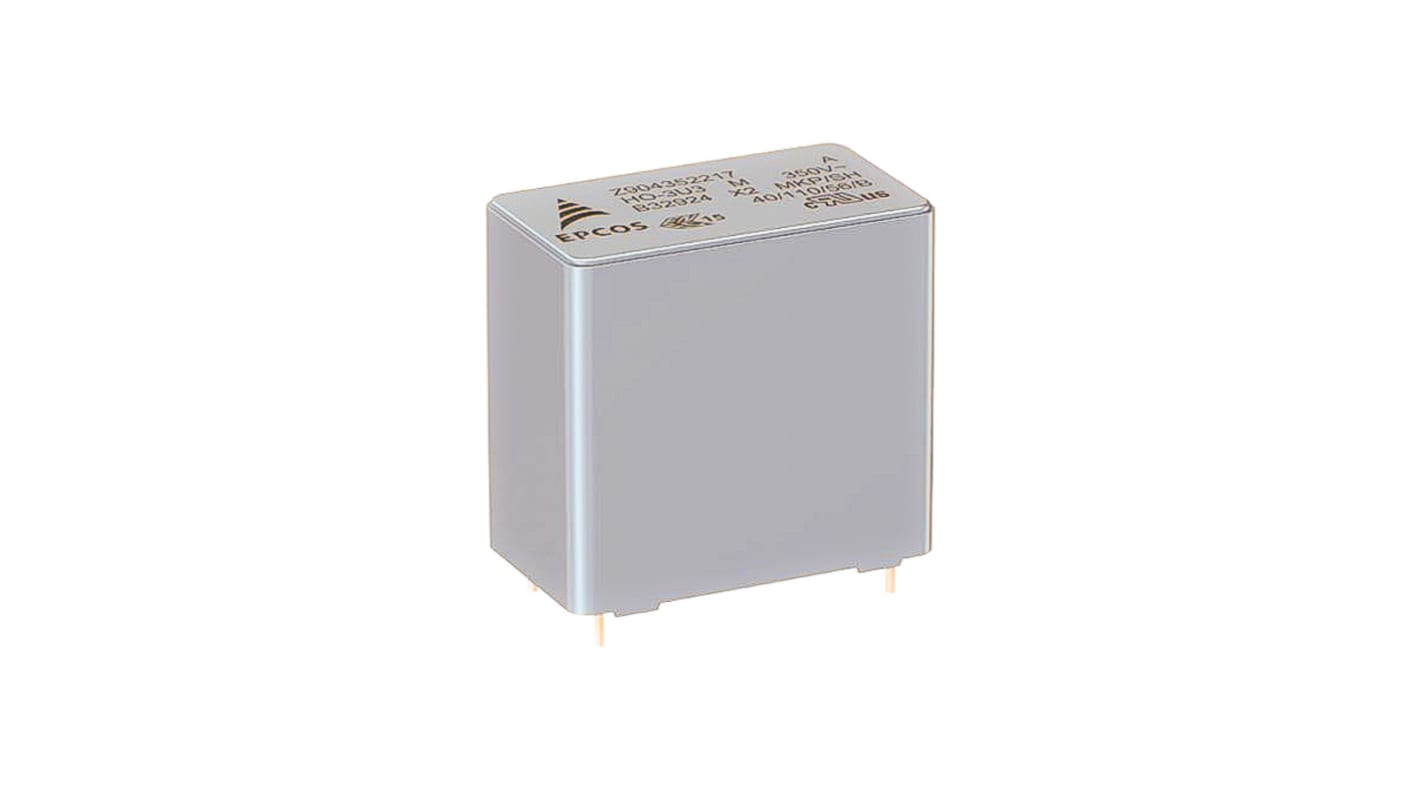

EPCOS B32924 Polypropylene Film Capacitor, 305V ac, ±20%, 3.3μF, Through Hole
- RS Stock No.:
- 194-3443
- Mfr. Part No.:
- B32924H3335M000
- Brand:
- EPCOS
Bulk discount available
Subtotal (1 pack of 2 units)*
£7.08
(exc. VAT)
£8.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 730 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
2 - 18 | £3.54 | £7.08 |
20 - 48 | £3.345 | £6.69 |
50 - 98 | £3.115 | £6.23 |
100 - 198 | £2.865 | £5.73 |
200 + | £2.66 | £5.32 |
*price indicative
- RS Stock No.:
- 194-3443
- Mfr. Part No.:
- B32924H3335M000
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EPCOS | |
Capacitance | 3.3µF | |
Voltage | 305V ac | |
Mounting Type | Through Hole | |
Tolerance | ±20% | |
Series | B32924 | |
Lead Pitch | 27.5mm | |
Automotive Standard | AEC-Q200D | |
Suppression Class | X2 | |
Length | 31.5mm | |
Depth | 19mm | |
Lead Length | 6mm | |
Height | 30mm | |
Dimensions | 31.5 x 19 x 30mm | |
Dielectric | Polypropylene | |
Dissipation Factor | 2 x 10^-3% | |
Maximum Operating Temperature | +110°C | |
Lead Diameter | 0.8mm | |
Select all | ||
---|---|---|
Brand EPCOS | ||
Capacitance 3.3µF | ||
Voltage 305V ac | ||
Mounting Type Through Hole | ||
Tolerance ±20% | ||
Series B32924 | ||
Lead Pitch 27.5mm | ||
Automotive Standard AEC-Q200D | ||
Suppression Class X2 | ||
Length 31.5mm | ||
Depth 19mm | ||
Lead Length 6mm | ||
Height 30mm | ||
Dimensions 31.5 x 19 x 30mm | ||
Dielectric Polypropylene | ||
Dissipation Factor 2 x 10^-3% | ||
Maximum Operating Temperature +110°C | ||
Lead Diameter 0.8mm | ||
- COO (Country of Origin):
- CN
Self-healing properties
High stability of capacitance value
Applications
X2 class for interference suppression
"Across the line" applications
Severe ambient conditions
For connections in series with the mains
Capacitive power supply
Energy meters
High stability of capacitance value
Applications
X2 class for interference suppression
"Across the line" applications
Severe ambient conditions
For connections in series with the mains
Capacitive power supply
Energy meters
