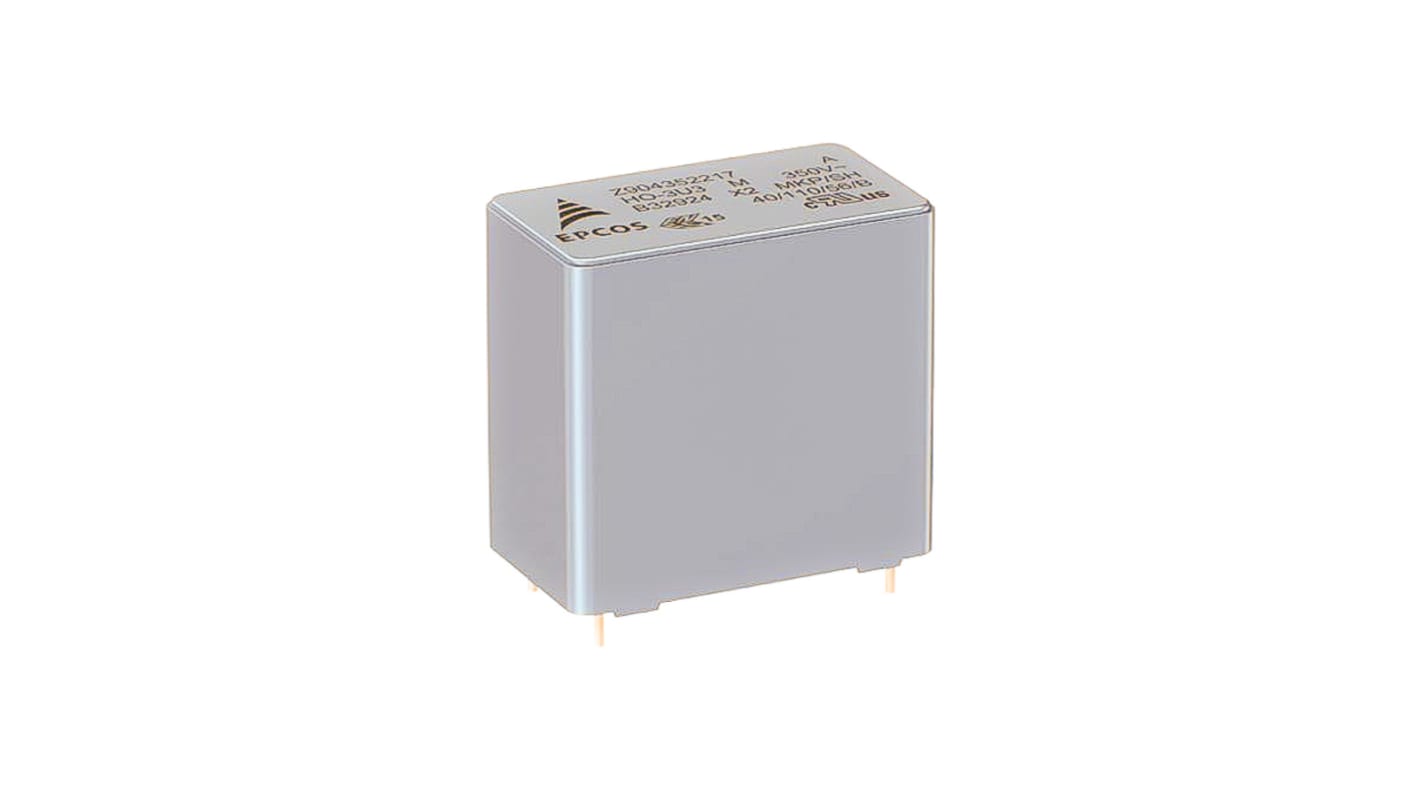

EPCOS B32926 Polypropylene Film Capacitor, 305V ac, ±10%, 10μF, Through Hole
- RS Stock No.:
- 194-3438
- Mfr. Part No.:
- B32926C3106K000
- Brand:
- EPCOS
Subtotal (1 box of 110 units)*
£440.00
(exc. VAT)
£528.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 440 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 110 + | £4.00 | £440.00 |
*price indicative
- RS Stock No.:
- 194-3438
- Mfr. Part No.:
- B32926C3106K000
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Capacitance | 10µF | |
| Voltage | 305V ac | |
| Mounting Type | Through Hole | |
| Tolerance | ±10% | |
| Series | B32926 | |
| Lead Pitch | 37.5mm | |
| Suppression Class | X2 | |
| Length | 41.5mm | |
| Depth | 28mm | |
| Lead Length | 6mm | |
| Height | 42.5mm | |
| Dimensions | 41.5 x 28 x 42.5mm | |
| Dielectric | Polypropylene | |
| Maximum Operating Temperature | +110°C | |
| Dissipation Factor | 2 x 10^-3% | |
| Lead Diameter | 1mm | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Capacitance 10µF | ||
Voltage 305V ac | ||
Mounting Type Through Hole | ||
Tolerance ±10% | ||
Series B32926 | ||
Lead Pitch 37.5mm | ||
Suppression Class X2 | ||
Length 41.5mm | ||
Depth 28mm | ||
Lead Length 6mm | ||
Height 42.5mm | ||
Dimensions 41.5 x 28 x 42.5mm | ||
Dielectric Polypropylene | ||
Maximum Operating Temperature +110°C | ||
Dissipation Factor 2 x 10^-3% | ||
Lead Diameter 1mm | ||
- COO (Country of Origin):
- CN
Very small dimensions
Self-healing properties
Applications
X2 class for interference suppression
"Across the line" applications
Self-healing properties
Applications
X2 class for interference suppression
"Across the line" applications
