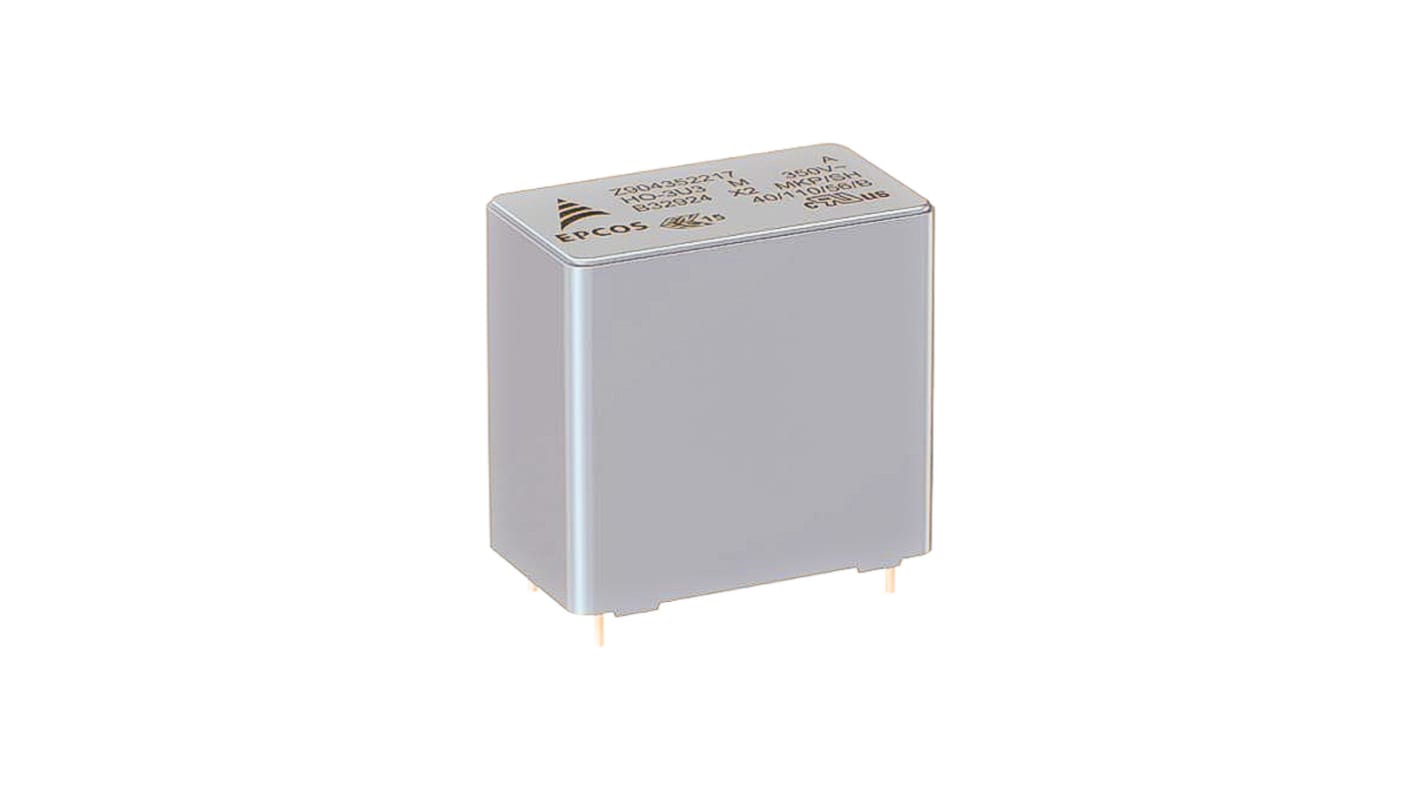

EPCOS B32922 Polypropylene Film Capacitor, 305V ac, ±20%, 100nF, Through Hole

View all Film Capacitors

Subtotal (1 pack of 20 units)*

£6.00

(exc. VAT)

£7.20

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 13,820 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
20 +£0.30£6.00

*price indicative

RS Stock No.:
194-3435
Mfr. Part No.:
B32922H3104M000
Brand:
EPCOS
Find similar products by selecting one or more attributes.
Select all

Brand

EPCOS

Capacitance

100nF

Voltage

305V ac

Mounting Type

Through Hole

Tolerance

±20%

Series

B32922

Lead Pitch

15mm

Automotive Standard

AEC-Q200D

Suppression Class

X2

Length

18mm

Depth

6mm

Lead Length

6mm

Height

11mm

Dimensions

18 x 6 x 11mm

Dielectric

Polypropylene

Lead Diameter

0.8mm

Maximum Operating Temperature

+110°C

Dissipation Factor

1 x 10^-3%

COO (Country of Origin):
CN

B32921...B32926 Series


EMI suppression capacitors (MKP) X2 class
Very small dimensions
Self-healing properties
Plastic case, epoxy resin sealing (UL 94 V-0)
"Across the line" applications

Warning

Capacitors X class are designed for connecting directly across a mains supply, but should NOT be used in positions where failure of a capacitor would expose anybody to electric shock.
Self-healing properties
High stability of capacitance value
Applications
X2 class for interference suppression
"Across the line" applications
Severe ambient conditions
For connections in series with the mains
Capacitive power supply
Energy meters
