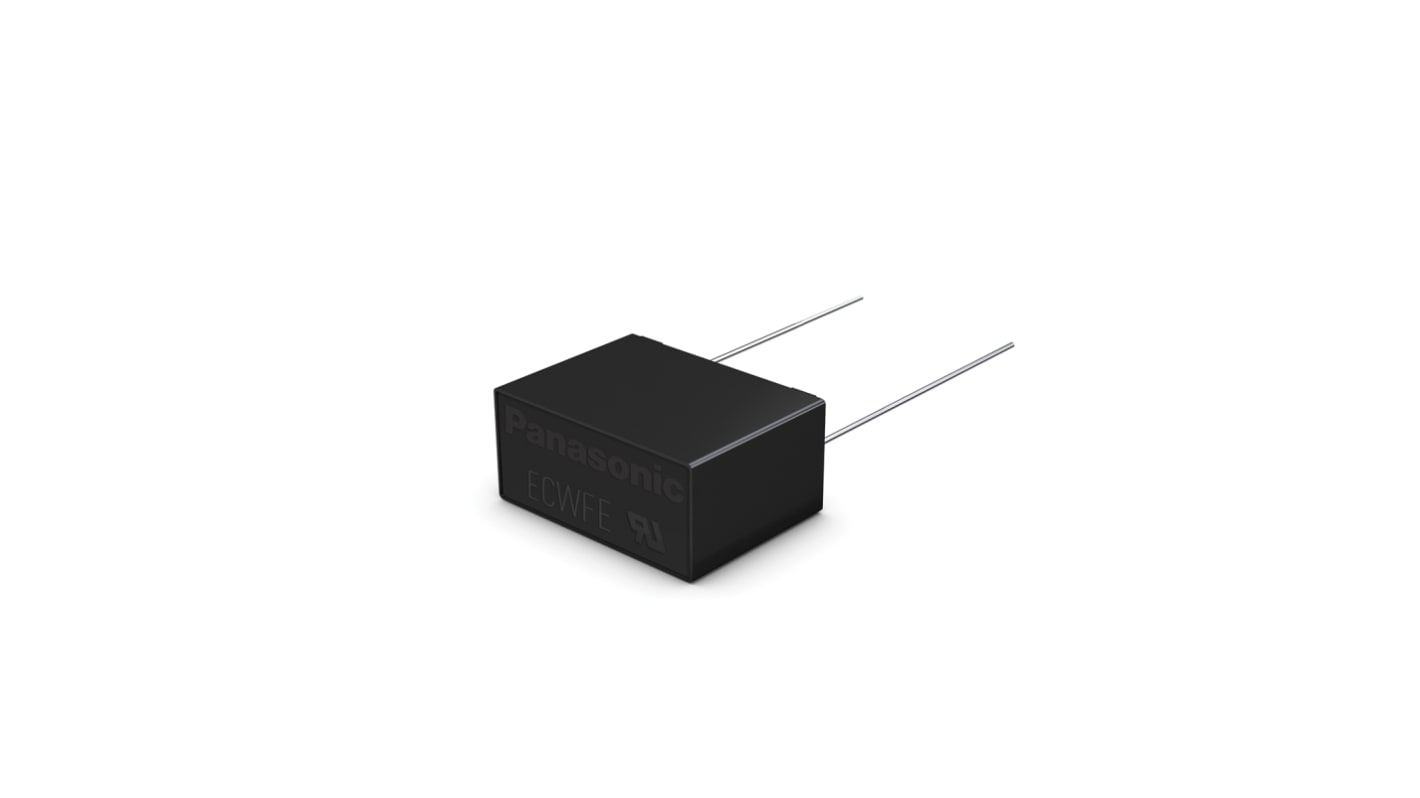

Panasonic ECWFE Polypropylene Film Capacitor, 630V dc, ±5%, 1μF, Through Hole
- RS Stock No.:
- 188-9404
- Mfr. Part No.:
- ECWFE2J105PD
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 bag of 400 units)*
£176.40
(exc. VAT)
£211.60
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 400 - 400 | £0.441 | £176.40 |
| 800 + | £0.428 | £171.20 |
*price indicative
- RS Stock No.:
- 188-9404
- Mfr. Part No.:
- ECWFE2J105PD
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 1µF | |
| Voltage | 630V dc | |
| Mounting Type | Through Hole | |
| Tolerance | ±5% | |
| Series | ECWFE | |
| Lead Pitch | 27.5mm | |
| Length | 31mm | |
| Depth | 9mm | |
| Lead Length | 4mm | |
| Height | 19mm | |
| Dimensions | 31 x 9 x 19mm | |
| Dielectric | Polypropylene | |
| Maximum Operating Temperature | +105°C | |
| Dissipation Factor | 0.1 % @ 1 kHz | |
| Minimum Operating Temperature | -40°C | |
| Lead Diameter | 0.8mm | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 1µF | ||
Voltage 630V dc | ||
Mounting Type Through Hole | ||
Tolerance ±5% | ||
Series ECWFE | ||
Lead Pitch 27.5mm | ||
Length 31mm | ||
Depth 9mm | ||
Lead Length 4mm | ||
Height 19mm | ||
Dimensions 31 x 9 x 19mm | ||
Dielectric Polypropylene | ||
Maximum Operating Temperature +105°C | ||
Dissipation Factor 0.1 % @ 1 kHz | ||
Minimum Operating Temperature -40°C | ||
Lead Diameter 0.8mm | ||
- COO (Country of Origin):
- CN
Non-inductive construction using metallized Polypropylene film with flame retardant plastic case.
Small size
Excellent frequency characteristics
Low loss
Flame retardant plastic case and non-combustible resin
Low hum sound noise
Active filter circuit
High frequency circuit
Excellent frequency characteristics
Low loss
Flame retardant plastic case and non-combustible resin
Low hum sound noise
Active filter circuit
High frequency circuit
