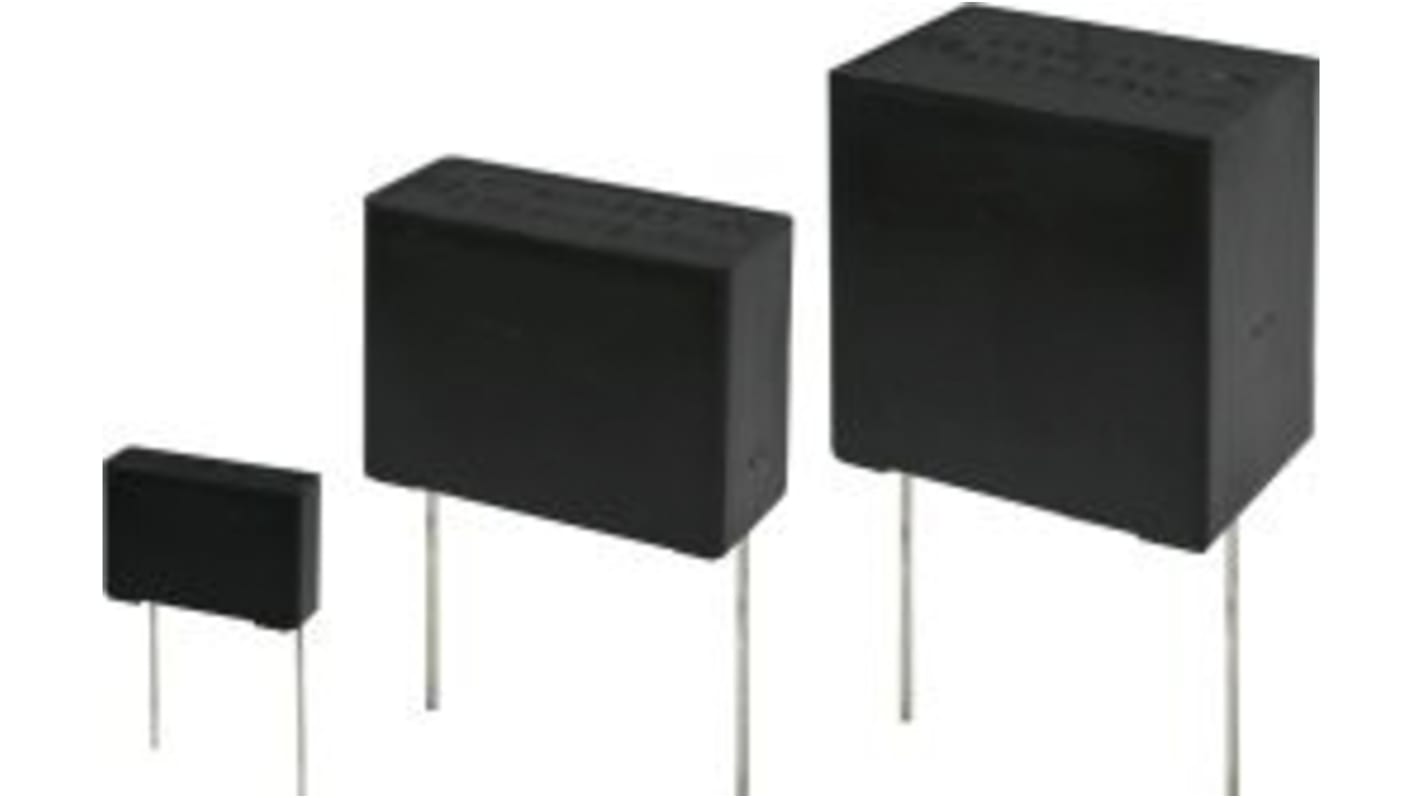

Panasonic ECQUA Metallised Polypropylene Film Capacitor, 275 V ac, 310 V ac, ±10%, 470nF, Through Hole
- RS Stock No.:
- 180-4746
- Mfr. Part No.:
- ECQUAAF474T1
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 box of 600 units)*
£563.40
(exc. VAT)
£676.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 600 - 1200 | £0.939 | £563.40 |
| 1800 + | £0.913 | £547.80 |
*price indicative
- RS Stock No.:
- 180-4746
- Mfr. Part No.:
- ECQUAAF474T1
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 470nF | |
| Voltage | 275 V ac, 310 V ac | |
| Mounting Type | Through Hole | |
| Tolerance | ±10% | |
| Series | ECQUA | |
| Automotive Standard | AEC-Q200 | |
| Lead Pitch | 22.5mm | |
| Suppression Class | X2 | |
| Length | 26mm | |
| Lead Length | 20mm | |
| Depth | 8.5mm | |
| Height | 15mm | |
| Dimensions | 26 x 8.5 x 15mm | |
| Dielectric | Metallised Polypropylene | |
| Terminal Type | Solder | |
| Dissipation Factor | 0.1% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +110°C | |
| Lead Diameter | 0.8mm | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 470nF | ||
Voltage 275 V ac, 310 V ac | ||
Mounting Type Through Hole | ||
Tolerance ±10% | ||
Series ECQUA | ||
Automotive Standard AEC-Q200 | ||
Lead Pitch 22.5mm | ||
Suppression Class X2 | ||
Length 26mm | ||
Lead Length 20mm | ||
Depth 8.5mm | ||
Height 15mm | ||
Dimensions 26 x 8.5 x 15mm | ||
Dielectric Metallised Polypropylene | ||
Terminal Type Solder | ||
Dissipation Factor 0.1% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +110°C | ||
Lead Diameter 0.8mm | ||
- COO (Country of Origin):
- CN
High safety (safety function installed)
High humidity resistance (THB test : 85 °C, 85 %, 240 V.AC, 1000 h )
High Thermal shock resistance （-40 ⇔ 85℃，1000 cycles）
Flame-retardant plastic case and non-combustible resin
Interference suppressors for automotive
High humidity resistance (THB test : 85 °C, 85 %, 240 V.AC, 1000 h )
High Thermal shock resistance （-40 ⇔ 85℃，1000 cycles）
Flame-retardant plastic case and non-combustible resin
Interference suppressors for automotive
