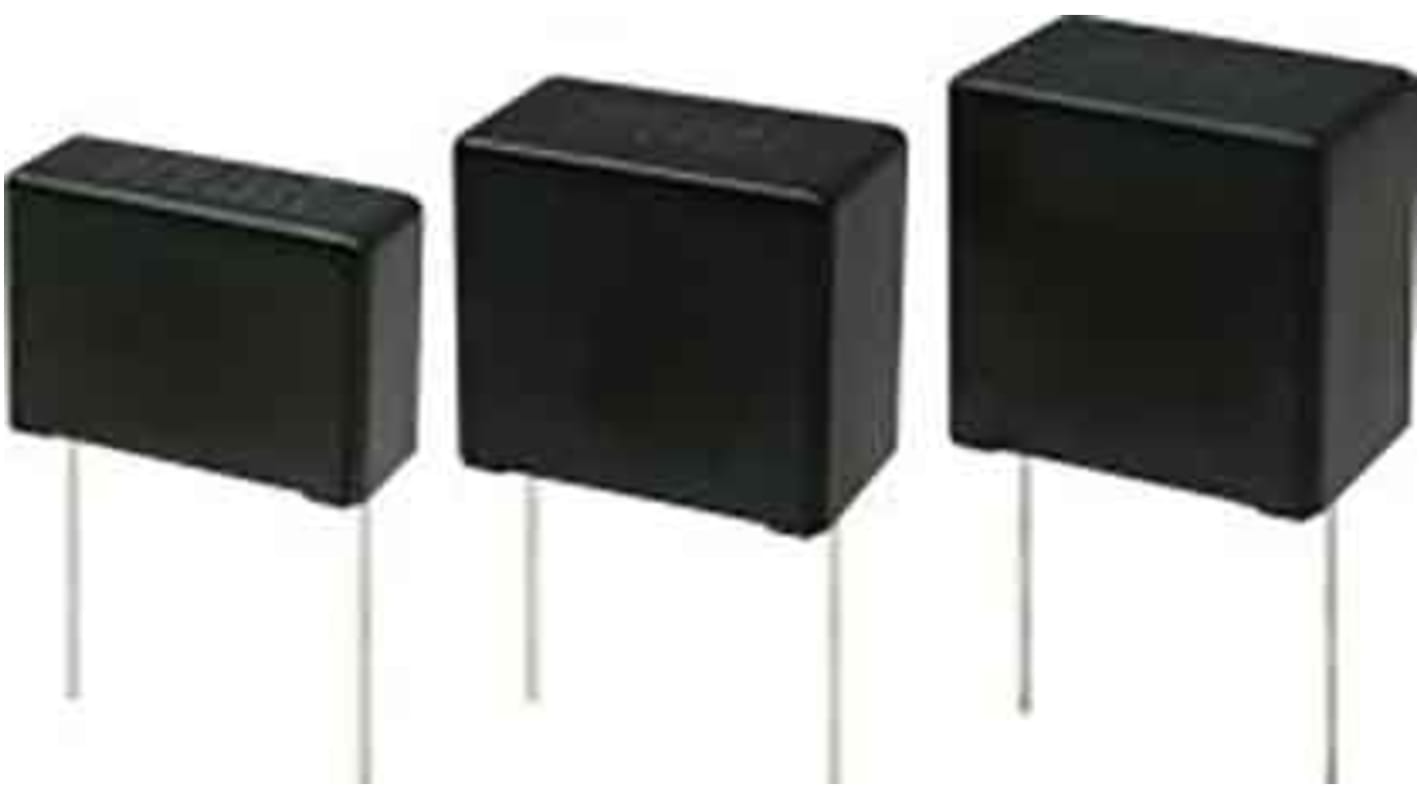

Panasonic ECWFG Metallised Polypropylene Film Capacitor, 630V dc, ±5%, 3μF, Through Hole
- RS Stock No.:
- 180-4309
- Mfr. Part No.:
- ECWFG2J305P1
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 5 units)*
£10.56
(exc. VAT)
£12.67
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 275 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 20 | £2.112 | £10.56 |
25 - 70 | £1.904 | £9.52 |
75 - 145 | £1.784 | £8.92 |
150 + | £1.662 | £8.31 |
*price indicative
- RS Stock No.:
- 180-4309
- Mfr. Part No.:
- ECWFG2J305P1
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Panasonic | |
Capacitance | 3µF | |
Voltage | 630V dc | |
Mounting Type | Through Hole | |
Tolerance | ±5% | |
Series | ECWFG | |
Lead Pitch | 22.5mm | |
Automotive Standard | AEC-Q200 | |
Length | 27mm | |
Lead Length | 20mm | |
Depth | 17.5mm | |
Height | 26.5mm | |
Dimensions | 27 x 17.5 x 26.5mm | |
Dielectric | Metallised Polypropylene | |
Terminal Type | Solder | |
Dissipation Factor | 0.1% | |
Lead Diameter | 1mm | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +110°C | |
Select all | ||
---|---|---|
Brand Panasonic | ||
Capacitance 3µF | ||
Voltage 630V dc | ||
Mounting Type Through Hole | ||
Tolerance ±5% | ||
Series ECWFG | ||
Lead Pitch 22.5mm | ||
Automotive Standard AEC-Q200 | ||
Length 27mm | ||
Lead Length 20mm | ||
Depth 17.5mm | ||
Height 26.5mm | ||
Dimensions 27 x 17.5 x 26.5mm | ||
Dielectric Metallised Polypropylene | ||
Terminal Type Solder | ||
Dissipation Factor 0.1% | ||
Lead Diameter 1mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +110°C | ||
- COO (Country of Origin):
- CN
High safety(with safety function)
High moisture resistance(85℃, 85%, 500 V.DC, 1000 h)
High thermal shock resistance(-55℃ ⇔ 85℃, 1000 cycles)
High temperature load test(125℃, 450 V.DC, 1000 h)
Flame-retardant plastic case and non-combustible resin
DC/DC, AC/DC converter circuit in xEV
High frequency and high current circuits
High moisture resistance(85℃, 85%, 500 V.DC, 1000 h)
High thermal shock resistance(-55℃ ⇔ 85℃, 1000 cycles)
High temperature load test(125℃, 450 V.DC, 1000 h)
Flame-retardant plastic case and non-combustible resin
DC/DC, AC/DC converter circuit in xEV
High frequency and high current circuits
