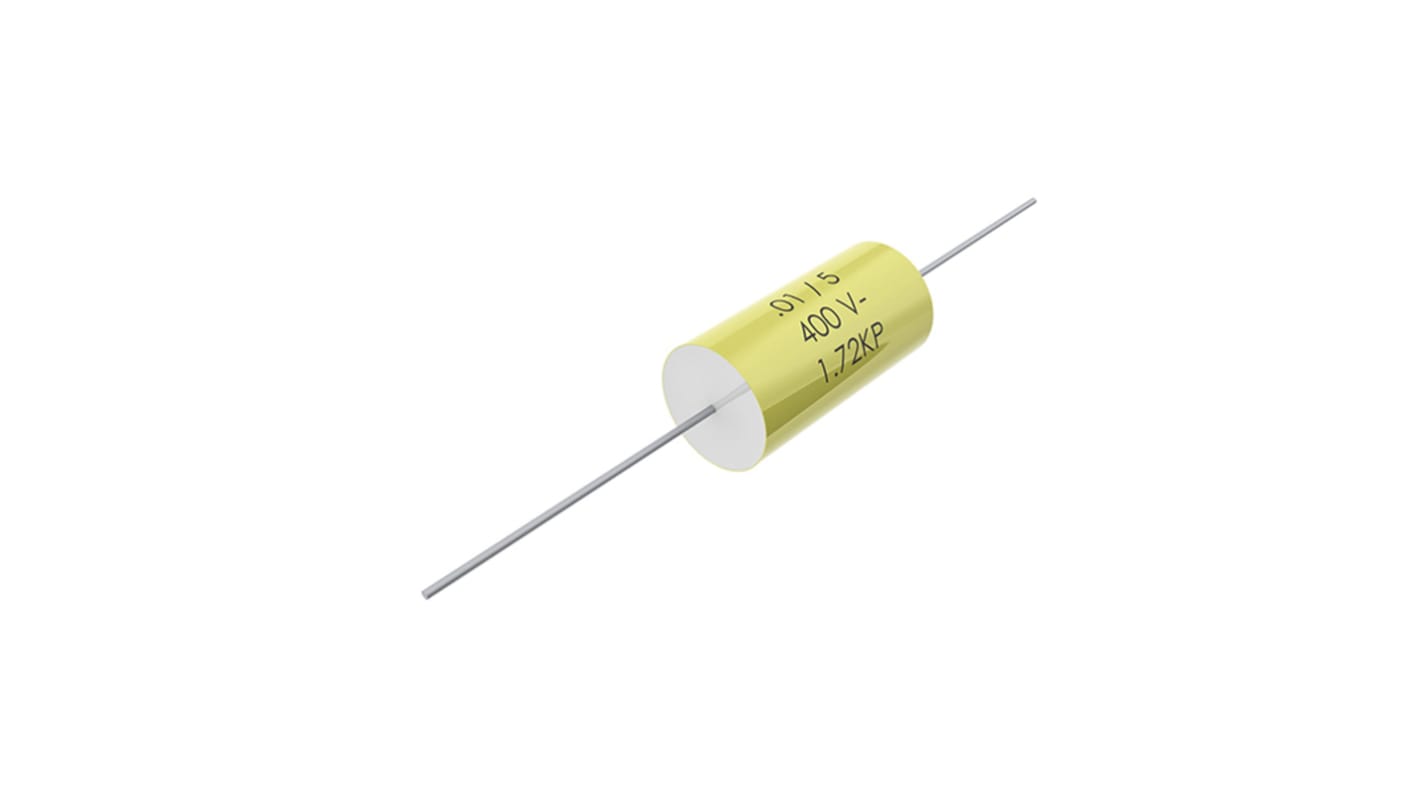

KEMET A72 Film Capacitor, ±10 %, 4.7 nF 1000 V dc 400V ac, Through Hole
- RS Stock No.:
- 174-6310
- Mfr. Part No.:
- A72QK1470AA02K
- Brand:
- KEMET
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 2 units)*
£22.72
(exc. VAT)
£27.26
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Plus 54 unit(s) shipping from 08 June 2026
- Plus 10 unit(s) shipping from 08 June 2026
- Final 188 unit(s) shipping from 15 June 2026
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 48 | £11.36 | £22.72 |
| 50 - 98 | £7.715 | £15.43 |
| 100 - 248 | £6.975 | £13.95 |
| 250 - 498 | £6.625 | £13.25 |
| 500 + | £6.25 | £12.50 |
*price indicative
- RS Stock No.:
- 174-6310
- Mfr. Part No.:
- A72QK1470AA02K
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 4.7nF | |
| Product Type | Film Capacitor | |
| Mount Type | Through Hole | |
| Tolerance | ±10 % | |
| Rated AC Voltage | 400V ac | |
| Series | A72 | |
| Rated DC Voltage | 1000V dc | |
| Automotive Standard | No | |
| Terminal Type | Axial | |
| Application | High Frequency | |
| Lead Length | 40mm | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Length | 20.5mm | |
| Standards/Approvals | UL, IEC 60384-13 | |
| Width | 9.5mm | |
| Dissipation Factor | 0.1% | |
| Package/Case | Plastic | |
| Lead Diameter | 0.8mm | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 4.7nF | ||
Product Type Film Capacitor | ||
Mount Type Through Hole | ||
Tolerance ±10 % | ||
Rated AC Voltage 400V ac | ||
Series A72 | ||
Rated DC Voltage 1000V dc | ||
Automotive Standard No | ||
Terminal Type Axial | ||
Application High Frequency | ||
Lead Length 40mm | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Length 20.5mm | ||
Standards/Approvals UL, IEC 60384-13 | ||
Width 9.5mm | ||
Dissipation Factor 0.1% | ||
Package/Case Plastic | ||
Lead Diameter 0.8mm | ||
- COO (Country of Origin):
- IT
The A72 Series is constructed of polypropylene film and metal foil or etallized film and metal foil with axial leads of tinned wire. The axial leads are electrically welded to the metal layer on the ends of the capacitor winding. The capacitor is encapsulated in a polyester tape wrapping case with thermosetting resin material. Two different winding constructions are used depending on voltage parameters. Please see the Performance Characteristics for more information.
Voltage range: 100 – 2,000 VDC
Capacitance range: 47 pF – 0.33 μF
Diameter: 5 – 22.5 mm
Length: 11 – 33 mm
Capacitance tolerance: ±5%, ±10%, ±20%
Operating temperature range of −55°C to +105°C
Lead-free terminations
Tape and reel packaging
Self-healing
