KEMET C4AQ Metallised Polypropylene Film Capacitor, 500V dc, ±10%, 130μF
- RS Stock No.:
- 174-4338
- Mfr. Part No.:
- C4AQLBW6130A3NK
- Brand:
- KEMET
20 In stock - FREE next working day delivery available
Added
Price Each
£15.82
(exc. VAT)
£18.98
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £15.82 |
| 5 - 9 | £14.71 |
| 10 - 24 | £13.76 |
| 25 - 49 | £12.81 |
| 50 + | £11.55 |
- RS Stock No.:
- 174-4338
- Mfr. Part No.:
- C4AQLBW6130A3NK
- Brand:
- KEMET
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

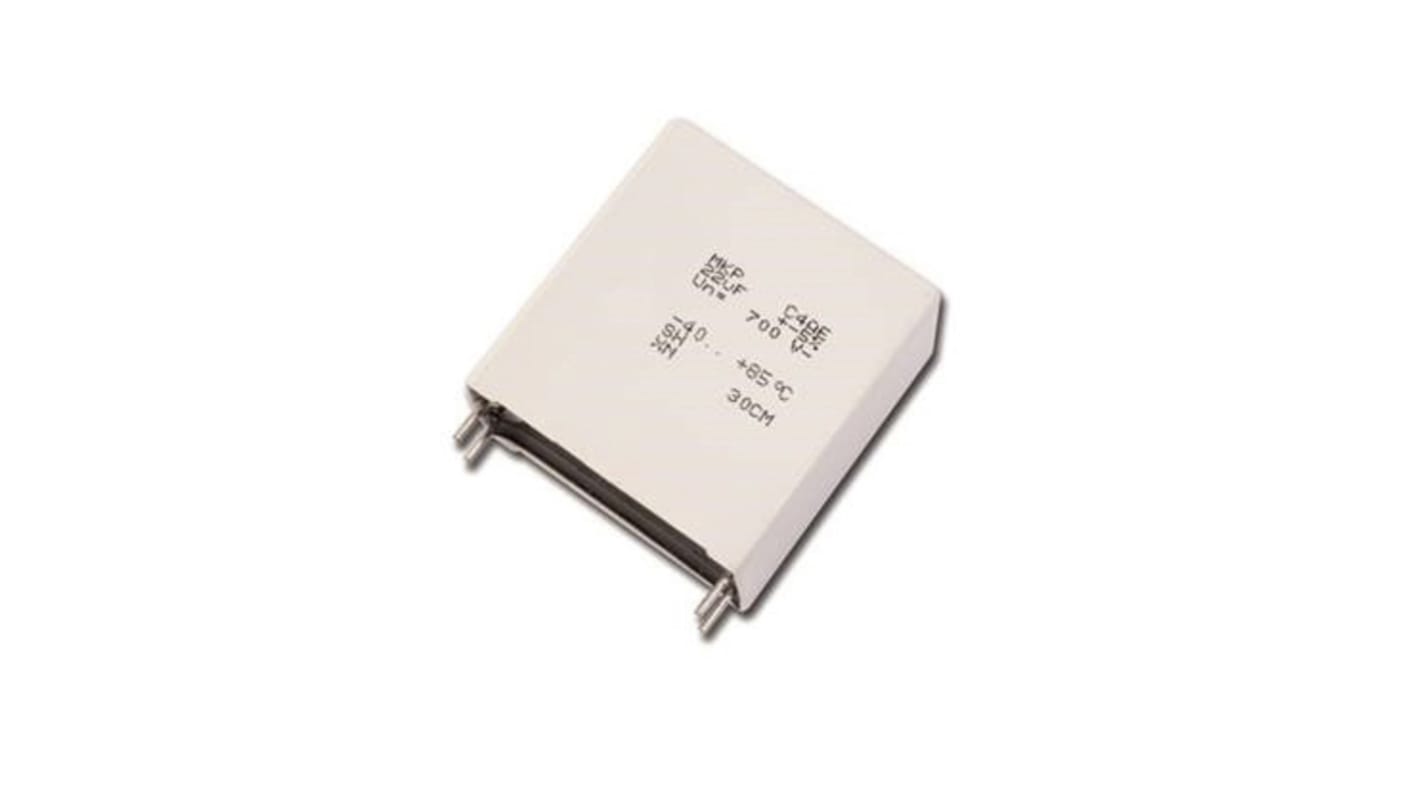

The KEMET C4AQLBW6130A3NK capacitor is a polypropylene metallized film capacitor with a rectangular, plastic box-type design (whiter grey in colour) filled with resin, and uses 2 or 4 tinned copper wires.
Self-healing
Low loss
High ripple current
High capacitance density
High contact reliability
Low loss
High ripple current
High capacitance density
High contact reliability
Specifications
Attribute | Value |
|---|---|
| Capacitance | 130µF |
| Voltage | 500V dc |
| Tolerance | ±10% |
| Series | C4AQ |
| Lead Pitch | 52.5mm |
| Automotive Standard | AEC-Q200 |
| Length | 57.5mm |
| Depth | 35mm |
| Lead Length | 6mm |
| Equivalent Series Resistance | 2.4mΩ |
| Height | 50mm |
| Dimensions | 57.5 x 35 x 50mm |
| Dielectric | Metallised Polypropylene |
| Terminal Type | Radial |
| Dissipation Factor | 0.02% |
| Minimum Operating Temperature | -40°C |
| Lead Diameter | 1.2mm |
| Maximum Operating Temperature | +105°C |
