KEMET C4AQ Metallised Polypropylene Film Capacitor, 500V dc, ±10%, 100μF
- RS Stock No.:
- 174-4333
- Mfr. Part No.:
- C4AQLBW6100A3MK
- Brand:
- KEMET
Available to back order for despatch 21/06/2024
Added
Price Each (In a Bag of 27)
£19.776
(exc. VAT)
£23.731
(inc. VAT)
| Units | Per unit | Per Bag* |
| 27 + | £19.776 | £533.952 |
| *price indicative | ||
- RS Stock No.:
- 174-4333
- Mfr. Part No.:
- C4AQLBW6100A3MK
- Brand:
- KEMET
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

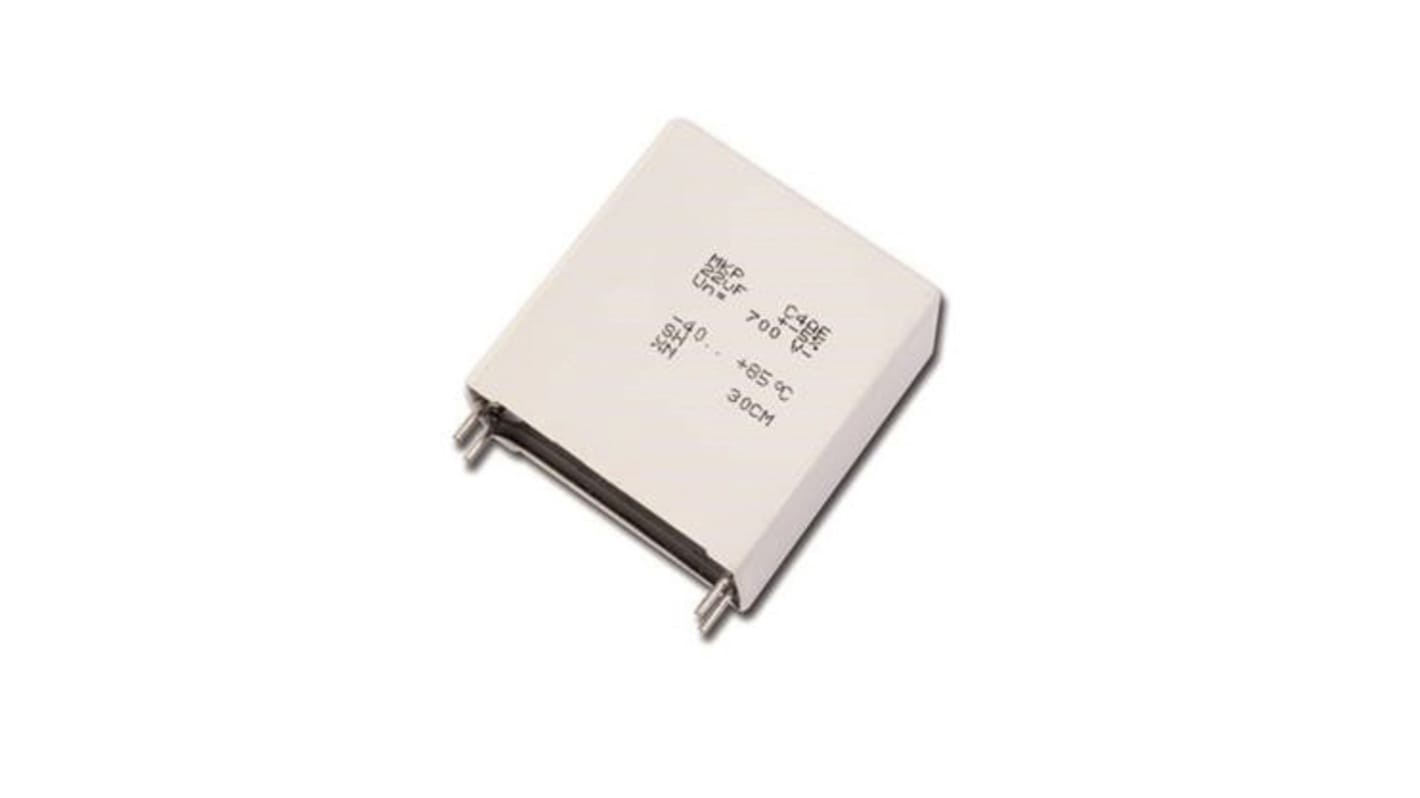

The KEMET C4AQLBW6100A3MK capacitor is a polypropylene metallized film capacitor with a rectangular, plastic box-type design (whiter grey in colour) filled with resin, and uses 2 or 4 tinned copper wires.
Self-healing
Low loss
High ripple current
High capacitance density
High contact reliability
Low loss
High ripple current
High capacitance density
High contact reliability
Specifications
Attribute | Value |
|---|---|
| Capacitance | 100µF |
| Voltage | 500V dc |
| Tolerance | ±10% |
| Series | C4AQ |
| Automotive Standard | AEC-Q200 |
| Lead Pitch | 52.5mm |
| Length | 57.5mm |
| Depth | 30mm |
| Lead Length | 6mm |
| Equivalent Series Resistance | 3mΩ |
| Height | 45mm |
| Dimensions | 57.5 x 30 x 45mm |
| Dielectric | Metallised Polypropylene |
| Terminal Type | Radial |
| Maximum Operating Temperature | +105°C |
| Lead Diameter | 1.2mm |
| Minimum Operating Temperature | -40°C |
| Dissipation Factor | 0.02% |
