KEMET C4AQ Metallised Polypropylene Film Capacitor, 1.3kV dc, ±5%, 10μF
- RS Stock No.:
- 174-4293
- Mfr. Part No.:
- C4AQUBW5100A3JJ
- Brand:
- KEMET
Bulk discount available
Subtotal (1 bag of 36 units)*
£127.08
(exc. VAT)
£152.64
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 72 unit(s) shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 36 - 72 | £3.53 | £127.08 |
| 108 + | £3.004 | £108.14 |
*price indicative
- RS Stock No.:
- 174-4293
- Mfr. Part No.:
- C4AQUBW5100A3JJ
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 10µF | |
| Voltage | 1.3kV dc | |
| Tolerance | ±5% | |
| Series | C4AQ | |
| Lead Pitch | 37.5mm | |
| Automotive Standard | AEC-Q200 | |
| Length | 42mm | |
| Depth | 28mm | |
| Lead Length | 6mm | |
| Height | 37mm | |
| Equivalent Series Resistance | 6.3mΩ | |
| Dimensions | 42 x 28 x 37mm | |
| Dielectric | Metallised Polypropylene | |
| Terminal Type | Radial | |
| Dissipation Factor | 0.02% | |
| Lead Diameter | 1.2mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 10µF | ||
Voltage 1.3kV dc | ||
Tolerance ±5% | ||
Series C4AQ | ||
Lead Pitch 37.5mm | ||
Automotive Standard AEC-Q200 | ||
Length 42mm | ||
Depth 28mm | ||
Lead Length 6mm | ||
Height 37mm | ||
Equivalent Series Resistance 6.3mΩ | ||
Dimensions 42 x 28 x 37mm | ||
Dielectric Metallised Polypropylene | ||
Terminal Type Radial | ||
Dissipation Factor 0.02% | ||
Lead Diameter 1.2mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- CN

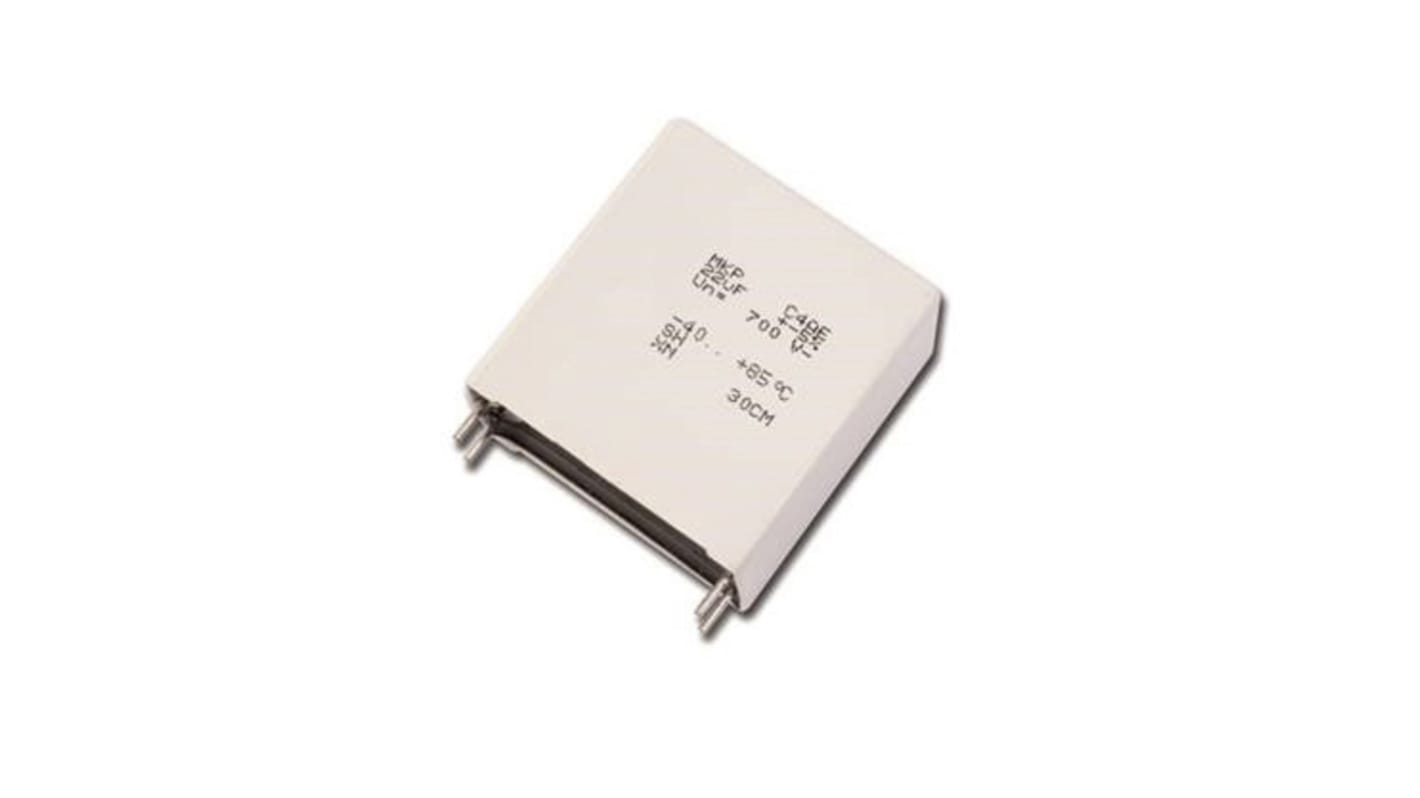

The KEMET C4AQUBW5100A3JJ capacitor is a polypropylene metallized film capacitor with a rectangular, plastic box-type design (whiter grey in colour) filled with resin, and uses 2 or 4 tinned copper wires.
Self-healing
Low loss
High ripple current
High capacitance density
High contact reliability
Low loss
High ripple current
High capacitance density
High contact reliability
