KEMET C4AQ Metallised Polypropylene Film Capacitor, 1.3kV dc, ±5%, 27μF
- RS Stock No.:
- 174-4316
- Mfr. Part No.:
- C4AQUBW5270A3NJ
- Brand:
- KEMET
Bulk discount available
Subtotal (1 bag of 23 units)*
£164.22
(exc. VAT)
£197.11
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 23 - 46 | £7.14 | £164.22 |
| 69 + | £6.426 | £147.80 |
*price indicative
- RS Stock No.:
- 174-4316
- Mfr. Part No.:
- C4AQUBW5270A3NJ
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 27µF | |
| Voltage | 1.3kV dc | |
| Tolerance | ±5% | |
| Series | C4AQ | |
| Lead Pitch | 52.5mm | |
| Automotive Standard | AEC-Q200 | |
| Length | 57.5mm | |
| Lead Length | 6mm | |
| Depth | 35mm | |
| Height | 50mm | |
| Equivalent Series Resistance | 4.9mΩ | |
| Dimensions | 57.5 x 35 x 50mm | |
| Dielectric | Metallised Polypropylene | |
| Terminal Type | Radial | |
| Dissipation Factor | 0.02% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Lead Diameter | 1.2mm | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 27µF | ||
Voltage 1.3kV dc | ||
Tolerance ±5% | ||
Series C4AQ | ||
Lead Pitch 52.5mm | ||
Automotive Standard AEC-Q200 | ||
Length 57.5mm | ||
Lead Length 6mm | ||
Depth 35mm | ||
Height 50mm | ||
Equivalent Series Resistance 4.9mΩ | ||
Dimensions 57.5 x 35 x 50mm | ||
Dielectric Metallised Polypropylene | ||
Terminal Type Radial | ||
Dissipation Factor 0.02% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Lead Diameter 1.2mm | ||
- COO (Country of Origin):
- CN

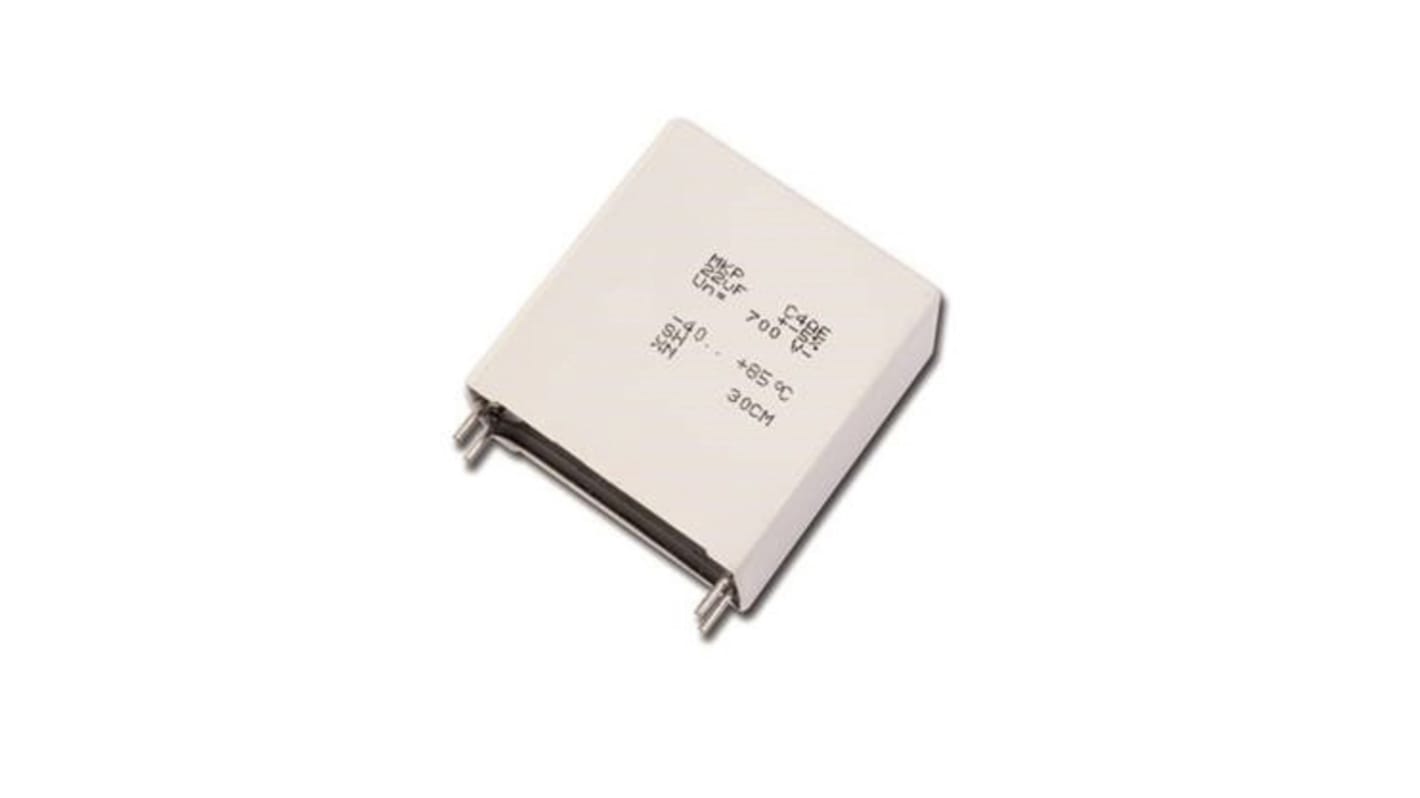

The KEMET C4AQUBW5270A3NJ capacitor is a polypropylene metallized film capacitor with a rectangular, plastic box-type design (whiter grey in colour) filled with resin, and uses 2 or 4 tinned copper wires.
Self-healing
Low loss
High ripple current
High capacitance density
High contact reliability
Low loss
High ripple current
High capacitance density
High contact reliability
