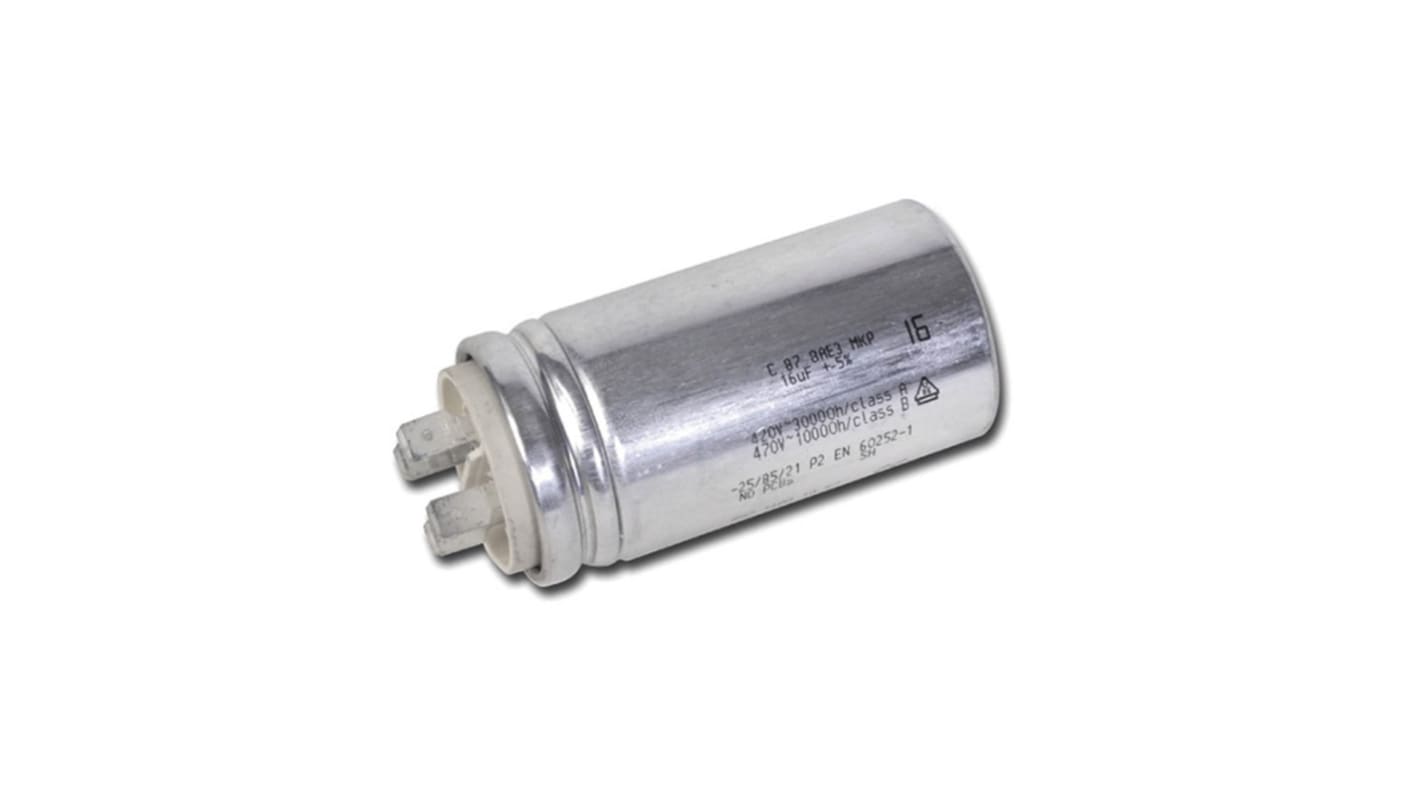

KEMET C28 Polypropylene Film Capacitor, 470V ac, ±5%, 5μF, Cable Mount
- RS Stock No.:
- 173-6225
- Mfr. Part No.:
- C284ACA4500AL0J
- Brand:
- KEMET
46 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 2)
£6.28
(exc. VAT)
£7.54
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 8 | £6.28 | £12.56 |
| 10 - 18 | £5.595 | £11.19 |
| 20 - 28 | £5.315 | £10.63 |
| 30 - 52 | £5.05 | £10.10 |
| 54 + | £4.885 | £9.77 |
| *price indicative | ||
- RS Stock No.:
- 173-6225
- Mfr. Part No.:
- C284ACA4500AL0J
- Brand:
- KEMET
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- BG
Product Details
C28 is a film capacitor manufactured with segmented metallization to improve reliability. The film winding is placed in a plastic cylinder and then filled with resin. The terminal options include FASTON tabs on a plastic deck or cable terminals.
Self-healing
Rated frequency of 50 Hz and 60 Hz
High capacitance density
Safety protection
Applications
Typical applications include motor run S3 safety class,
including single-phase motors, low power electric motors
and compressors.
Rated frequency of 50 Hz and 60 Hz
High capacitance density
Safety protection
Applications
Typical applications include motor run S3 safety class,
including single-phase motors, low power electric motors
and compressors.
Specifications
Attribute | Value |
|---|---|
| Capacitance | 5µF |
| Voltage | 470V ac |
| Mounting Type | Cable Mount |
| Tolerance | ±5% |
| Series | C28 |
| Length | 55mm |
| Depth | 30mm |
| Lead Length | 300mm |
| Dimensions | 30 Dia. x 55mm |
| Dielectric | Polypropylene |
| Terminal Type | Solder Lug |
| Dissipation Factor | 20 x 10^-4% |
| Maximum Operating Temperature | +85°C |
| Lead Diameter | 2.4mm |
| Minimum Operating Temperature | -25°C |
