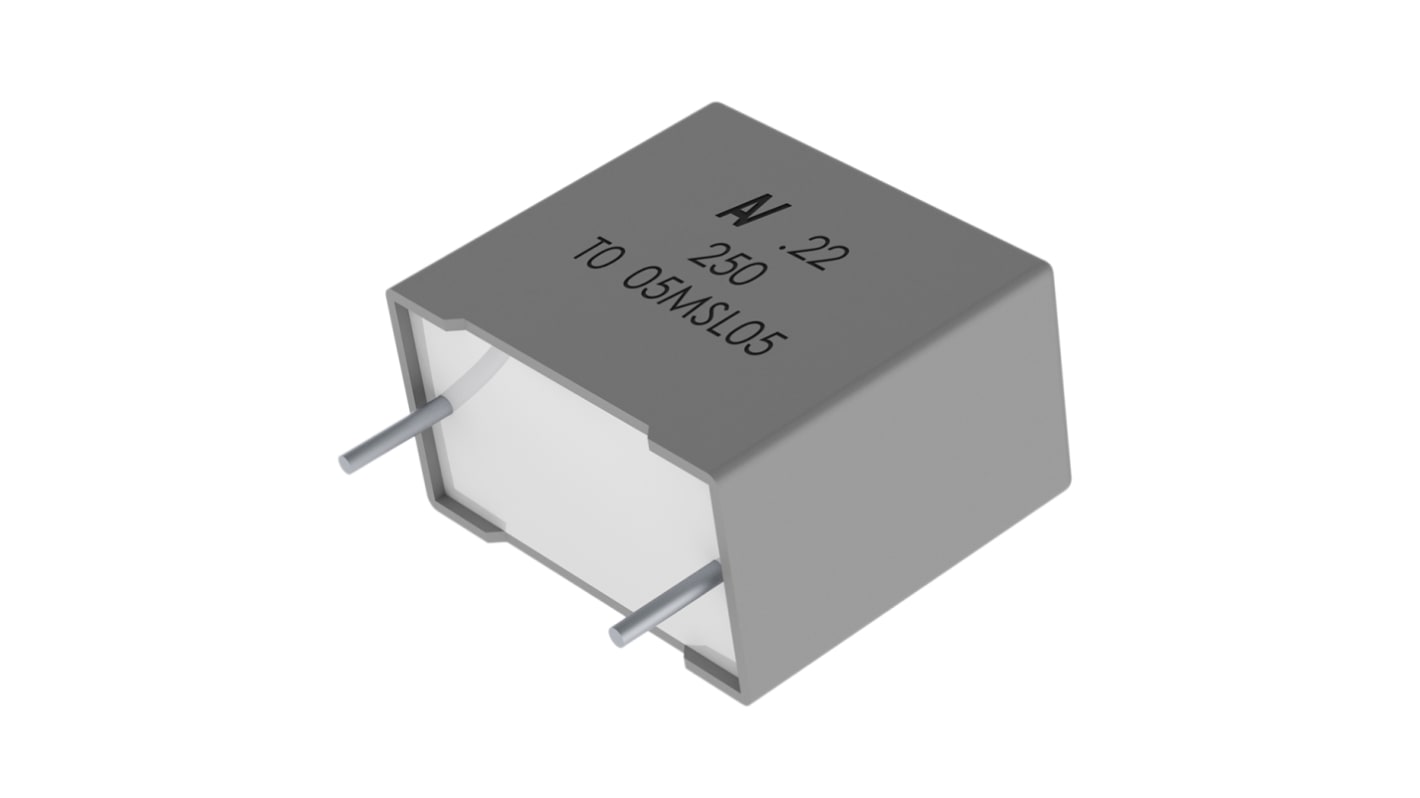

KEMET R60 Polyester Film Capacitor, 220 V ac, 630 V dc, ±5%, 330nF, Through Hole

Subtotal (1 bag of 396 units)*

£199.584

(exc. VAT)

£239.58

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 03 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
396 +£0.504£199.58

*price indicative

RS Stock No.:
172-6636
Mfr. Part No.:
R60PN3330AA30J
Brand:
KEMET
Find similar products by selecting one or more attributes.
Select all

Brand

KEMET

Capacitance

330nF

Voltage

220 V ac, 630 V dc

Mounting Type

Through Hole

Tolerance

±5%

Series

R60

Lead Pitch

22.5mm

Length

26.5mm

Depth

10mm

Height

18.5mm

Dimensions

10 x 18.5 x 26.5mm

Dielectric

Polyester

Lead Diameter

0.8mm

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

+105°C

KEMET R60 Series


KEMET R60 Series polyester capacitors are designed with radial lead of tinned wire. The capacitors are electrically welded to the contact metal layer on the ends of the capacitor winding and covered in a self-extinguishing solvent resistant plastic case with thermosetting resin material meeting the UL 94V–0 requirements.

Features


Voltage range: 50 to 1000 V dc
Capacitance range: 0.001 μF – 150.0 μF
Lead spacing: 10.0 to 37.5 mm
Capacitance tolerance: ±5%, ±10%, ±20%
Climatic category: 55/105/56
Operating temperature range of -55˚C to +105˚C Tape and reel packaging in accordance with IEC 60286–2
Self-healing
Automotive (AEC–Q200) grades available up to pitch 22.5 mm

Applications


Typical applications include blocking, coupling, decoupling, bypassing and interference suppression in low voltage applications such as automotive.
