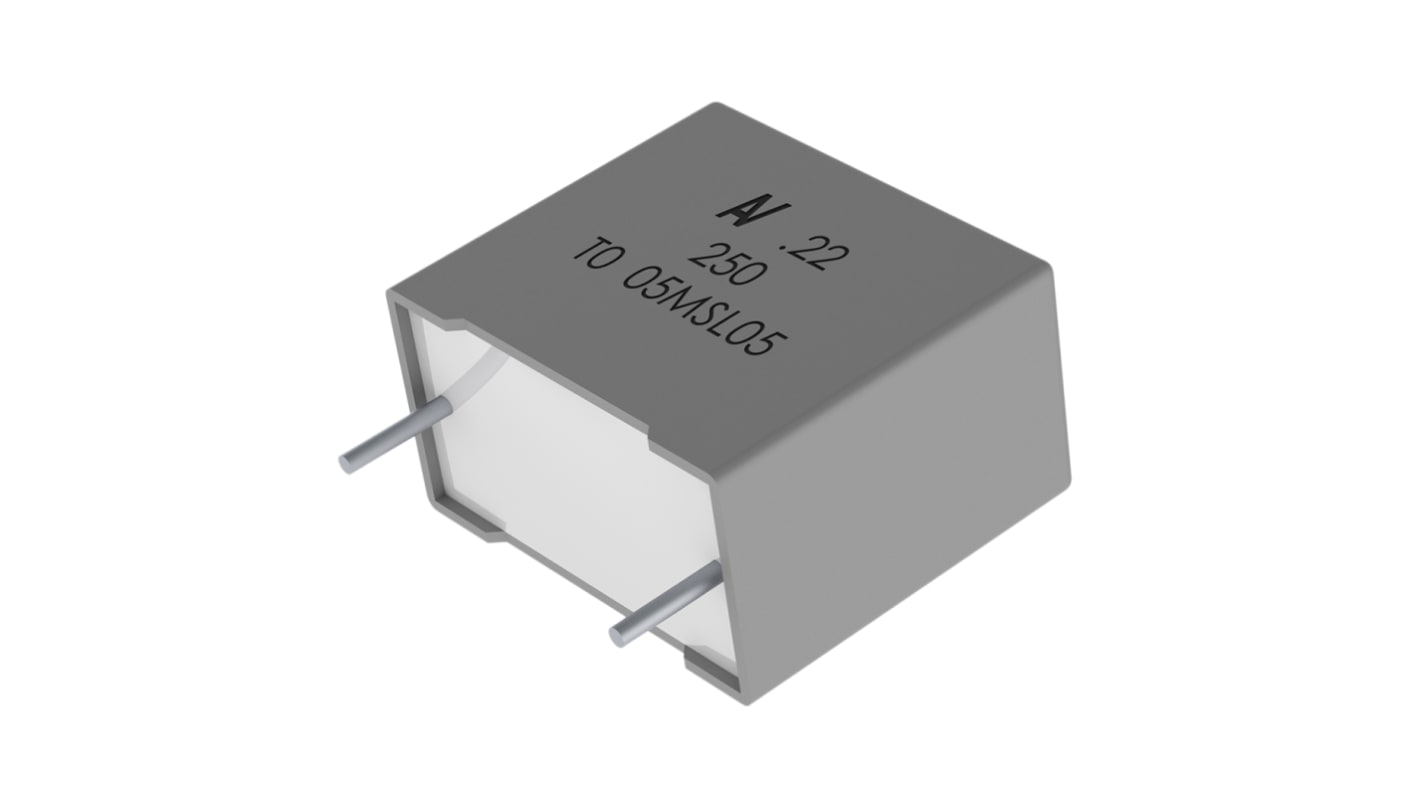

KEMET R60 Film Capacitor, ±5 %, 220 nF 630 V dc 220V ac, Through Hole
- RS Stock No.:
- 824-402
- Mfr. Part No.:
- R60PN3220AA30J
- Brand:
- KEMET
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£5.05
(exc. VAT)
£6.05
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 210 unit(s) ready to ship
- Plus 1,050 unit(s) shipping from 18 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 120 | £1.01 | £5.05 |
| 125 - 495 | £0.50 | £2.50 |
| 500 - 2495 | £0.426 | £2.13 |
| 2500 - 4995 | £0.346 | £1.73 |
| 5000 + | £0.324 | £1.62 |
*price indicative
- RS Stock No.:
- 824-402
- Mfr. Part No.:
- R60PN3220AA30J
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 220nF | |
| Product Type | Film Capacitor | |
| Mount Type | Through Hole | |
| Rated AC Voltage | 220V ac | |
| Tolerance | ±5 % | |
| Packaging | Bag | |
| Series | R60 | |
| Rated DC Voltage | 630V dc | |
| Lead Pitch | 22.5mm | |
| Automotive Standard | AEC-Q200 | |
| Application | Blocking, Bypassing, Coupling, Oscillator, Timing | |
| Lead Length | 25mm | |
| Minimum Operating Temperature | -55°C | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 105°C | |
| Width | 7mm | |
| Standards/Approvals | IEC 60286-2, RoHS, UL 94V-0 | |
| Height | 16mm | |
| Length | 26.5mm | |
| Package/Case | Plastic | |
| Lead Diameter | 0.8mm | |
| Dissipation Factor | 1% | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 220nF | ||
Product Type Film Capacitor | ||
Mount Type Through Hole | ||
Rated AC Voltage 220V ac | ||
Tolerance ±5 % | ||
Packaging Bag | ||
Series R60 | ||
Rated DC Voltage 630V dc | ||
Lead Pitch 22.5mm | ||
Automotive Standard AEC-Q200 | ||
Application Blocking, Bypassing, Coupling, Oscillator, Timing | ||
Lead Length 25mm | ||
Minimum Operating Temperature -55°C | ||
Pin Count 2 | ||
Maximum Operating Temperature 105°C | ||
Width 7mm | ||
Standards/Approvals IEC 60286-2, RoHS, UL 94V-0 | ||
Height 16mm | ||
Length 26.5mm | ||
Package/Case Plastic | ||
Lead Diameter 0.8mm | ||
Dissipation Factor 1% | ||
KEMET R60 Series
KEMET R60 Series polyester capacitors are designed with radial lead of tinned wire. The capacitors are electrically welded to the contact metal layer on the ends of the capacitor winding and covered in a self-extinguishing solvent resistant plastic case with thermosetting resin material meeting the UL 94V–0 requirements.
Features
Voltage range: 50 to 1000 V dc
Capacitance range: 0.001 μF – 150.0 μF
Lead spacing: 10.0 to 37.5 mm
Capacitance tolerance: ±5%, ±10%, ±20%
Climatic category: 55/105/56
Operating temperature range of -55˚C to +105˚C Tape and reel packaging in accordance with IEC 60286–2
Self-healing
Automotive (AEC–Q200) grades available up to pitch 22.5 mm
Applications
Typical applications include blocking, coupling, decoupling, bypassing and interference suppression in low voltage applications such as automotive.
