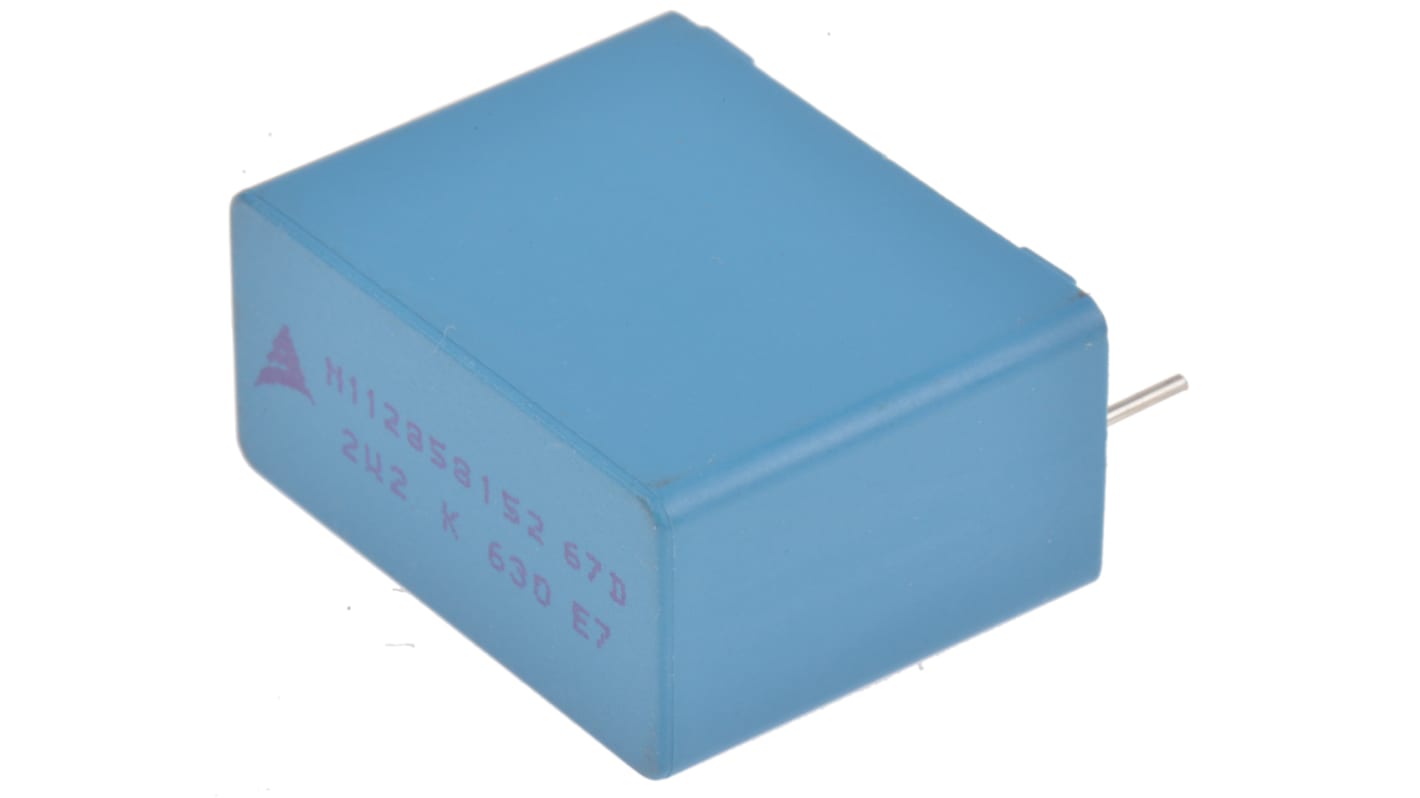

EPCOS B32674 Polypropylene Capacitor PP, 630 V dc, 800 V dc, ±10%, 2.2μF, Through Hole

View all Film Capacitors

Subtotal (1 bag of 240 units)*

£299.76

(exc. VAT)

£359.76

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 960 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
240 +£1.249£299.76

*price indicative

RS Stock No.:
172-5742
Mfr. Part No.:
B32674D6225K000
Brand:
EPCOS
Find similar products by selecting one or more attributes.
Select all

Brand

EPCOS

Capacitance

2.2µF

Voltage

630 V dc, 800 V dc

Mounting Type

Through Hole

Tolerance

±10%

Series

B32674

Lead Pitch

27.5mm

Length

31.5mm

Lead Length

6mm

Depth

15mm

Height

24.5mm

Equivalent Series Resistance

12.4mΩ

Dimensions

31.5 x 15 x 24.5mm

Terminal Type

Radial

Lead Diameter

0.8mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+105°C

Dissipation Factor

≤0.005 %@ 1kHz

B32674 ... B32678 Series Metallized Polypropylene Film Capacitors (MKP)


MKP DC link High Power Series

MKP DC link high power series
Excellent self-healing properties
Over-voltage capability
Optimized electrical contact
High frequency ripple current
High reliability
Long useful life
RoHS-compatible
Halogen-free capacitors available on request
Ideal for high ripple current modules in: Frequency converters; Industrial and high-end power supplies and Solar inverters


Radial 105°C


Encapsulated in self-extinguishing material meeting the requirements of UL94V-0
