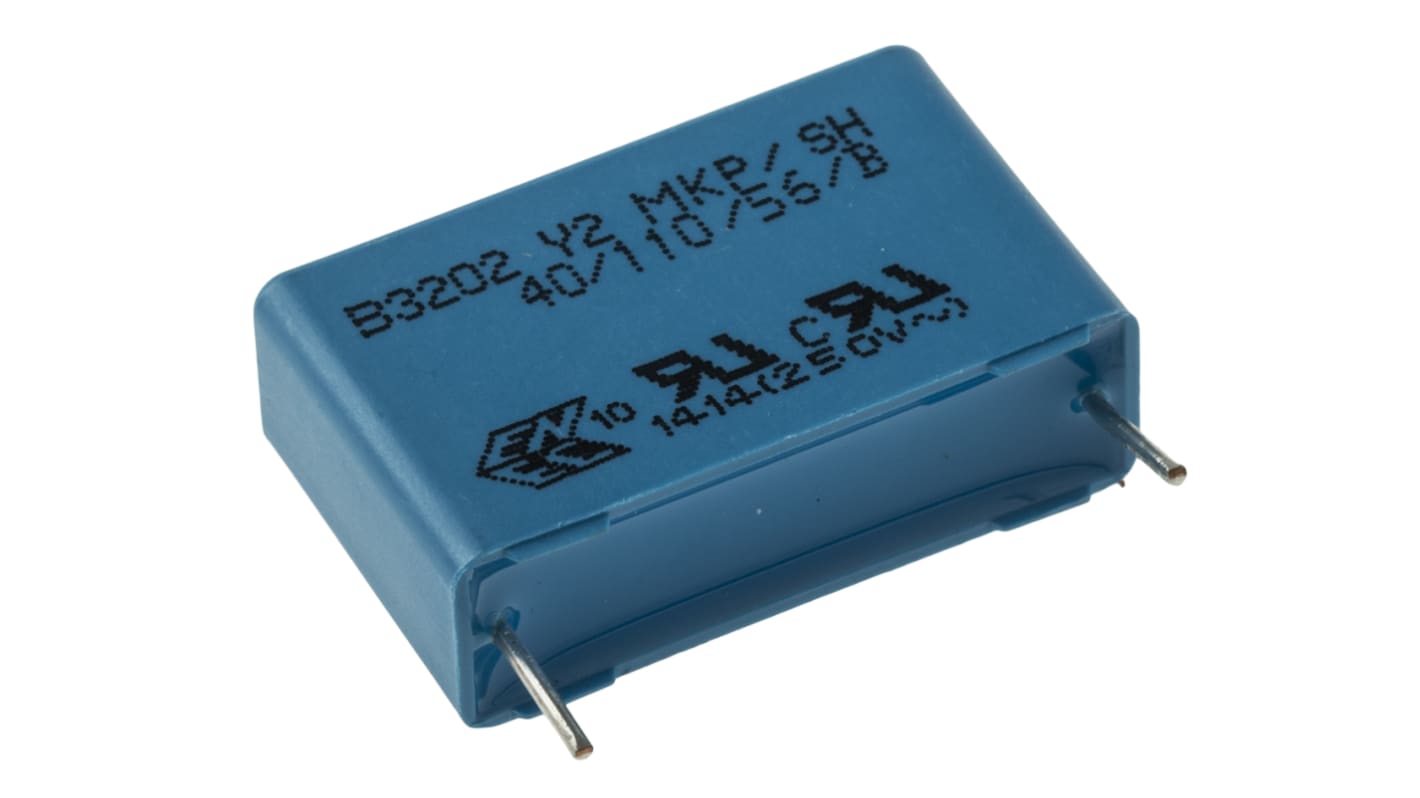

EPCOS B32023 Polypropylene Film Capacitor, 300V ac, ±20%, 100nF, Through Hole
- RS Stock No.:
- 172-5687
- Mfr. Part No.:
- B32023A3104M000
- Brand:
- EPCOS
7650 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 510)
£0.579
(exc. VAT)
£0.695
(inc. VAT)
| Units | Per unit | Per Bag* |
| 510 + | £0.579 | £295.29 |
| *price indicative | ||
- RS Stock No.:
- 172-5687
- Mfr. Part No.:
- B32023A3104M000
- Brand:
- EPCOS
Technical Reference
Legislation and Compliance
Product Details
B3202* Series
Polypropylene construction with a plastic case (UL 94 V-0) and epoxy resin sealing (UL 94 V-0)
Very small dimensions
Good self-healing properties
High voltage capability
Typical applications include Y2 class for interference suppression and “Line to ground” applications
Operating Temperature: -40 → 110 °C
Very small dimensions
Good self-healing properties
High voltage capability
Typical applications include Y2 class for interference suppression and “Line to ground” applications
Operating Temperature: -40 → 110 °C
Standards
EN 132400 /
IEC 60384-14 (300 V AC)
UL1414 (250 V AC)
UL1283 (400 V AC)
CSA C22.2 No.1 (250 V AC)
CSA C22.2 No.8 (400 V AC)
IEC 60384-14 (300 V AC)
UL1414 (250 V AC)
UL1283 (400 V AC)
CSA C22.2 No.1 (250 V AC)
CSA C22.2 No.8 (400 V AC)
Warning
Capacitors are designed for connecting directly across a mains supply but should NOT be used in positions where failure of a capacitor would expose anybody to electric shock.
Specifications
Attribute | Value |
|---|---|
| Capacitance | 100nF |
| Voltage | 300V ac |
| Mounting Type | Through Hole |
| Tolerance | ±20% |
| Series | B32023 |
| Lead Pitch | 22.5mm |
| Suppression Class | Y2 |
| Length | 26.5mm |
| Depth | 8.5mm |
| Height | 16.5mm |
| Dimensions | 26.5 x 8.5 x 16.5mm |
| Dielectric | Polypropylene |
| Terminal Type | Through Hole |
| Lead Diameter | 0.8mm |
| Maximum Operating Temperature | +110°C |
