KEMET PME271Y_300 Metallised Polypropylene Film Capacitor, 300 V ac, 1000 V dc, ±20%, 6.8nF, Through Hole

View all Film Capacitors
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
164-9629
Mfr. Part No.:
PME271YB4680MR30
Brand:
KEMET
Find similar products by selecting one or more attributes.
Select all

Brand

KEMET

Capacitance

6.8nF

Voltage

300 V ac, 1000 V dc

Mounting Type

Through Hole

Tolerance

±20%

Series

PME271Y_300

Lead Pitch

15.2mm

Suppression Class

Y2

Length

18.5mm

Depth

5.2mm

Lead Length

30mm

Height

10.5mm

Dimensions

18.5 x 5.2 x 10.5mm

Dielectric

Metallised Polypropylene

Terminal Type

Radial

Lead Diameter

0.8mm

Maximum Operating Temperature

+115°C

Dissipation Factor

1.3%

Minimum Operating Temperature

-40°C

COO (Country of Origin):
FI

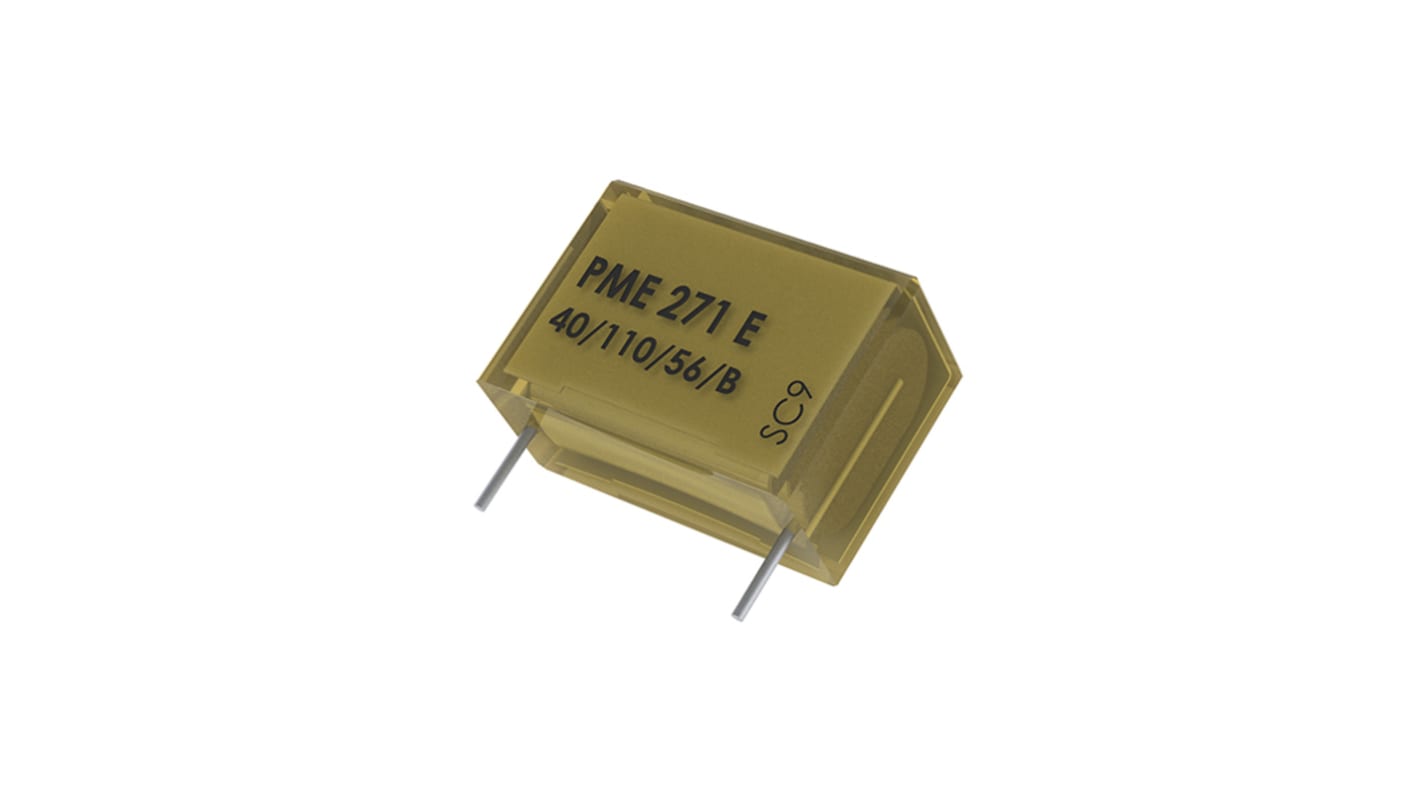

The PME271E Series consists of multilayer metallized paper, encapsulated and impregnated in self-extinguishing material.

Rated voltage: 300 VAC 50/60 Hz
Capacitance range: 0.01 – 0.22 μF
Lead spacing: 15.2 – 25.4 mm
Capacitance tolerance: ±20% for C ≤ 0.1 μF, ±10% for C > 0
Climatic category: 40/110/56/B, IEC 60068–1
Tape and reel packaging
Lead-free terminations
Operating temperature range of −40˚C to +110˚C
100% screening factory test at 2,150 VDC
Highest possible safety regarding active and passive
flammability
