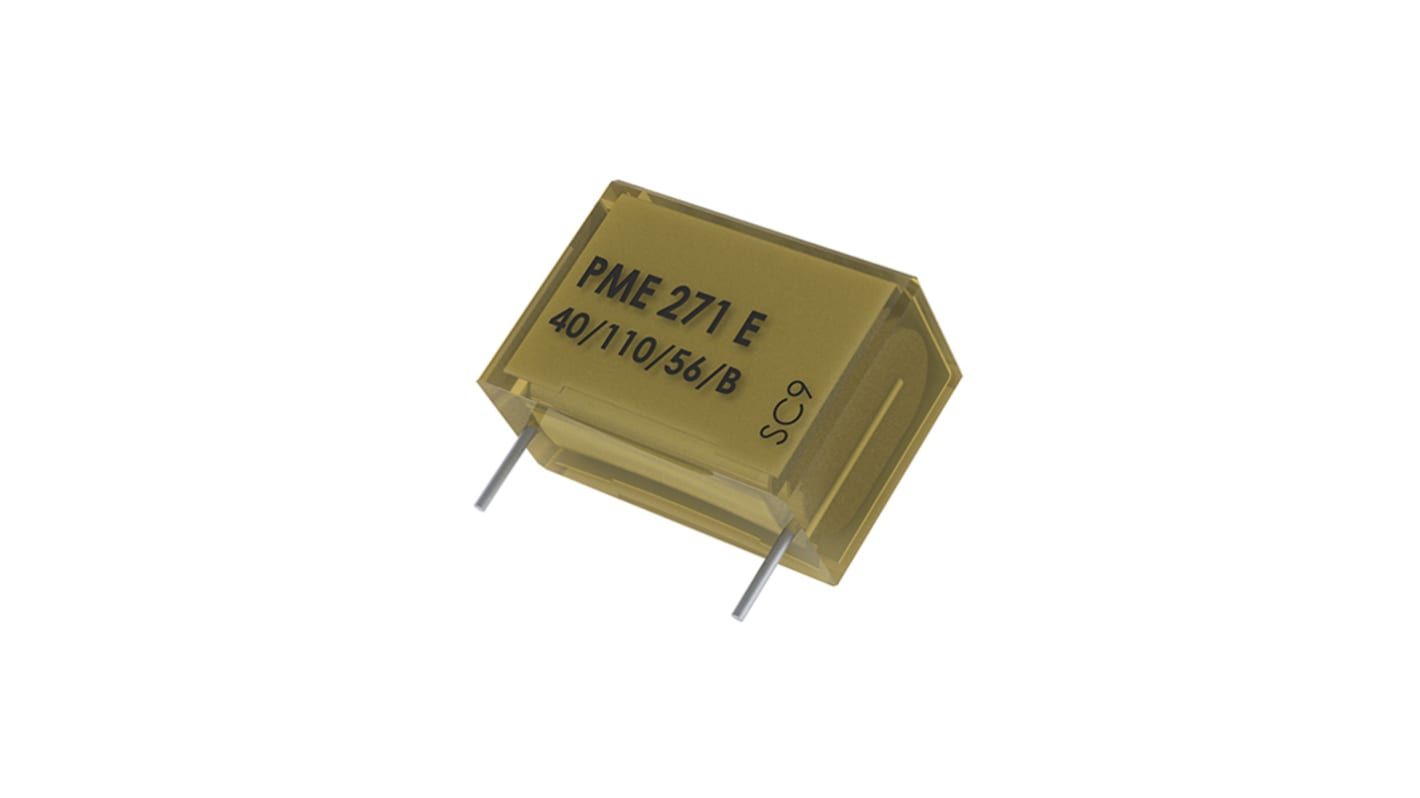

KEMET PME271Y_300 Metallised Polypropylene Film Capacitor, 300 V ac, 1000 V dc, ±20%, 100nF, Through Hole
- RS Stock No.:
- 165-0297
- Mfr. Part No.:
- PME271YE6100MR30
- Brand:
- KEMET
Bulk discount available
Subtotal (1 pack of 2 units)*
£4.62
(exc. VAT)
£5.54
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 2 left, ready to ship
- Final 26 unit(s) shipping from 10 October 2025
Units | Per unit | Per Pack* |
---|---|---|
2 - 8 | £2.31 | £4.62 |
10 - 48 | £1.97 | £3.94 |
50 - 98 | £1.735 | £3.47 |
100 - 248 | £1.495 | £2.99 |
250 + | £1.395 | £2.79 |
*price indicative
- RS Stock No.:
- 165-0297
- Mfr. Part No.:
- PME271YE6100MR30
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | KEMET | |
Capacitance | 100nF | |
Voltage | 300 V ac, 1000 V dc | |
Mounting Type | Through Hole | |
Tolerance | ±20% | |
Series | PME271Y_300 | |
Lead Pitch | 25.4mm | |
Suppression Class | Y2 | |
Length | 30.5mm | |
Depth | 12.1mm | |
Lead Length | 30mm | |
Height | 19mm | |
Dimensions | 30.5 x 12.1 x 19mm | |
Dielectric | Metallised Polypropylene | |
Terminal Type | Radial | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +115°C | |
Lead Diameter | 1mm | |
Dissipation Factor | 1.3% | |
Select all | ||
---|---|---|
Brand KEMET | ||
Capacitance 100nF | ||
Voltage 300 V ac, 1000 V dc | ||
Mounting Type Through Hole | ||
Tolerance ±20% | ||
Series PME271Y_300 | ||
Lead Pitch 25.4mm | ||
Suppression Class Y2 | ||
Length 30.5mm | ||
Depth 12.1mm | ||
Lead Length 30mm | ||
Height 19mm | ||
Dimensions 30.5 x 12.1 x 19mm | ||
Dielectric Metallised Polypropylene | ||
Terminal Type Radial | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +115°C | ||
Lead Diameter 1mm | ||
Dissipation Factor 1.3% | ||
- COO (Country of Origin):
- FI
The PME271E Series consists of multilayer metallized paper, encapsulated and impregnated in self-extinguishing material.
Rated voltage: 300 VAC 50/60 Hz
Capacitance range: 0.01 – 0.22 μF
Lead spacing: 15.2 – 25.4 mm
Capacitance tolerance: ±20% for C ≤ 0.1 μF, ±10% for C > 0
Climatic category: 40/110/56/B, IEC 60068–1
Tape and reel packaging
Lead-free terminations
Operating temperature range of −40˚C to +110˚C
100% screening factory test at 2,150 VDC
Highest possible safety regarding active and passive
flammability
Capacitance range: 0.01 – 0.22 μF
Lead spacing: 15.2 – 25.4 mm
Capacitance tolerance: ±20% for C ≤ 0.1 μF, ±10% for C > 0
Climatic category: 40/110/56/B, IEC 60068–1
Tape and reel packaging
Lead-free terminations
Operating temperature range of −40˚C to +110˚C
100% screening factory test at 2,150 VDC
Highest possible safety regarding active and passive
flammability
