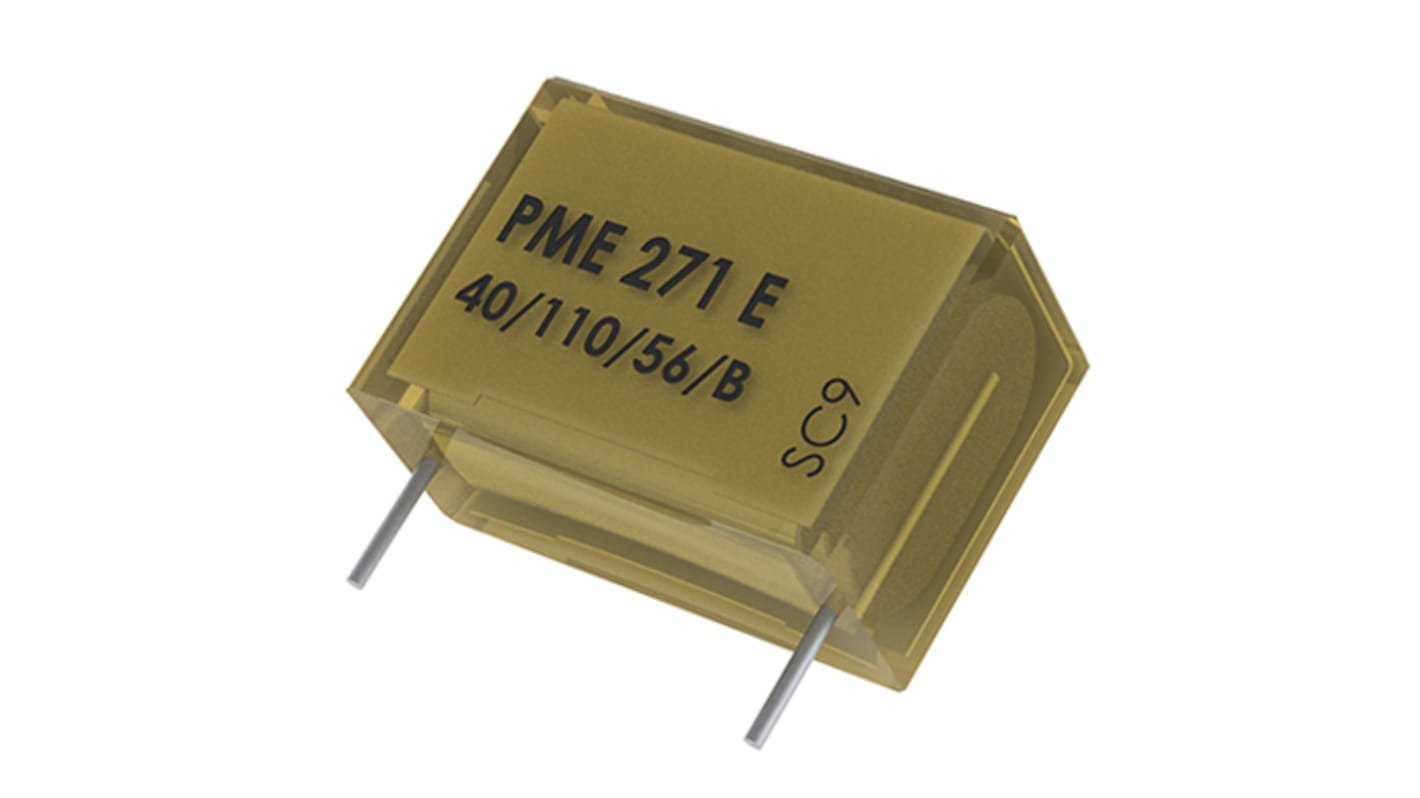

KEMET PME271E Metallised Paper Film Capacitor, 300 V ac, 630 V dc, ±10%, 220nF, Through Hole
- RS Stock No.:
- 164-9620
- Mfr. Part No.:
- PME271ED6220KR30
- Brand:
- KEMET
Available to back order for despatch 22/07/2024
Price Each (In a Bag of 400)
£2.13
(exc. VAT)
£2.56
(inc. VAT)
Units | Per unit | Per Bag* |
|---|---|---|
| 400 + | £2.13 | £852.00 |
*price indicative
- RS Stock No.:
- 164-9620
- Mfr. Part No.:
- PME271ED6220KR30
- Brand:
- KEMET
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FI
Product Details
The PME271E Series consists of multilayer metallized paper, encapsulated and impregnated in self-extinguishing material.
Rated voltage: 300 VAC 50/60 Hz
Capacitance range: 0.01 - 0.22 μF
Lead spacing: 15.2 - 25.4 mm
Capacitance tolerance: ±20% for C ≤ 0.1 μF, ±10% for C > 0
Climatic category: 40/110/56/B
Tape and reel packaging
Lead-free terminations
Operating temperature range of −40˚C to +110˚C
Highest possible safety regarding active and passive
flammability
Capacitance range: 0.01 - 0.22 μF
Lead spacing: 15.2 - 25.4 mm
Capacitance tolerance: ±20% for C ≤ 0.1 μF, ±10% for C > 0
Climatic category: 40/110/56/B
Tape and reel packaging
Lead-free terminations
Operating temperature range of −40˚C to +110˚C
Highest possible safety regarding active and passive
flammability
Specifications
Attribute | Value |
|---|---|
| Capacitance | 220nF |
| Voltage | 300 V ac, 630 V dc |
| Mounting Type | Through Hole |
| Tolerance | ±10% |
| Series | PME271E |
| Lead Pitch | 22.5mm |
| Suppression Class | X1 |
| Length | 27mm |
| Depth | 12mm |
| Lead Length | 30mm |
| Height | 12mm |
| Dimensions | 27 x 12 x 12mm |
| Dielectric | Metallised Paper |
| Terminal Type | Radial |
| Dissipation Factor | 1.3% |
| Minimum Operating Temperature | -40°C |
| Lead Diameter | 0.8mm |
| Maximum Operating Temperature | +110°C |
