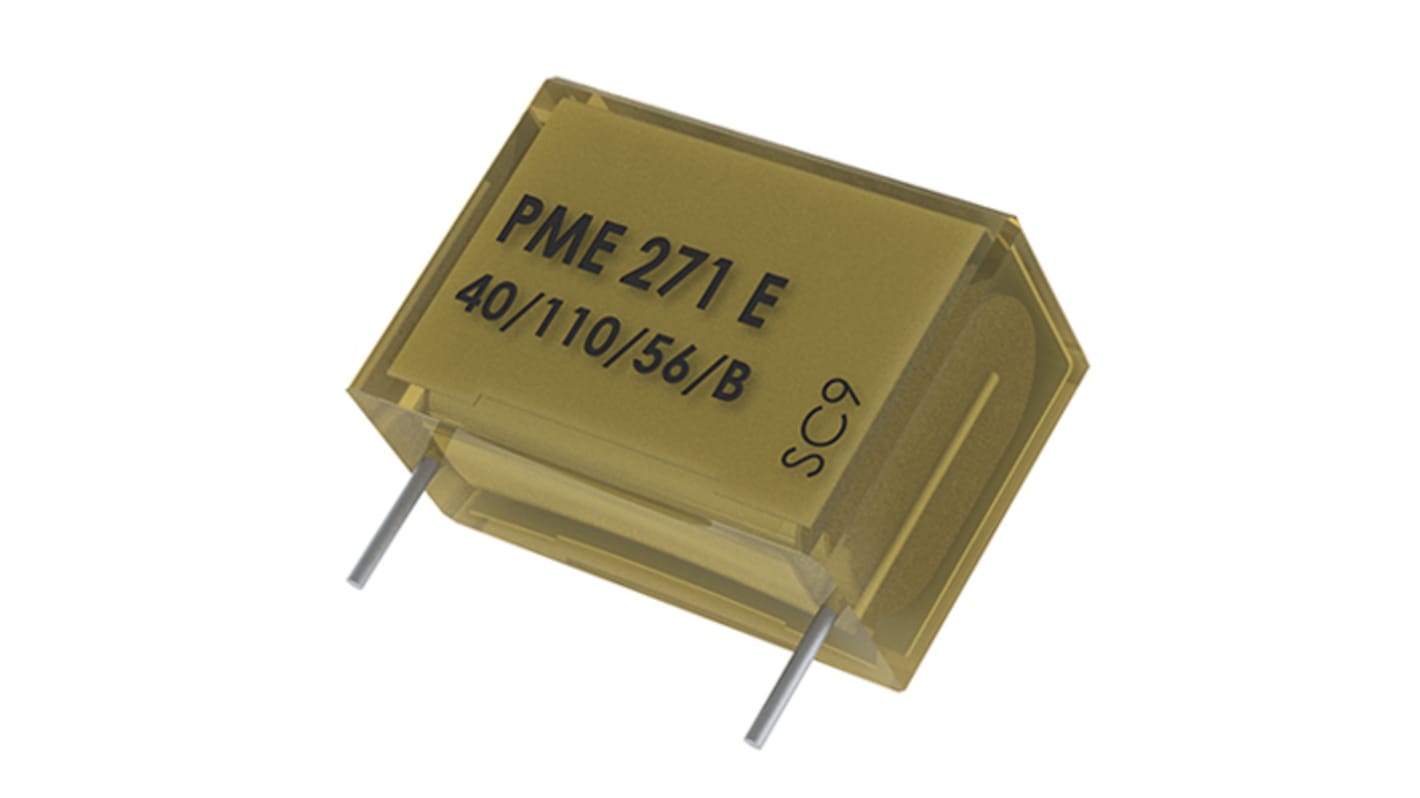

KEMET PME271M Metallised Paper Film Capacitor, 275 V ac, 630 V dc, ±20%, 100nF, Through Hole
- RS Stock No.:
- 164-9623
- Mfr. Part No.:
- PME271MB6100MR30
- Brand:
- KEMET
233 In stock - FREE next working day delivery available
Price Each (In a Bag of 1200)
£0.635
(exc. VAT)
£0.762
(inc. VAT)
Units | Per unit | Per Bag* |
|---|---|---|
| 1200 + | £0.635 | £762.00 |
*price indicative
- RS Stock No.:
- 164-9623
- Mfr. Part No.:
- PME271MB6100MR30
- Brand:
- KEMET
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FI
Product Details
The PME271M is constructed of multilayer metallized paper encapsulated and impregnated in self-extinguishing material.
Rated voltage:275 VAC 50/60 Hz
Capacitance range:0.001 - 0.6 μF
Lead spacing:10.2 - 25.4 mm
Capacitance tolerance:M=±20% (for C ≤ 0.1 μF),
K = ±10% (for C > 0.1 μF)
Climatic category:40/110/56
Tape and reel
Lead-free terminations
Operating temperature range of −40°C to +110°C
Capacitance range:0.001 - 0.6 μF
Lead spacing:10.2 - 25.4 mm
Capacitance tolerance:M=±20% (for C ≤ 0.1 μF),
K = ±10% (for C > 0.1 μF)
Climatic category:40/110/56
Tape and reel
Lead-free terminations
Operating temperature range of −40°C to +110°C
Specifications
Attribute | Value |
|---|---|
| Capacitance | 100nF |
| Voltage | 275 V ac, 630 V dc |
| Mounting Type | Through Hole |
| Tolerance | ±20% |
| Series | PME271M |
| Lead Pitch | 15.2mm |
| Suppression Class | X2 |
| Length | 18.5mm |
| Depth | 8.5mm |
| Lead Length | 30mm |
| Height | 8.5mm |
| Dimensions | 18.5 x 8.5 x 8.5mm |
| Dielectric | Metallised Paper |
| Terminal Type | Radial |
| Dissipation Factor | 1.3% |
| Lead Diameter | 0.8mm |
| Maximum Operating Temperature | +110°C |
| Minimum Operating Temperature | -40°C |
