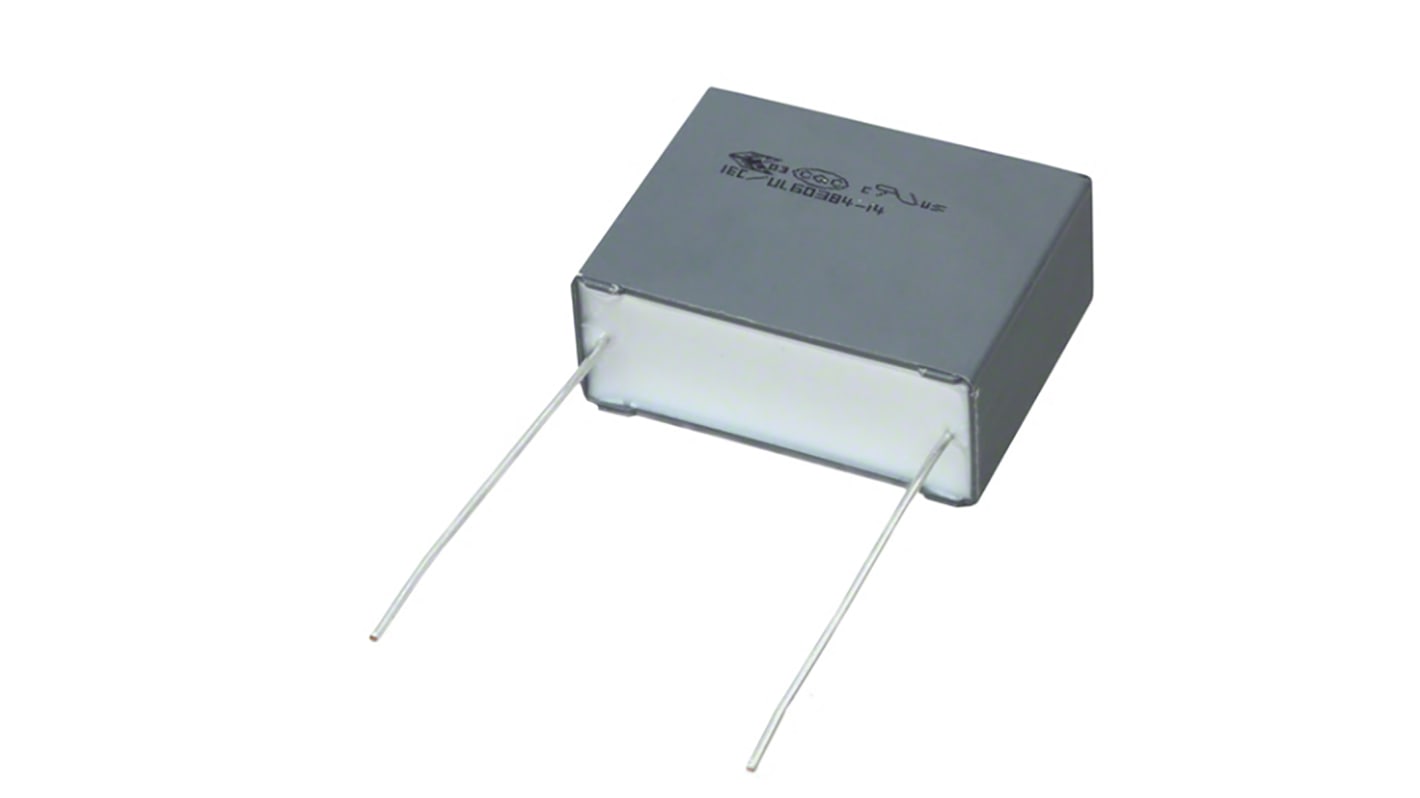

KEMET F863 Metallised Polypropylene Film Capacitor, 310V ac, ±10%, 330nF, Through Hole

View all Film Capacitors
Bulk discount available

Subtotal (1 tape of 440 units)*

£87.56

(exc. VAT)

£105.16

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 440 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tape*
440 - 440£0.199£87.56
880 - 880£0.169£74.36
1320 - 1320£0.149£65.56
1760 +£0.142£62.48

*price indicative

RS Stock No.:
144-7730
Mfr. Part No.:
F863BN334K310R
Brand:
KEMET
Find similar products by selecting one or more attributes.
Select all

Brand

KEMET

Capacitance

330nF

Voltage

310V ac

Mounting Type

Through Hole

Tolerance

±10%

Series

F863

Automotive Standard

AEC-Q200

Lead Pitch

15mm

Suppression Class

X2

Length

18mm

Depth

8.5mm

Lead Length

18.5mm

Height

14.5mm

Dimensions

18 x 8.5 x 14.5mm

Dielectric

Metallised Polypropylene

Terminal Type

Radial

Minimum Operating Temperature

-40°C

Package/Case

Ammo

Maximum Operating Temperature

+110°C

Dissipation Factor

0.2%

Lead Diameter

0.6mm

COO (Country of Origin):
CN
The F863 Series is constructed of metallized polypropylene film encapsulated with self-extinguishing resin in a box Material recognized by UL 94 V-0. The F863 Series is ideal for harsh environmental conditions and meets the demanding Automotive Electronics Council's AEC-Q200 qualification requirements.

Approvals: ENEC, UL, cUL, CQC
Lead spacing: 15.0 - 37.5 mm
Capacitance tolerance: ±20%, ±10%
RoHS Compliant and lead-free terminations
Operating temperature range of −40°C to +110°C
100% screening factory test at 1,900 VDC
