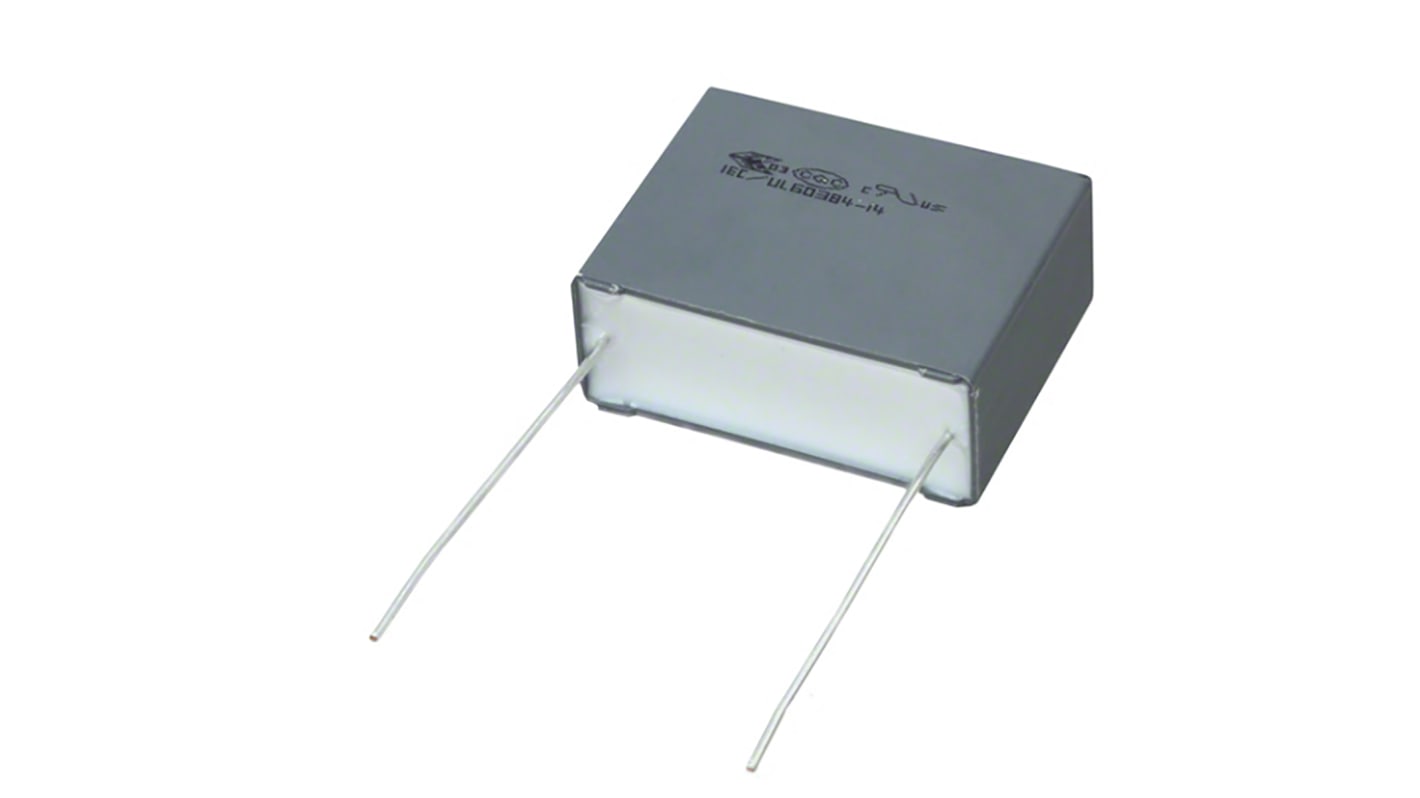

KEMET F863 Metallised Polypropylene Film Capacitor, 310V ac, ±10%, 220nF, Through Hole

View all Film Capacitors
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
144-7729
Mfr. Part No.:
F863BK224K310R
Brand:
KEMET
Find similar products by selecting one or more attributes.
Select all

Brand

KEMET

Capacitance

220nF

Voltage

310V ac

Mounting Type

Through Hole

Tolerance

±10%

Series

F863

Automotive Standard

AEC-Q200

Lead Pitch

15mm

Suppression Class

X2

Length

18mm

Depth

7.5mm

Lead Length

18.5mm

Height

13.5mm

Dimensions

18 x 7.5 x 13.5mm

Dielectric

Metallised Polypropylene

Terminal Type

Radial

Package/Case

Ammo

Dissipation Factor

0.2%

Minimum Operating Temperature

-40°C

Lead Diameter

0.6mm

Maximum Operating Temperature

+110°C

COO (Country of Origin):
CN
The F863 Series is constructed of metallized polypropylene film encapsulated with self-extinguishing resin in a box Material recognized by UL 94 V-0. The F863 Series is ideal for harsh environmental conditions and meets the demanding Automotive Electronics Council's AEC-Q200 qualification requirements.

Approvals: ENEC, UL, cUL, CQC
Lead spacing: 15.0 - 37.5 mm
Capacitance tolerance: ±20%, ±10%
RoHS Compliant and lead-free terminations
Operating temperature range of −40°C to +110°C
100% screening factory test at 1,900 VDC
