Vishay HDMKP Polypropylene Power Electronic Capacitors (PEC), 2000V dc, ±5%, 390μF, Plug In
- RS Stock No.:
- 135-3621
- Distrelec Article No.:
- 302-13-266
- Mfr. Part No.:
- HDMKP 2.0-390 I
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£459.54
(exc. VAT)
£551.45
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 4 unit(s) shipping from 23 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £459.54 |
5 + | £390.62 |
*price indicative
- RS Stock No.:
- 135-3621
- Distrelec Article No.:
- 302-13-266
- Mfr. Part No.:
- HDMKP 2.0-390 I
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vishay | |
Capacitance | 390µF | |
Voltage | 2000V dc | |
Mounting Type | Plug In | |
Tolerance | ±5% | |
Series | HDMKP | |
Lead Pitch | 50mm | |
Lead Length | 16mm | |
Height | 235mm | |
Equivalent Series Resistance | 4mΩ | |
Dimensions | 235 x 116mm | |
Dielectric | Polypropylene | |
Terminal Type | Screw | |
Maximum Operating Temperature | +80°C | |
Dissipation Factor | 2% | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Vishay | ||
Capacitance 390µF | ||
Voltage 2000V dc | ||
Mounting Type Plug In | ||
Tolerance ±5% | ||
Series HDMKP | ||
Lead Pitch 50mm | ||
Lead Length 16mm | ||
Height 235mm | ||
Equivalent Series Resistance 4mΩ | ||
Dimensions 235 x 116mm | ||
Dielectric Polypropylene | ||
Terminal Type Screw | ||
Maximum Operating Temperature +80°C | ||
Dissipation Factor 2% | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CZ

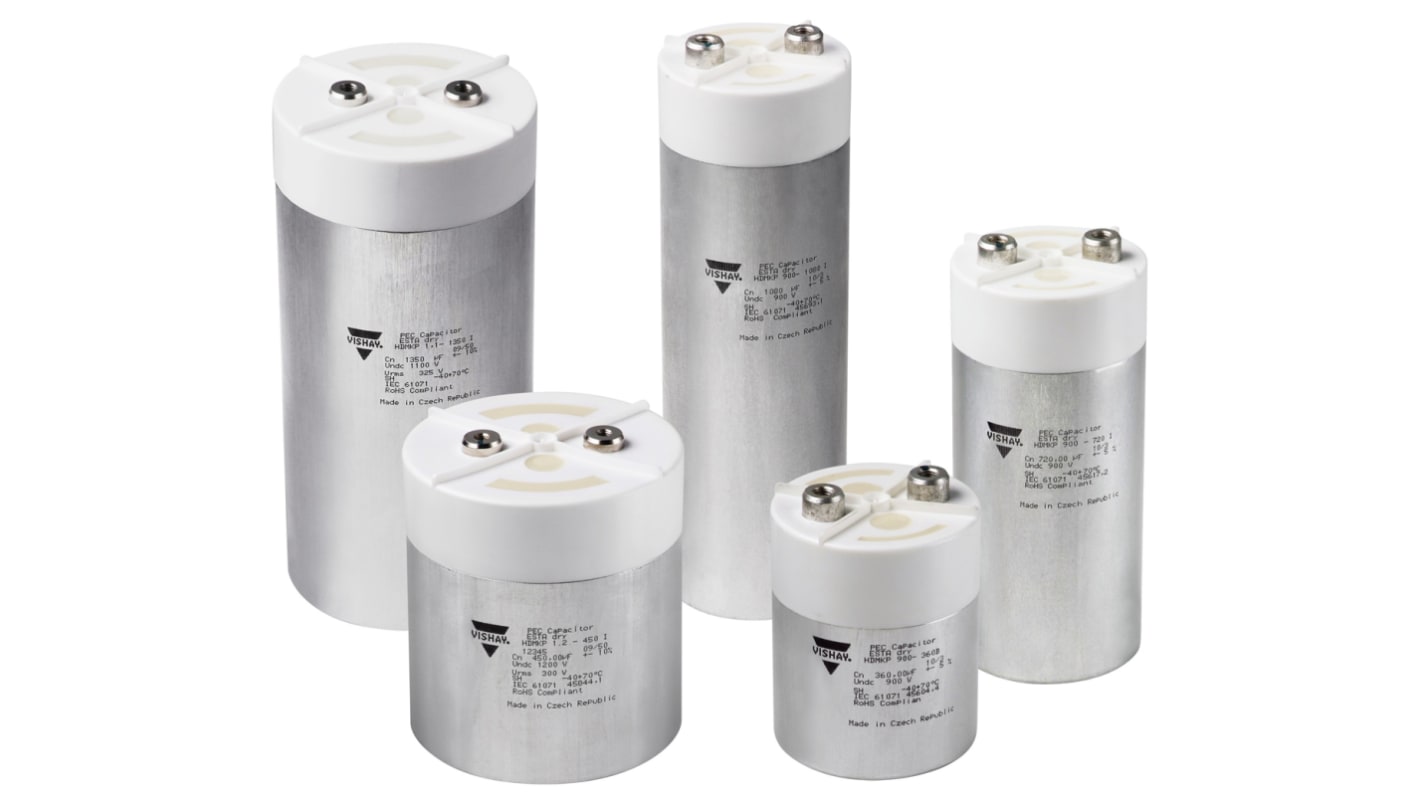

Vishay HDMKP Series Capacitors for Power Electronics (PEC) Cylindrical
Vishay HDMKP SeriesCylindrecal Capacitors for power electronics (PEC) feature High RMS current rating: Up to 120 A and High impulse current rating: Up to 25 kA. These PEC Capacitors are highly reliable and good life expectancy and withstand heavy-duty shock and vibration.
Applications
DC linking in low-power drives
DC linking and DC filtering in industry and traction convertors
DC linking in wind turbine converters
DC linking in low-power drives
Impulse discharge capacitors for magnetizing and welding
DC linking and DC filtering in industry and traction convertors
DC linking in wind turbine converters
DC linking in low-power drives
Impulse discharge capacitors for magnetizing and welding
