Vishay HDMKP Polypropylene Power Electronic Capacitors (PEC), 2000V dc, ±5%, 390μF, Plug In
- RS Stock No.:
- 135-3607
- Mfr. Part No.:
- HDMKP 2.0-390 I
- Brand:
- Vishay
Bulk discount available
Subtotal (1 box of 4 units)*
£1,411.492
(exc. VAT)
£1,693.792
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 4 - 16 | £352.873 | £1,411.49 |
| 20 - 36 | £331.70 | £1,326.80 |
| 40 + | £310.528 | £1,242.11 |
*price indicative
- RS Stock No.:
- 135-3607
- Mfr. Part No.:
- HDMKP 2.0-390 I
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 390µF | |
| Voltage | 2000V dc | |
| Mounting Type | Plug In | |
| Tolerance | ±5% | |
| Series | HDMKP | |
| Lead Pitch | 50mm | |
| Lead Length | 16mm | |
| Equivalent Series Resistance | 4mΩ | |
| Height | 235mm | |
| Dimensions | 235 x 116mm | |
| Dielectric | Polypropylene | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -40°C | |
| Dissipation Factor | 2% | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 390µF | ||
Voltage 2000V dc | ||
Mounting Type Plug In | ||
Tolerance ±5% | ||
Series HDMKP | ||
Lead Pitch 50mm | ||
Lead Length 16mm | ||
Equivalent Series Resistance 4mΩ | ||
Height 235mm | ||
Dimensions 235 x 116mm | ||
Dielectric Polypropylene | ||
Terminal Type Screw | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -40°C | ||
Dissipation Factor 2% | ||
- COO (Country of Origin):
- CZ

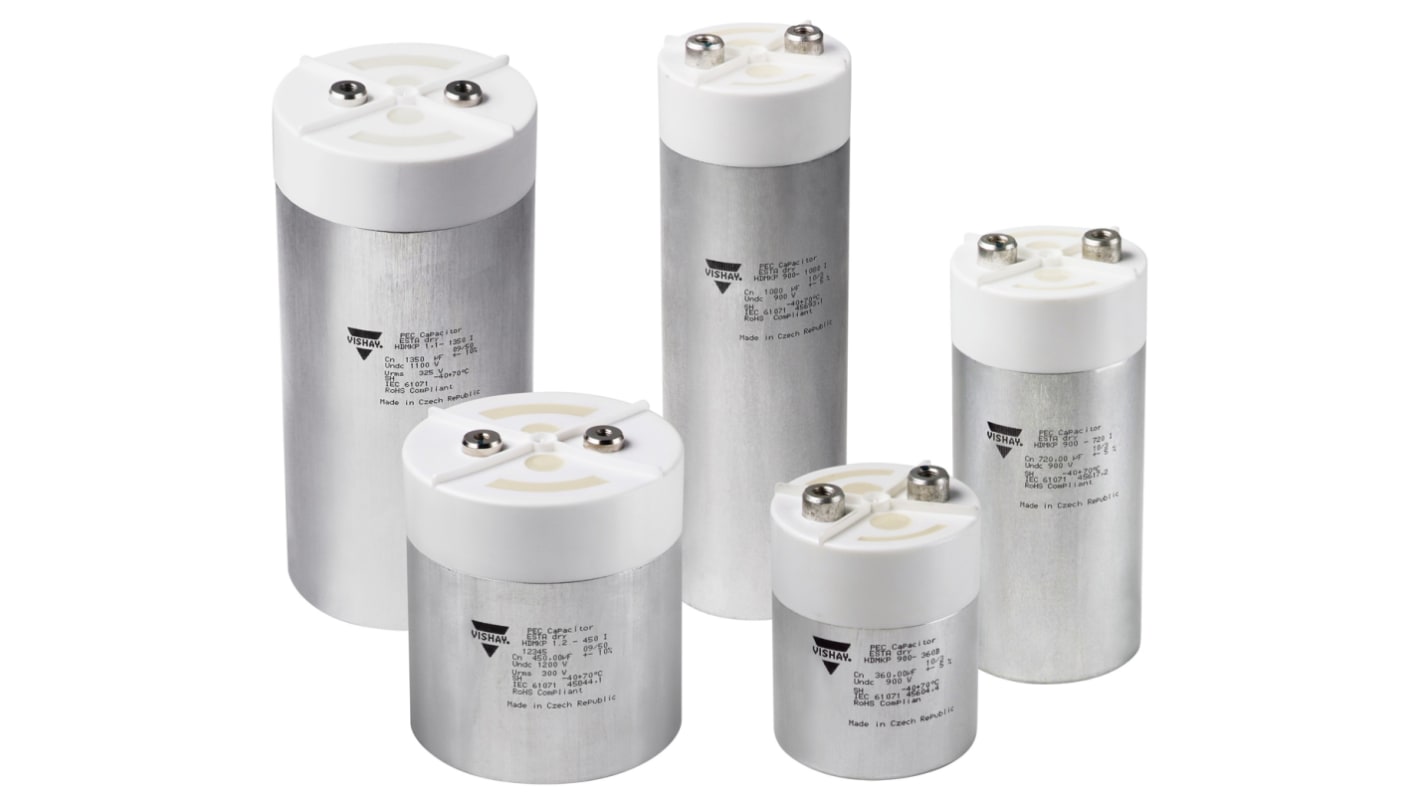

Vishay HDMKP Series Capacitors for Power Electronics (PEC) Cylindrical
Vishay HDMKP SeriesCylindrecal Capacitors for power electronics (PEC) feature High RMS current rating: Up to 120 A and High impulse current rating: Up to 25 kA. These PEC Capacitors are highly reliable and good life expectancy and withstand heavy-duty shock and vibration.
Applications
DC linking in low-power drives
DC linking and DC filtering in industry and traction convertors
DC linking in wind turbine converters
DC linking in low-power drives
Impulse discharge capacitors for magnetizing and welding
DC linking and DC filtering in industry and traction convertors
DC linking in wind turbine converters
DC linking in low-power drives
Impulse discharge capacitors for magnetizing and welding
